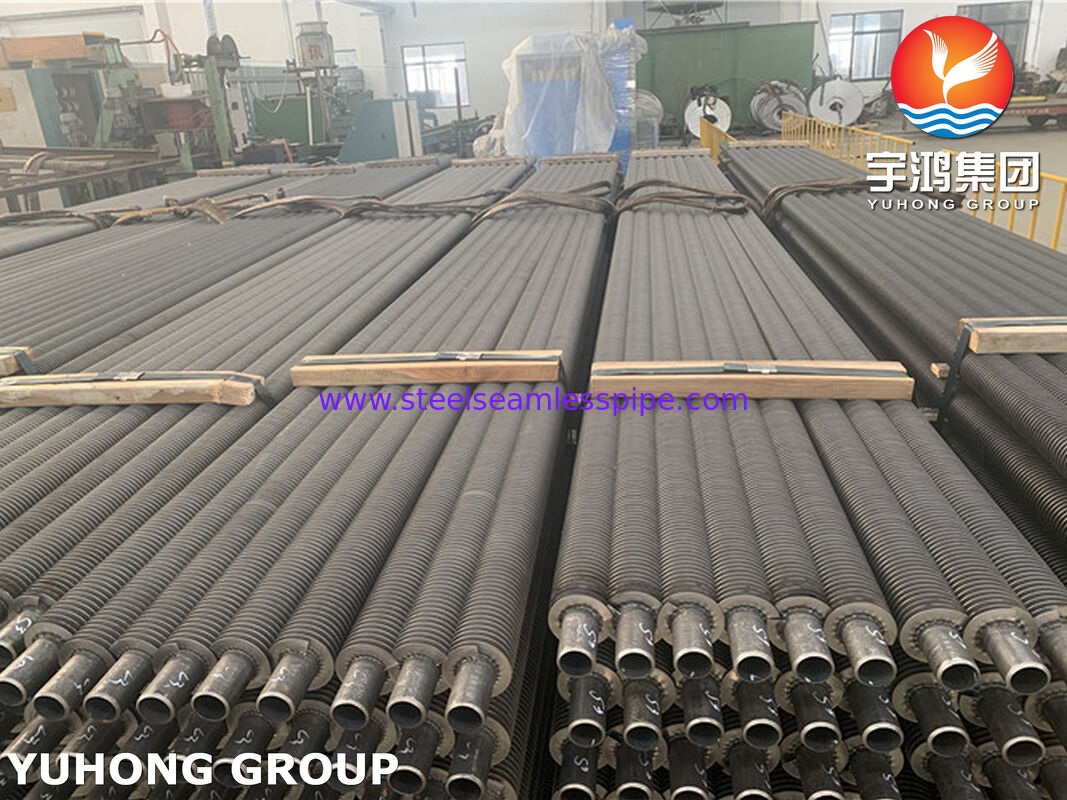

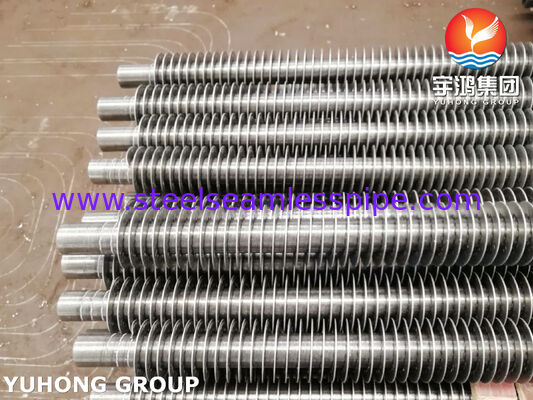

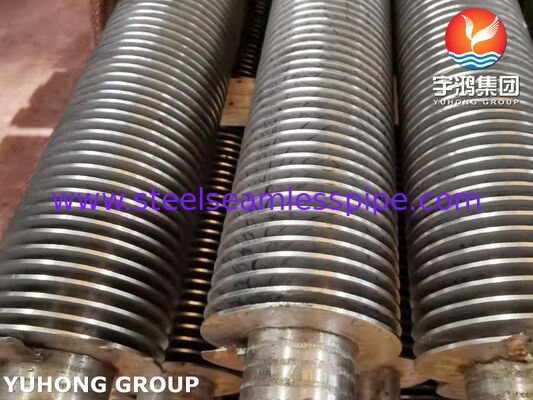

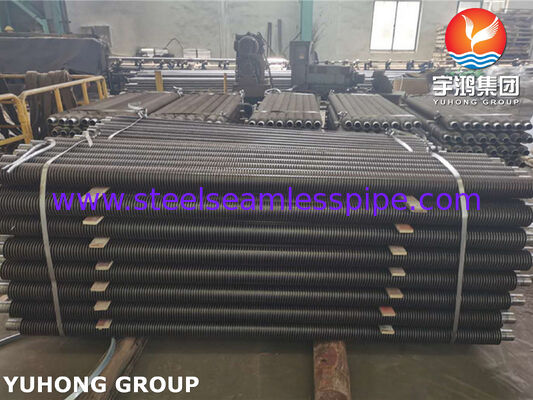

ASTM A213 TP316 Spiral Finned Tubes for Economizers
Product Overview
ASTM A213 TP316 spiral finned tubes are high-performance heat transfer components designed for economizer systems, waste heat recovery units, boilers, and industrial heat exchangers. Manufactured from premium austenitic stainless steel ASTM A213 TP316, these finned tubes combine excellent corrosion resistance, superior thermal conductivity, and long-term mechanical stability under demanding operating conditions.
The spiral fin design significantly increases the external heat transfer surface area compared with plain tubes, improving heat recovery efficiency while reducing equipment size and operational costs. TP316 stainless steel provides enhanced resistance against chloride corrosion, oxidation, and high-temperature environments due to its molybdenum (Mo) content, making these tubes suitable for power generation, chemical processing, marine, petrochemical, and industrial heating applications.
Our ASTM A213 TP316 spiral finned tubes are manufactured according to strict international standards, with precise dimensional control, reliable welding performance, and comprehensive inspection procedures to ensure consistent quality and extended service life.
Product Features
1. Superior Corrosion Resistance
ASTM A213 TP316 stainless steel contains molybdenum, which improves resistance to pitting and crevice corrosion, especially in environments containing chlorides, acids, and industrial pollutants.
2. Enhanced Heat Transfer Performance
The spiral fin structure increases the effective heat exchange area, improving heat transfer efficiency and allowing economizers to recover more waste heat from exhaust gases.
3. High Temperature Stability
TP316 material maintains excellent mechanical strength and corrosion resistance during continuous operation at elevated temperatures, ensuring reliable performance in boiler and heat recovery applications.
4. Long Service Life
High-quality raw materials, controlled manufacturing processes, and strict inspection procedures help minimize tube deformation, corrosion damage, and premature failure.
Typical Applications
ASTM A213 TP316 spiral finned tubes are widely used in:
- Boiler economizers
- Waste heat recovery systems
- Industrial boilers
- Power plant heat exchangers
- Chemical processing equipment
- Petrochemical heating systems
- Refinery heat recovery units
- Marine exhaust gas economizers
- Stainless steel heat exchanger systems
Standard Size Range
The dimensions of spiral finned tubes can be customized according to customer requirements. Typical manufacturing ranges are listed below:
| Item |
Standard Range |
| Base Tube Material |
ASTM A213 TP316 Stainless Steel |
| Tube Outside Diameter |
15 mm – 76 mm |
| Tube Wall Thickness |
1.5 mm – 8 mm |
| Tube Length |
Up to 18,000 mm |
| Fin Height |
5 mm – 30 mm |
| Fin Thickness |
0.3 mm – 1.5 mm |
| Fin Pitch |
2.0 mm – 10 mm |
| Fin Type |
Spiral wound / Helically finned |
| Fin Material |
TP316 Stainless Steel or specified alloy |
| Manufacturing Standard |
ASTM A213 / Customer specification |
Note: Special dimensions, fin configurations, and surface treatments are available for different economizer designs.
Manufacturing Process
The production process of ASTM A213 TP316 spiral finned tubes includes:
- Raw Material Inspection
Stainless steel tubes and fin strips are inspected for chemical composition, dimensions, and surface quality.
- Tube Preparation
Tubes are cleaned and prepared to ensure proper bonding between the tube surface and fin material.
- Spiral Fin Welding
The fin strip is continuously wound around the tube using controlled welding technology to achieve strong mechanical bonding and stable heat transfer performance.
- Heat Treatment (When Required)
Heat treatment may be applied according to customer specifications to optimize material structure and stress relief.
- Surface Finishing
Tubes are cleaned, polished, or treated according to application requirements.
- Final Inspection
Each tube undergoes dimensional inspection and performance testing before shipment.
ASTM A213 TP316 Chemical Composition
The chemical composition requirements of ASTM A213 TP316 stainless steel are as follows:
| Element |
Composition (%) |
| Carbon (C) |
≤ 0.08 |
| Silicon (Si) |
≤ 0.75 |
| Manganese (Mn) |
≤ 2.00 |
| Phosphorus (P) |
≤ 0.045 |
| Sulfur (S) |
≤ 0.030 |
| Chromium (Cr) |
16.0 – 18.0 |
| Nickel (Ni) |
10.0 – 14.0 |
| Molybdenum (Mo) |
2.00 – 3.00 |
| Iron (Fe) |
Balance |
ASTM A213 TP316 Mechanical Properties
Typical mechanical requirements for ASTM A213 TP316 seamless tubes:
| Property |
Requirement |
| Tensile Strength |
≥ 515 MPa |
| Yield Strength (0.2% Offset) |
≥ 205 MPa |
| Elongation |
≥ 35% |
| Hardness (Typical) |
≤ 217 HB |
| Density |
Approx. 8.0 g/cm³ |
These mechanical properties provide excellent strength, ductility, and durability for high-temperature heat exchanger applications.
Testing and Quality Inspection
To ensure reliable operation in demanding environments, ASTM A213 TP316 spiral finned tubes undergo comprehensive testing, including:
Chemical Composition Analysis
- Optical Emission Spectrometer (OES) testing
- Verification of alloy elements including Cr, Ni, and Mo
Mechanical Testing
- Tensile testing
- Yield strength testing
- Elongation testing
- Hardness testing
Non-Destructive Testing (NDT)
- Hydrostatic Test: Ensures pressure resistance and leak-free performance
- Eddy Current Testing: Detects surface and subsurface defects
- Ultrasonic Testing (UT): Identifies internal imperfections
- Liquid Penetrant Testing (PT): Checks surface cracks and welding defects
Dimensional Inspection
- Tube outside diameter measurement
- Wall thickness verification
- Fin height and pitch inspection
- Length and straightness inspection
Surface Quality Inspection
- Visual examination
- Weld quality inspection
- Surface cleanliness assessment
Why Choose ASTM A213 TP316 Spiral Finned Tubes?
- Manufactured from corrosion-resistant TP316 stainless steel
- Increased heat transfer efficiency through spiral fin design
- Suitable for high-temperature and corrosive environments
- Customizable dimensions for various economizer systems
- Strict compliance with ASTM A213 requirements
- Reliable performance with extended operational lifespan
