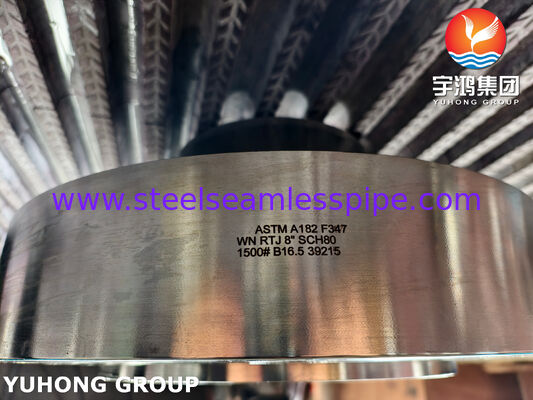

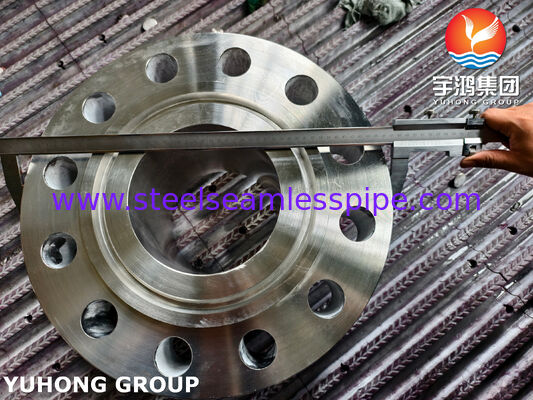

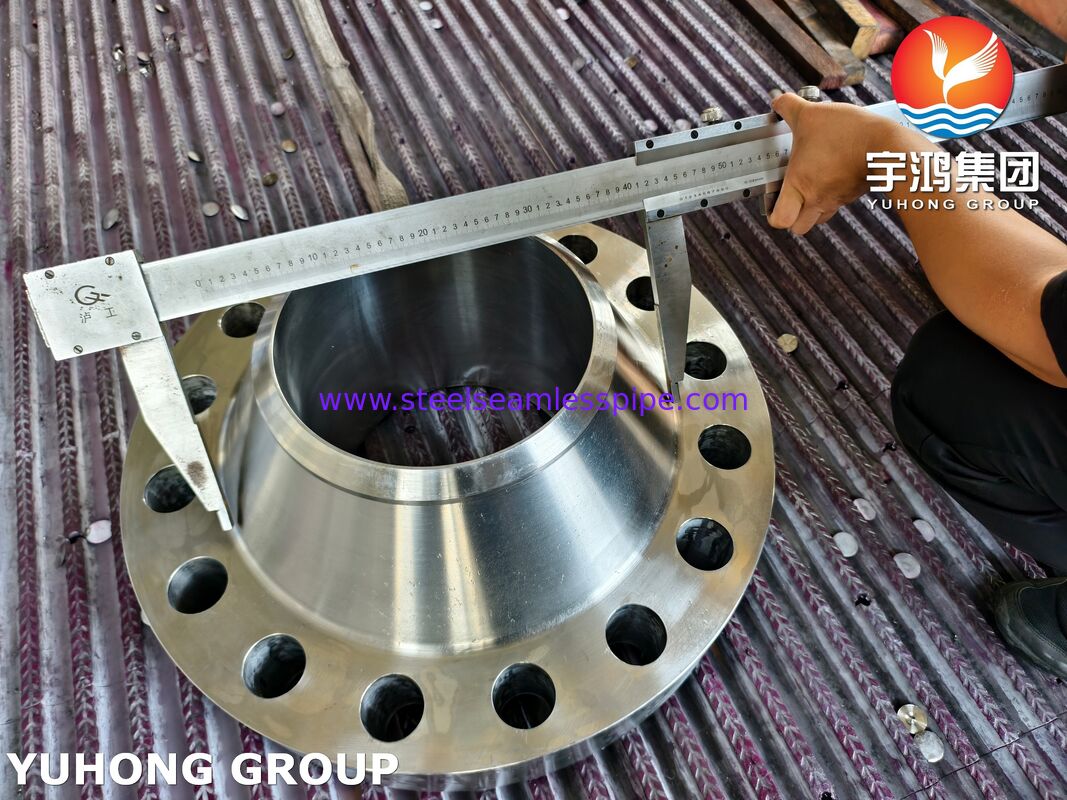

ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange

ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange

  • ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
  • ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
  • ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
  • ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A182 F347 Stainless Steel Weld Neck Flange
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Ply-wooden Case / pallet
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (346)
Stainless Steel Seamless Tube (343)
Duplex Stainless Steel Pipe (137)
Duplex Stainless Steel Tube (39)
Needle Tube (171)
Fin Tube (744)
Heat Exchanger (35)
Heat Exchanger Tube (475)
Heat Exchanger Tube Bundle (54)
Heat Exchanger Tubesheet (129)
Heat Exchanger Baffle (39)
Air Cooler (14)
Pressure Vessel (4)
Stainless Steel Welded Pipe (62)
Stainless Steel Welded Tube (134)
Nickel Alloy Pipe (276)
Nickel Alloy Tube (108)
Copper Alloy Tube (258)
Alloy Steel Tube (220)
Titanium Tube (21)
Bright Annealed Tube (166)
Boiler Tube (160)
Steel Fitting (876)
Steel Flange (676)
Others (412)
Cladding Parts (9)
Detailed Product Description
Dimensions: ANSI Flange, ASME Flange, BS Flange, DIN Flanges, EN Flange Standard: B16.5, B16.47 Series A, Series B
Material: F347 / UNS 34700 / EN 1.4550 Size: 1/2" To 48"
Thickness: Sch5S To Sch.XXS Class: 150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Type: Weld Neck Flange Surface: RTJ
Packaging: Plywood Case /Pallet
High Light: ASTM A182 F347 Stainless Steel Flange , Weld Neck Flange, WNRTJ Forged Flange

ASTM A182 F347 / 1.4450 Stainless Steel Flange UNS S34700 Forged WN RTJ Flange


ASTM A182 F347 / 1.4550 Stainless Steel Weld Neck RTJ Flange is a high-strength, forged steel pipe connector designed for permanent attachment to piping systems via a full-penetration butt weld. It features a specialized metal-sealing grooved face and is manufactured from a niobium-stabilized austenitic stainless steel, making it specifically engineered for severe high-temperature, high-pressure, and corrosive service environments.




How it works?
When this flange is welded to a pipe (WN) and bolted to an opposing RTJ flange with a metal ring gasket placed in the grooves, the tightening of the stud bolts forces the two flanges together. The gasket is plastically deformed into the groove walls, creating a leak-proof seal that relies solely on the compressive strength of the metal, rather than on soft gasket fillers.
This makes the definition of its primary purpose: a permanent, fatigue-resistant pipeline joint that maintains a positive, blowout-proof metal seal under extreme fluctuating temperatures and pressures, while resisting weld-decay corrosion due to its niobium-stabilized chemistry.



Equivalent Grade of ASTM A182 F347 / EN 1.4550 Stainless Steel Weld Neck Flange Forged WNRTJ Flange
GB
JIS
ASTM
GOST
EN
06Cr18Ni11Nb
SUS 347
F347 / S34700
08Х18Н12Б
1.4550
X6CrNiNb18-10



Chemical Composition of ASTM A182 F347 / EN 1.4550 Stainless Steel Weld Neck Flange Forged WNRTJ Flange


Grade/
Element

CrNiCMnPSSiCb&TaFe
34717.00 min.-19.00 max.9.00 min.-13.00 max.0.082.000.040.030.7510 x (C + N) min.-1.00 max.Balance





Mechanical properties of ASTM A182 F347 / EN 1.4550 Stainless Steel Weld Neck Flange Forged WNRTJ Flange

Yield Strength
0.2% Offset		Ultimate Tensile
Strength		Elongation
in 2 in.		Hardness
psi (min.)(MPa)psi (min.)(MPa)% (min.)(max.)
30,00020575,00051540201 Brinell




Typical Applications (Industries)
Due to its high-temperature stability and RTJ sealing reliability, this flange is widely used in:

  • Oil & Gas Upstream/Downstream: Wellheads, Christmas trees, flow lines, and refinery hydrotreaters.

  • Petrochemical: High-pressure process piping, cracking units, and reformers.

  • Power Generation: Superheater and reheater connections in thermal power plants.

  • Heat Exchangers & Pressure Vessels: Nozzle connections subject to cyclic thermal loading.



Dye Penetrant Test / PT
ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
ASTM A182 F347 Weld Neck Flange / EN 1.4550 Stainless Steel Flange WNRTJ Flange
