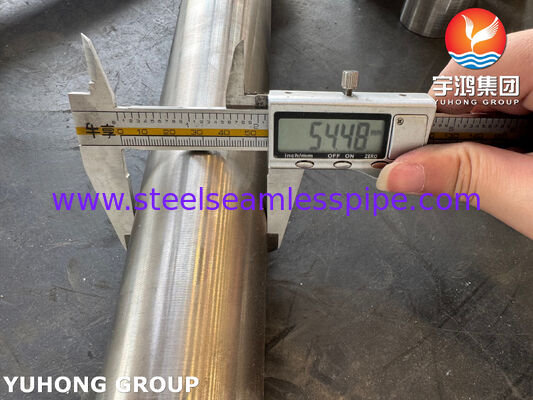

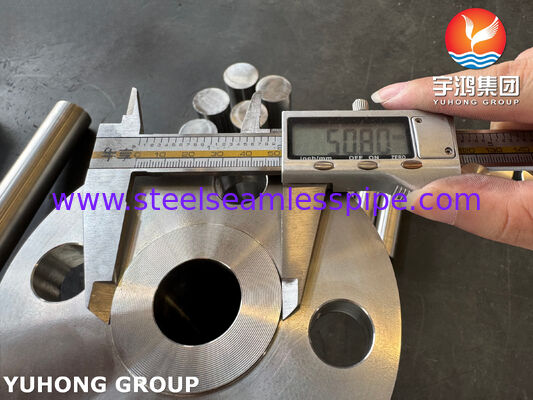

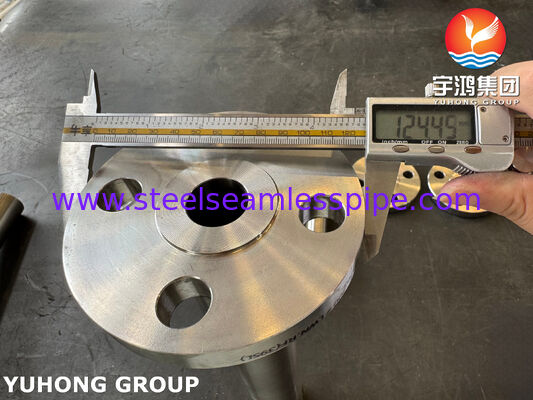

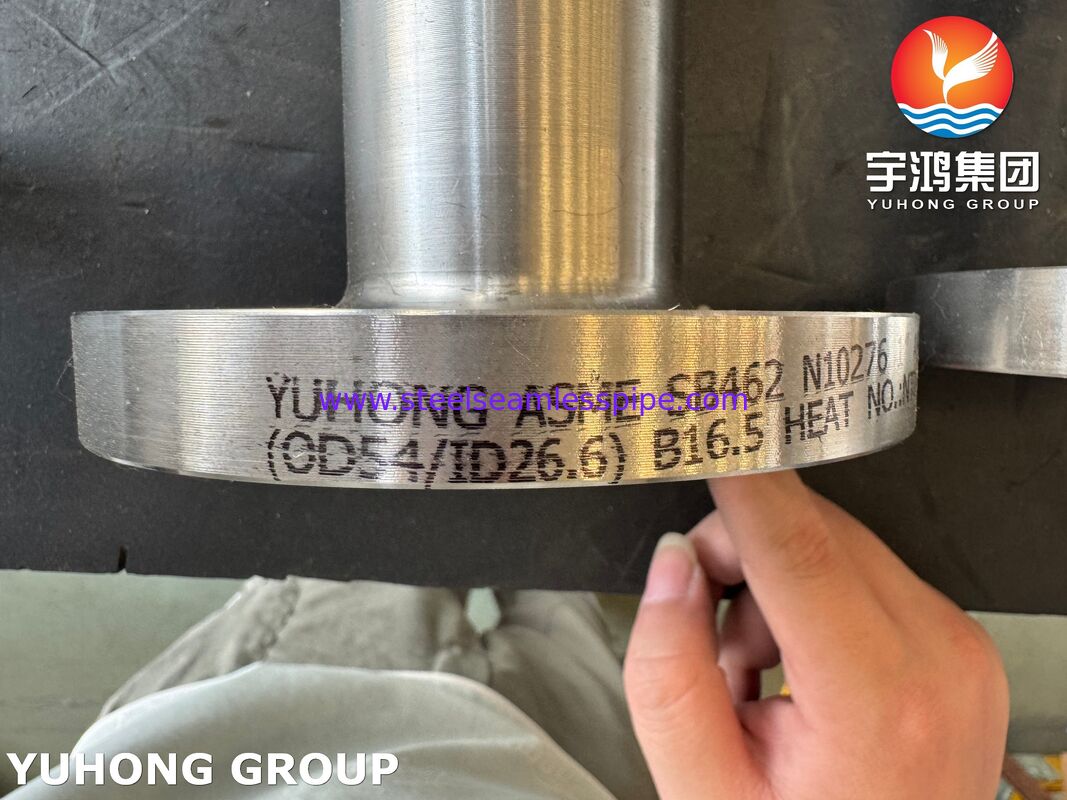

ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange

ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange

  • ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
  • ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
  • ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
  • ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SB462 UNS N10276 Long Weld Neck Flange
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: PLYWOOD CASE / PALLET
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (346)
Stainless Steel Seamless Tube (343)
Duplex Stainless Steel Pipe (137)
Duplex Stainless Steel Tube (39)
Needle Tube (171)
Fin Tube (745)
Heat Exchanger (35)
Heat Exchanger Tube (476)
Heat Exchanger Tube Bundle (54)
Heat Exchanger Tubesheet (129)
Heat Exchanger Baffle (39)
Air Cooler (14)
Pressure Vessel (4)
Stainless Steel Welded Pipe (62)
Stainless Steel Welded Tube (134)
Nickel Alloy Pipe (276)
Nickel Alloy Tube (108)
Copper Alloy Tube (258)
Alloy Steel Tube (220)
Titanium Tube (21)
Bright Annealed Tube (166)
Boiler Tube (161)
Steel Fitting (876)
Steel Flange (677)
Others (412)
Cladding Parts (9)
Detailed Product Description
Product Name: Hastelloy Flange Dimension: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges Etc.
Material: UNS N10276 / 2.4819 / Hastelloy C276 Size: 1/8" To 48"
Pressure: Class150/300/600/9001500/2500 Flange Face: Flate Face (FF), Raised Face (RF)
Application: Petroleum, Chemical, Onshore Adn Offshore, Shipbuilding, Etc
High Light: ASME SB462 UNS N10276 LWN Flange, Hastelloy C276 Long Weld Neck Flange

B16.5 Hastelloy C276 LWN Flange , ASME SB462 UNS N10276 / 2.4819 Long Weld Neck Flange





ASME SB462 UNS N10276 Long Weld Neck Flange (LWNF) is a forged, raised-face or flat-face pipe flange characterized by an extended, tapered hub (Long Weld Neck), designed to provide superior corrosion resistance and mechanical stress relief for critical high-pressure vessel and pipeline nozzles. It is manufactured from a nickel-chromium-molybdenum alloy (UNS N10276, commercially known as Hastelloy C-276) in compliance with the ASME material specification SB-462. The "LWN" designates a Long Weld Neck, which provides a gradual stress transition and often eliminates the need for separate reinforcing pads when welded to a pipe or pressure vessel nozzle.





Equivalent Grades of ASME SB462 UNS N10276 LWN Flange B16.5 Hastelloy C276 Long Weld Neck Flange

STANDARD UNS WNR. AFNOR EN JIS OR GOST
Hastelloy C276 N10276 2.4819 - NiMo16Cr15W NW 0276 ЭП760 ХН65МВУ





Chemical Composition of of ASME SB462 UNS N10276 LWN Flange B16.5 Hastelloy C276 Long Weld Neck Flange

Hastelloy C276 Ni C Mo Mn Si Fe P S Co Cr
Balance 0.010 max 15.00 – 17.00 1.00 max 0.08 max 4.00 – 7.00 0.04 max 0.03 max 2.5 max 14.50 – 16.50





Mechanical properties of ASME SB462 UNS N10276 LWN Flange Hastelloy C276 Long Weld Neck Flange

(Minimum value at 20℃)

Tensile Strengthσb/MPa Yield Strengthσp0.2/MPa Elongationσ5 /%
690 283 40





What is the Primary Function of Long Weld Neck Flange?

The primary function of a Long Weld Neck flange is to act as an integral, self-reinforced stress-transition nozzle that disperses pressure-induced and thermal loads over a gradual taper, protects the critical sealing face from welding distortion, and extends the fatigue life of the connection—making it the preferred choice for severe, high-integrity corrosive services like those requiring Hastelloy C-276 (UNS N10276).





Application

  • Primary Applications:
  • High-pressure chemical reactors.
  • Offshore oil & gas manifolds.
  • Heat exchangers requiring long nozzle necks.
  • Piping systems handling highly corrosive media (HCl, wet H₂S, seawater).




ASME SB462 UNS N10276 LWN Flange ASME B16.5 Hastelloy C276 Long Weld Neck Flange
