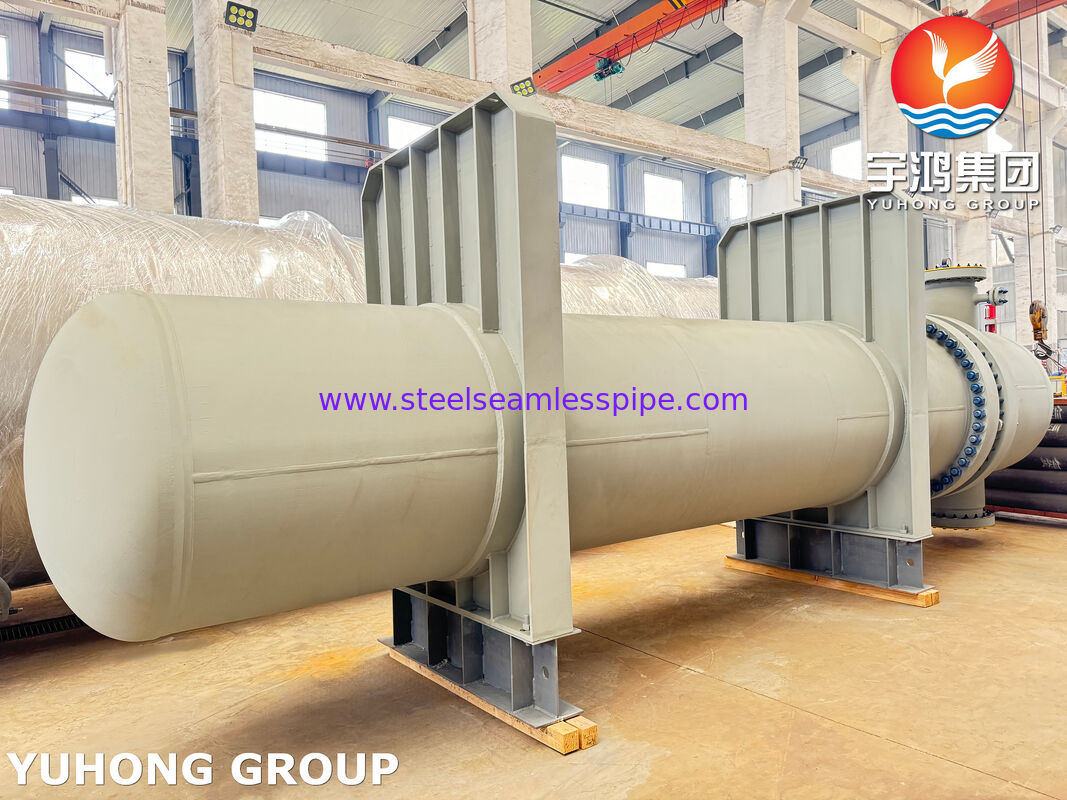

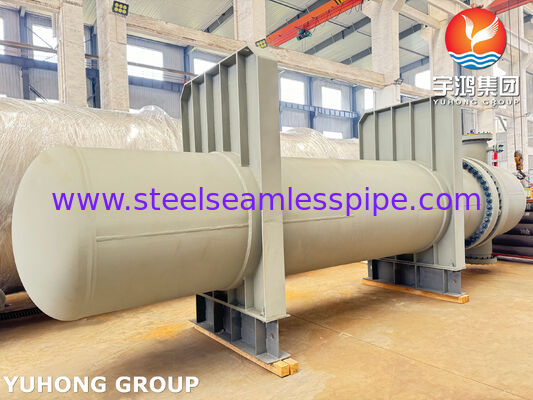

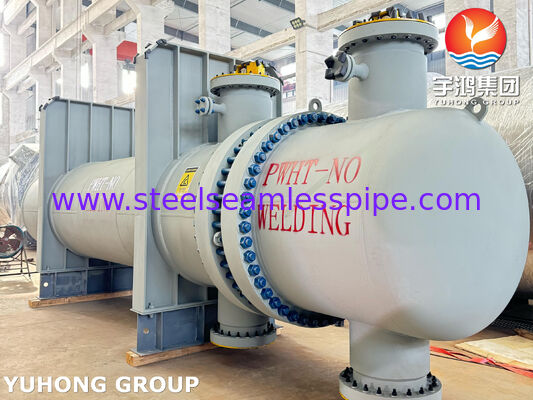

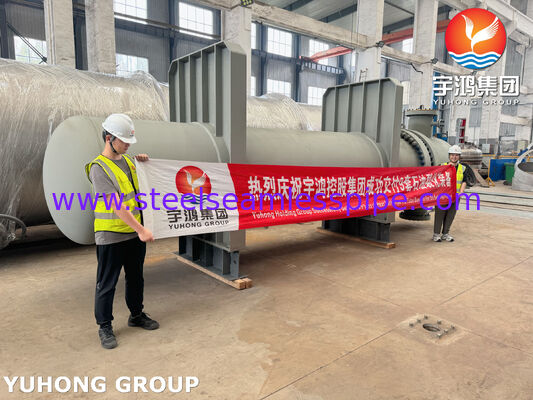

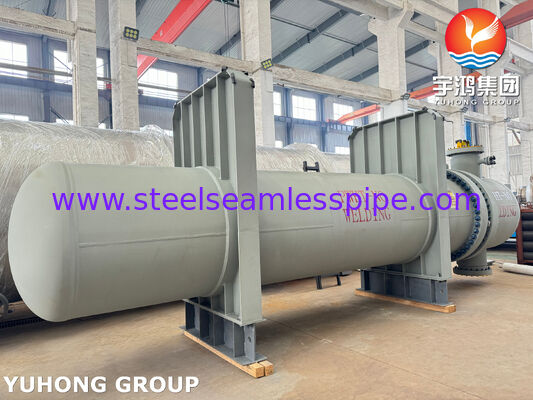

ASME VIII Div.1 TEMA R Shell and Tube Heat Exchanger Heavy-Duty Oil & Gas Refinery Team Heat Exchanger

Product Details:

Place of Origin:	CHINA, KOREA
Brand Name:	YUHONG
Certification:	TEMA Class R / ASME Section VIII Division 1
Model Number:	TEMA Type BEM Vertical Shell and Tube Heat Exchanger

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD 50,000 - USD 1,000,000 PER SET
Packaging Details:	Standard wooden crates or custom packaging based on customer requirements.
Delivery Time:	60-90 DAYS
Payment Terms:	T/T,D/P,D/A,L/C,Western Union
Supply Ability:	500 SETS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (350)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (38)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (222)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (162)

Steel Fitting (876)

Steel Flange (680)

Others (412)

Cladding Parts (9)

Detailed Product Description

Equipment Type:	Shell And Tube Heat Exchanger	Design Code & Standard:	ASME Section VIII Div. 1, TEMA Class R, NACE MR0175 / ISO 15156
Shell Material:	ASME SA-516 Gr. 70 N (Normalized) / ASME SA-106 Gr. B	Tube Material:	ASME SA-179 Seamless Cold-Drawn / ASME SA-213 TP316L
Tubesheet Material:	ASME SA-350 LF2 Cl. 1 / ASME SA-105 / ASME SA-266	Channel / Head Material:	ASME SA-516 Gr. 70 N
Bolting Material:	ASME SA-193 Gr. B7 (Studs) & ASME SA-194 Gr. 2H (Heavy Hex Nuts)
Highlight:	Monel 400 shell and tube heat exchanger , TEMA Type BEM heat exchanger , fixed tubesheet heat exchanger

ASME VIII Div.1 TEMA R Shell and Tube Heat Exchanger Heavy-Duty Oil & Gas Refinery Team Heat Exchanger

Product Attributes & Technical Specifications

Parameter / Attribute	Technical Specification & Standard
Equipment Type	Shell and Tube Heat Exchanger
Design Code & Standard	ASME Section VIII Div. 1, TEMA Class R, NACE MR0175 / ISO 15156
Shell Material	ASME SA-516 Gr. 70 N (Normalized) / ASME SA-106 Gr. B
Tube Material	ASME SA-179 Seamless Cold-Drawn / ASME SA-213 TP316L
Tubesheet Material	ASME SA-350 LF2 Cl. 1 / ASME SA-105 / ASME SA-266
Channel / Head Material	ASME SA-516 Gr. 70 N
Bolting Material	ASME SA-193 Gr. B7 (Studs) & ASME SA-194 Gr. 2H (Heavy Hex Nuts)
Gasket Specification	SS316 + Flexible Graphite Spiral Wound Gasket with Inner & Outer Rings
Sour Service Compliance	HIC & SSCC Tested as per NACE MR0175

3. Product Description

3.1 Product Overview & Core Applications

This pressure vessel is a heavy-duty shell and tube heat exchanger engineered strictly in accordance with ASME Section VIII Division 1 and TEMA Class R standards. It is designed specifically for harsh operating conditions, including high-pressure, high-temperature, and sour service environments in petroleum refining, petrochemical processing, and offshore/onshore natural gas treatment facilities.

Engineered and delivered by our dedicated technical specialists, this team heat exchanger solution complies fully with stringent EPC and end-user specifications, including those from Mott MacDonald, Petrojet, and Kuwait Energy, ensuring long-term structural integrity and optimum thermal efficiency.

3.2 Core Components & Material Specification

Component	ASME / ASTM Material Standard	Delivery / Heat Treatment Condition
Shell Cylinder	ASME SA-516 Gr. 70 N / ASME SA-106 Gr. B	Normalized
Heat Exchanger Tubes	ASME SA-179 / ASME SA-213 TP316L	Seamless Cold Drawn
Tubesheet	ASME SA-350 LF2 Cl. 1 / ASME SA-266 Gr. 2	Forged
Channel / Shell Cover	ASME SA-516 Gr. 70 N	Normalized
Nozzles & Flanges	ASME SA-105 / ASME SA-350 LF2	ASME B16.5 / B16.47 Standards
Baffles & Tie Rods	ASME SA-240 316L / ASME SA-283 Gr. C	Precision CNC Machined
Pressure Bolting	ASME SA-193 Gr. B7 / ASME SA-194 Gr. 2H	High-Tensile Alloy Steel

3.3 Core Technical & Engineering Advantages

High-Precision Tube-to-Tubesheet Joints: Incorporates a Strength Welded + Strength Expanded joint design to eliminate crevice corrosion and prevent stress corrosion cracking (SCC) under cyclic thermal loads.
NACE MR0175 Compliance for Sour Service: All ASME SA-516 Gr. 70 N pressure-retaining plates undergo strict ladle heat analysis, microstructural examination, and HIC/SSCC testing.
TEMA Class R Erosion Protection: Outfitted with heavy-duty Impingement Baffles at nozzle inlets to protect internal tube bundles from direct fluid erosion and high-velocity impingement.
Modular Integration: Engineered by our professional team heat exchanger specialists with integrated lifting lugs, alignment pins, and standard flange interfaces to streamline field installation and maintenance.

3.4 QA/QC Specifications & Non-Destructive Testing (NDT)

Non-Destructive Examination (NDE):
- RT (Radiographic Testing): 100% volumetric examination on all full-penetration butt welds of the shell and heads per ASME Sec. V.
- UT / MT / PT: 100% Ultrasonic Testing on tubesheet forgings, alongside Magnetic Particle / Liquid Penetrant Inspection on nozzle corner welds.
Post-Weld Heat Treatment (PWHT): Conducted in a computer-controlled furnace for pressure-retaining shells and channels to relieve residual welding stresses in compliance with ASME Code requirements.
