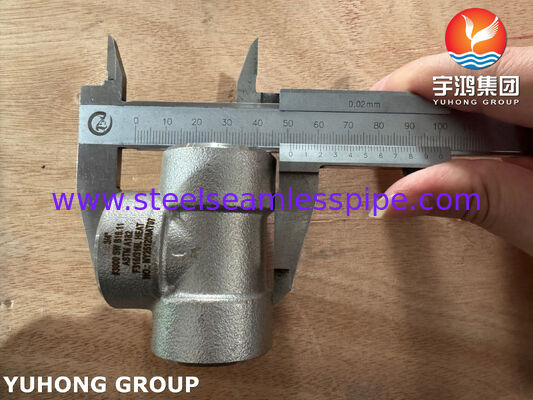

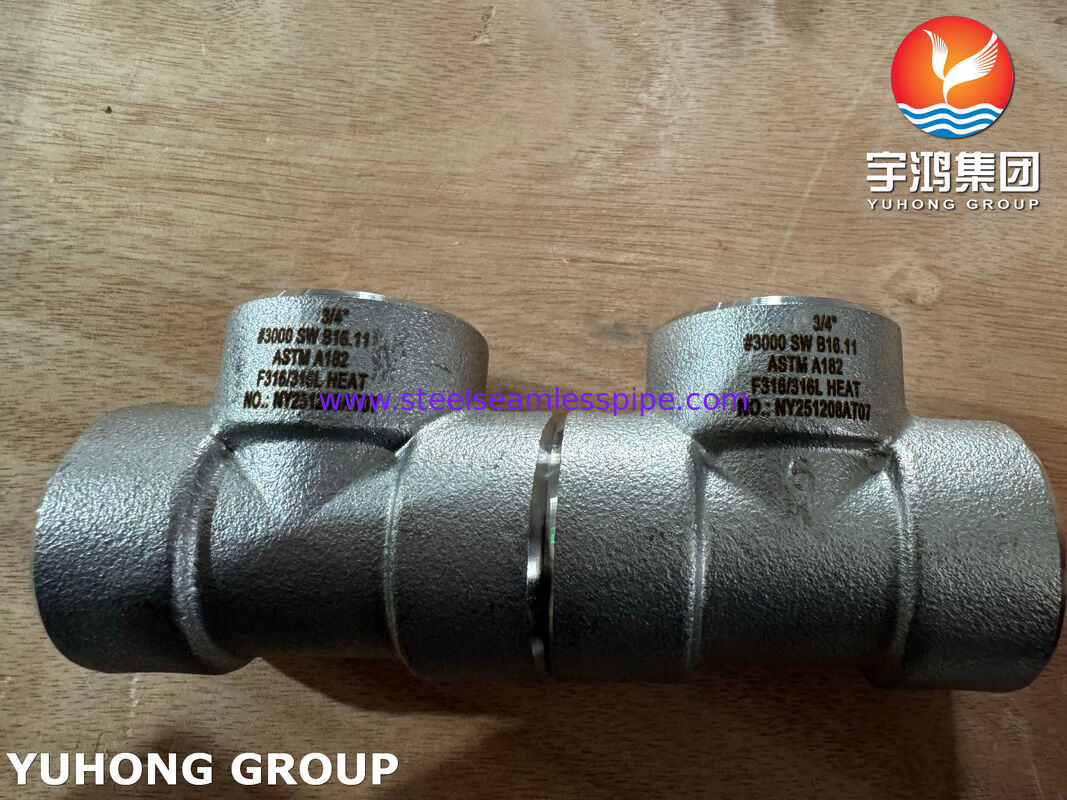

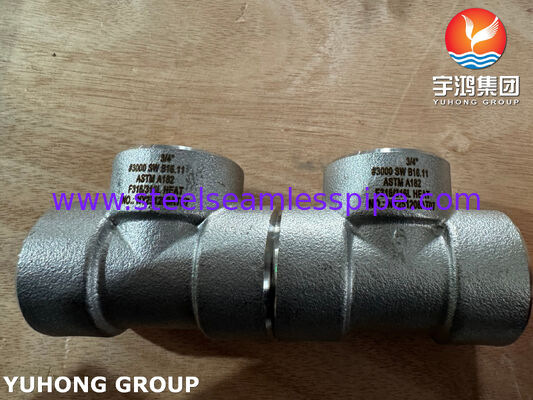

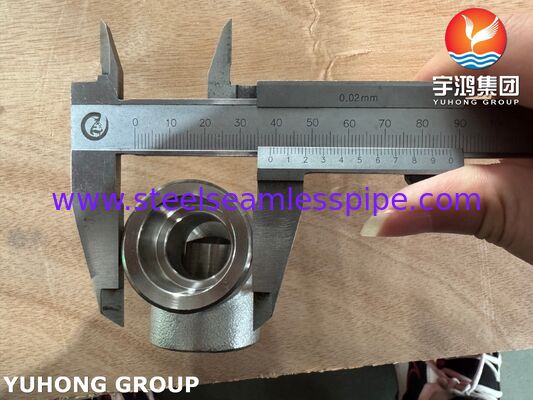

ASTM A182 F316L Stainless Steel Socket Weld Fittings B16.11 Forged Fittings SW Equal Tee

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO, BV, TUV, PED
Model Number:	A182 F316L Stainless Steel SW Equal Tee

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	PLYWOOD CASE, CARTON
Delivery Time:	7days
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (350)

Stainless Steel Seamless Tube (347)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (172)

Fin Tube (749)

Heat Exchanger (41)

Heat Exchanger Tube (479)

Heat Exchanger Tube Bundle (55)

Heat Exchanger Tubesheet (130)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (275)

Nickel Alloy Tube (110)

Copper Alloy Tube (258)

Alloy Steel Tube (223)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (163)

Steel Fitting (881)

Steel Flange (682)

Others (412)

Cladding Parts (9)

Detailed Product Description

Product Name:	Stainless Steel SW Equal Tee	Standard:	ASTM A182/ASME SA182
Material:	F316L	Size:	3/8", 1/2", 3/4", 1", 1.1/4", 2", 2.1/2", 3", 4"
Classs:	3000#,6000#,9000#	Type:	Equal Tee
Technics:	Forged
High Light:	ANSI B16.11 Stainless Steel Forged Fittings, ASTM A182 F316L Stainless Steel SW Equal Tee

ANSI B16.11 Forged Fittings ASTM A182 F16L Stainless Steel Socket Weld Tee SW Equal Tee

ASME B16.11 90° elbows are used to change the pipe or flow direction by 90 degrees. They can be furnished with two socket welding (SW) ends, two threaded (THD) ends, or one socket welding end and one threaded end. The SW 90° elbows are available in Class 3000 (sizes from 1/8″ to 4″), Class 6000 (sizes from 1/8″ to 2″), and Class 9000 (sizes from 1/8″ to 2″). The THD 90° elbows are available in Class 2000, Class 3000 and Class 6000 (all in sizes from 1/8″ to 4″).

Advantages of Socket Weld Fittings (SW) over Threaded or Butt-Weld

Leak-proof Integrity: No threaded connections mean a drastic reduction in leak paths. Highly reliable for hazardous or high-pressure fluids.
Fatigue Resistance: Better fatigue strength than threaded fittings due to the fillet weld geometry.
Simplified Alignment: Pipes do not require beveling (unlike butt-weld), simplifying fit-up. The pipe rests inside the socket, providing self-alignment.
Ideal for Small Bore Piping: Preferred choice for piping systems ≤ NPS 2" where butt-welding becomes economically unfeasible.

Chemical Composition % of ASTM A182 F316L Stainless Steel Socket Weld Fittings B16.11 SW Equal Tee

C	Mn	Si	P	S	Cr	Mo	Ni
0.035	2	0.75	0.04	0.03	16-18	2-3	10-14

Mechanical Properties of ASTM A182 F316L Stainless Steel Socket Weld Fittings B16.11 SW Equal Tee

Tensile Strength	Yield Strength	Elongation
515 (Mpa)	205 (Mpa)	40 (%)

Specification of Stainless Steel Forged Fittings

Grade	Stainless steel 304, 304L, 310S, 316L, 317L, 347, etc.
Standard	ASTM A182 & ASME SA182
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8" NB to 4" NB
Class	3000 LBS, 6000 LBS, 9000 LBS
Form	S/W & SCRD
Type	Elbow, Tee, Union , Cross, CAP, Swage Nipples Coupling, Plug, Bush, Sokolet, Weldoket, Thredolet, Elbolet, Nipolet, Lateral Tee.

ASTM A182 F316L Stainless Steel Socket Weld Fittings B16.11 Forged Fittings SW Equal Tee

Socket Weld Dimensional Data

1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld

Class 3000

1/8

1/4

3/8

1/2

3/4

1 1/4

1 1/2

2 1/2

7/8

31/32

1 1/8

1 5/16

1 1/2

1 3/4

2 3/8

3 3/8

4 3/16

29/32

1 1/16

1 5/16

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/16

4 5/16

5 3/4

0.420

0.555

0.690

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

3/8

1/2

5/8

3/4

7/16

17/32

5/8

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 5/8

Class 6000

1/8

1/4

3/8

1/2

3/4

1 1/4

1 1/2

2 1/2

1 5/16

1 1/2

1 3/4

2 3/8

2 1/2

3 1/4

3 3/4

4 1/2

1 9/16

1 27/32

2 7/32

2 1/2

3 1/32

3 11/32

4 3/4

0.855

1.065

1.330

1.675

1.915

2.406

2.906

3.535

4.545

3/8

1/2

5/8

3/4

7/8

1 1/16

1 1/4

1 1/2

1 5/8

2 1/4

2 1/2

2 3/4

Class 9000		1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
	A	-	-	-	1 1/2	1 3/4	2	2 3/8	2 1/2	3	-	-	-
	B	-	-	-	1 27/32	2 7/32	2 1/2	3 1/32	3 11/32	3 11/16	-	-	-
	C	-	-	-	0.855	1.065	1.330	1.675	1.915	2.406	-	-	-
	D	-	-	-	3/8	1/2	1/2	1/2	1/2	5/8	-	-	-
	E	-	-	-	1	1 1/8	1 1/4	1 3/8	1 1/2	2 1/8	-	-	-

What it does in the Piping System?
As an Equal Tee, all three outlets are the same size. It is used for two primary functions:

Flow Branching (Splitting): It takes a single main flow from the "run" (straight-through direction) and diverts a portion of it at a 90-degree angle to the "branch" outlet. Because it is "equal," the branch has the same internal diameter as the main line, allowing a significant volume of fluid to be diverted.

Flow Merging (Combining): Conversely, it can take flows from two separate lines (one from the run, one from the branch) and combine them into a single outlet stream.

Applications
