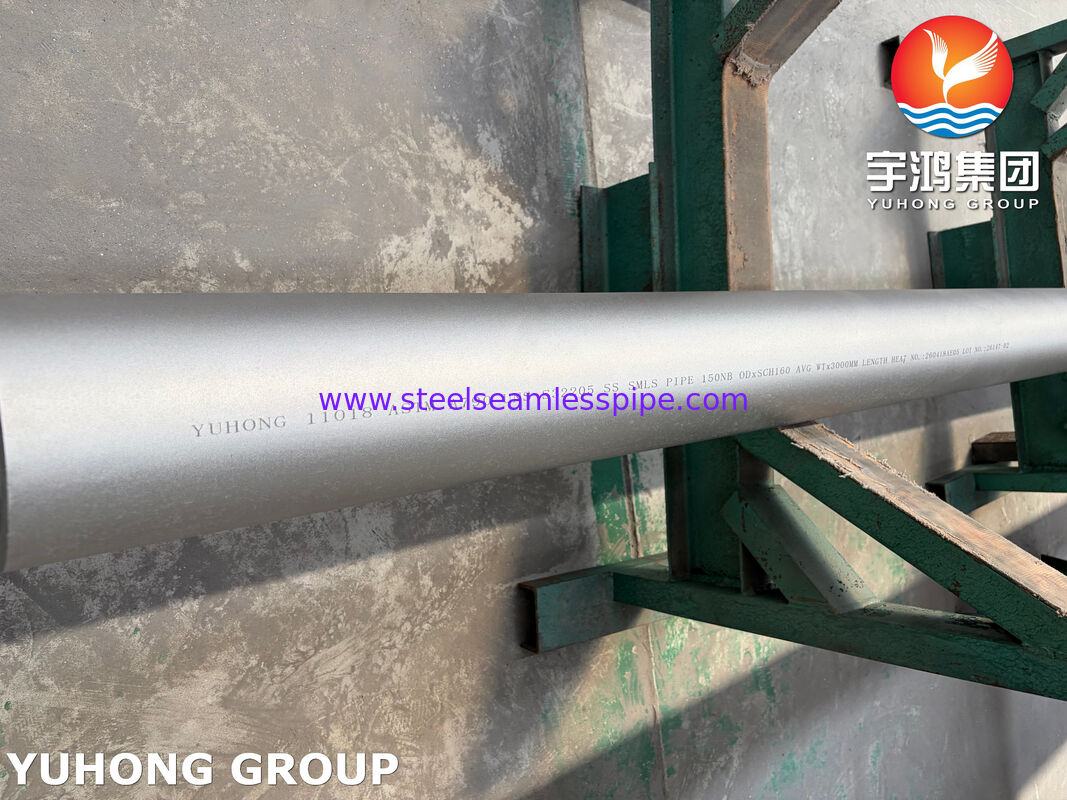

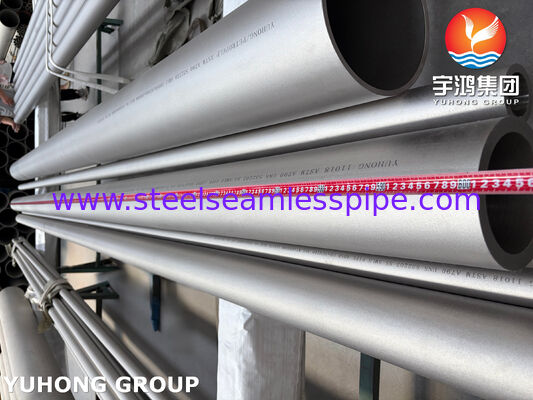

ASTM A790 UNS S32205 / 1.4462 Duplex Stainless Steel Seamless Pipe For Desalination Plant
ASTM A790 UNS S32205 / 1.4462 Duplex Steel Pipe is a duplex stainless steel pipe manufactured according to ASTM A790/A790M - Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe. The grade UNS S32205 is a 22Cr-5Ni-3Mo-N duplex stainless steel, commonly known as Duplex 2205. Its European equivalent is EN 1.4462/X2CrNiMoN22-5-3. ASTM A790 UNS S32205 seamless pipe is a high-strength duplex stainless steel pipe with excellent resistance to chloride stress corrosion cracking, pitting, and crevice corrosion. It is typically supplied in the solution-annealed, pickled, and passivated condition, with sizes from NPS 1/4” to 24” and beyond, in schedules such as 10S, 40S, and 80S. Its combination of strength and corrosion resistance makes it a preferred material for offshore, chemical, desalination, marine, and petrochemical applications.
Chemical Composition of ASTM A790 UNS S32205:
| Element |
Composition, % |
| Carbon, C |
0.030 max |
| Manganese, Mn |
2.00 max |
| Phosphorus, P |
0.030 max |
| Sulfur, S |
0.020 max |
| Silicon, Si |
1.00 max |
| Chromium, Cr |
22.0–23.0 |
| Nickel, Ni |
4.5–6.5 |
| Molybdenum, Mo |
3.0–3.5 |
| Nitrogen, N |
0.14–0.20 |
| Iron, Fe |
Balance |
Main Features of ASTM A790 UNS S32205 Seamless Pipe:
Good weldability
High mechanical strength
Good pitting and crevice corrosion resistance
Good erosion-corrosion resistance
Good resistance to uniform corrosion in weak acids, seawater, brine environments
Duplex microstructure
Good fatigue and impact resistance when properly heat treated
Lower thermal expansion and higher thermal conductivity than austenitic stainless steels
Different Surface Finish:
Pickled & Annealed
Bright Annealed
Polished
Shot Blasted
Hot Finished Surface
Typical Applications:
- Oil & gas industry: Subsea pipelines, produced water pipelines, gathering lines, seawater injection piping.
- Desalination: Seawater intake, brine circulation piping, reverse osmosis system.
- Chemical & petrochemical: Piping for acetic acid, phosphoric acid, chloride-containing process fluids.
- Pulp and paper industry: Digester piping, bleach plant lines.
- Marine engineering: Offshore platform seawater cooling piping, saltwater service.
- Power plant: Flue gas desulfurization (FGD) system piping, cooling water systems with high chloride.
- Environmental engineering: Wastewater treatment piping, corrosive sludge transfer.
