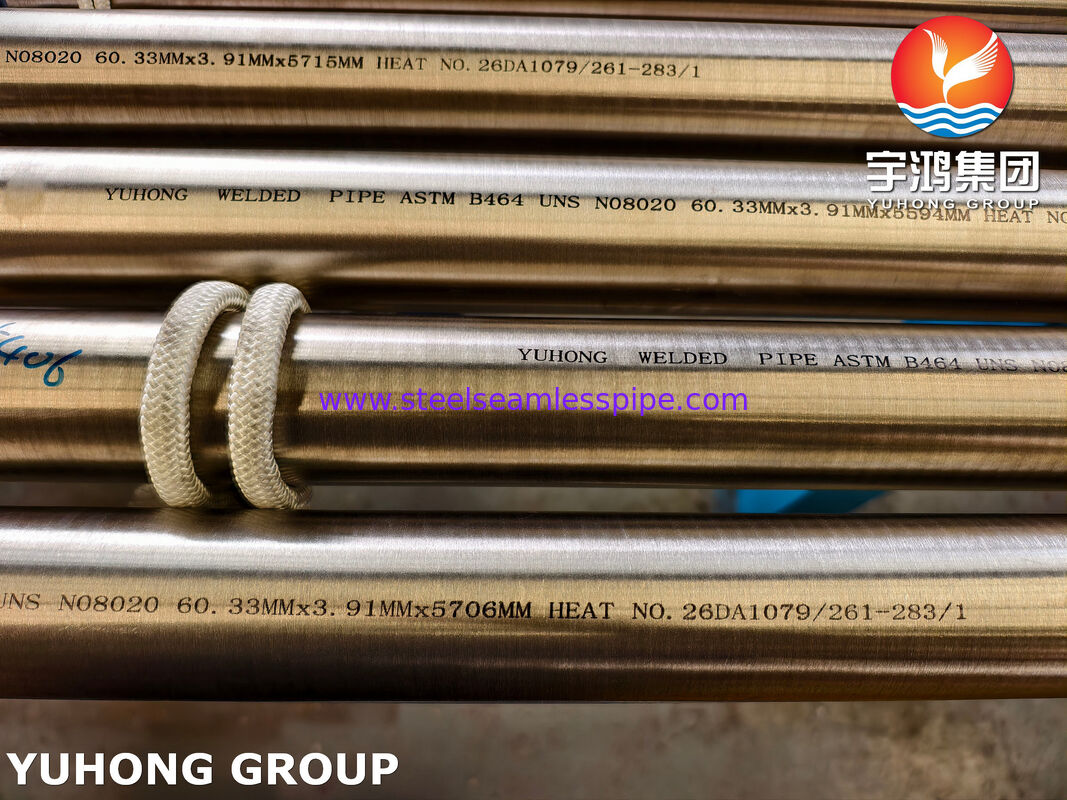

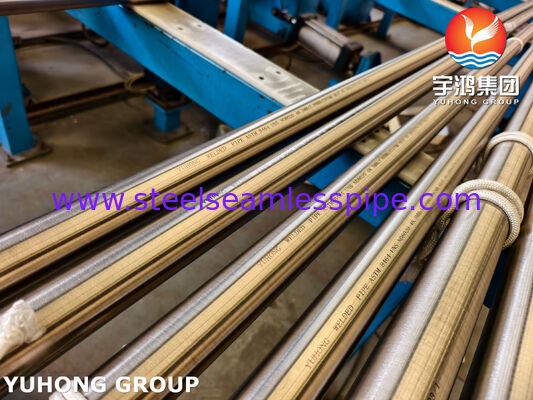

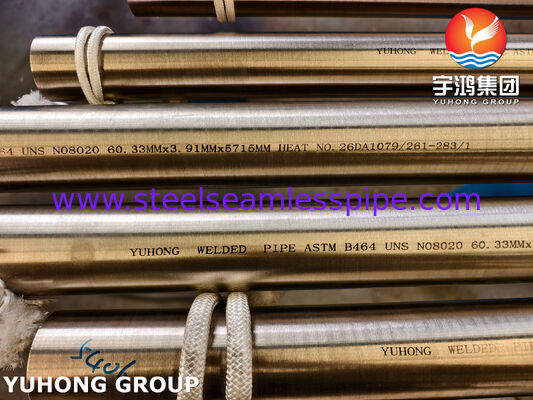

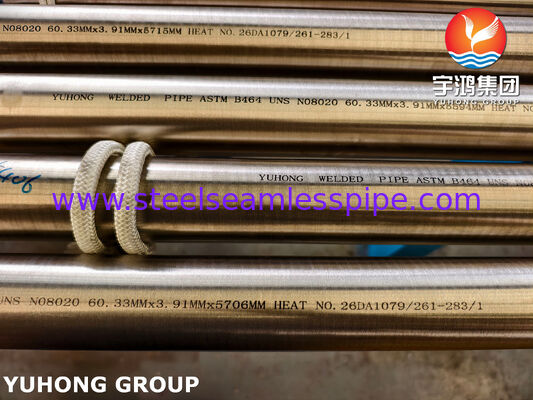

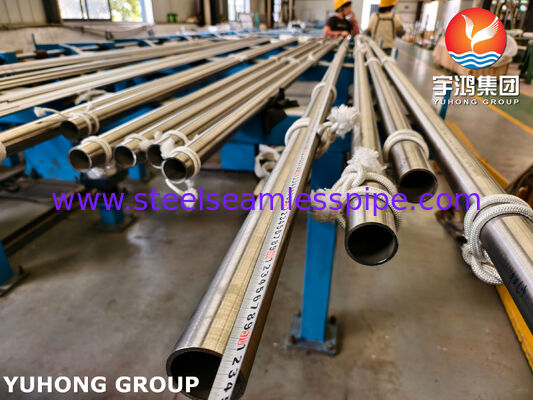

ASTM B464 UNS N08020 CARPENTER 20 NICKEL ALLOY WELDED PIPE NS143

ASTM B464 UNS N08020 CARPENTER 20 NICKEL ALLOY WELDED PIPE NS143

The ASTM B464 standard specifies the manufacturing requirements for this welded pipe: it is made from flat-rolled plate by an automatic welding process (without the addition of filler metal), and must undergo solution heat treatment to ensure optimal corrosion resistance. The standard covers nominal sizes from NPS 1/2 to 6, with wall thickness schedules including 5S, 10S, 40S, and others.

Core Advantages of B464 N08020 Welded Pipe

Excellent Corrosion Resistance: This is its most prominent advantage. It offers outstanding resistance to sulfuric acid (both dilute and concentrated), phosphoric acid, and nitric acid. At the same time, it effectively resists chloride stress corrosion cracking, pitting, and crevice corrosion—conditions that ordinary 316L stainless steel struggles to handle.

Stable Performance After Welding: This alloy is stabilized with niobium (Nb). This means that after welding, the weld seam and heat-affected zone are not prone to "sensitization" caused by the precipitation of chromium carbides, and can maintain corrosion resistance equivalent to that of the base metal, usually without the need for complex post-weld heat treatment.

Overall Cost-Effectiveness: Compared with high-end nickel-based alloys such as Hastelloy C-276, Alloy 20 is more economical while being fully capable of handling most sulfuric acid service conditions, making it a more cost-effective choice for many strong-acid processes.

Good Mechanical Properties and Fabricability: It possesses relatively high strength and ductility (yield strength of approximately 241 MPa, elongation of 30%), is easy to form through cold and hot working, and is suitable for conventional welding methods such as TIG and MIG.

Main Applications of B464 N08020 Welded Pipe

ASTM B464 welded pipe is primarily used to manufacture process piping systems that handle highly corrosive chemicals. Typical applications include:

Chemical and Petrochemical: Product acid piping in sulfuric acid plants, steel mill pickling lines, and various synthetic chemical and plastics production facilities.

Fertilizer and Pharmaceutical: Phosphoric acid production equipment, and pipelines for conveying corrosive fluids in pharmaceutical plants.

Other Industries: Food processing, power generation, and heat exchanger, pump, and valve connection piping requiring resistance to chloride corrosion.

Chemical Composition of N08020
