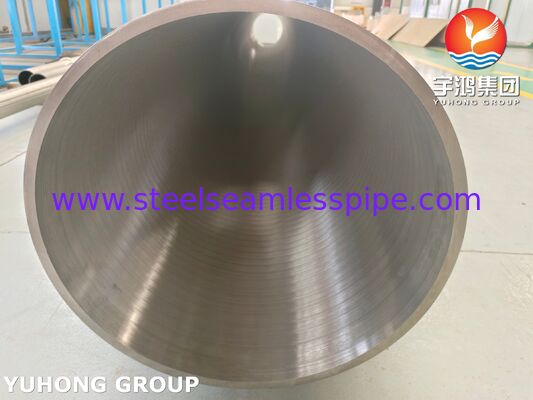

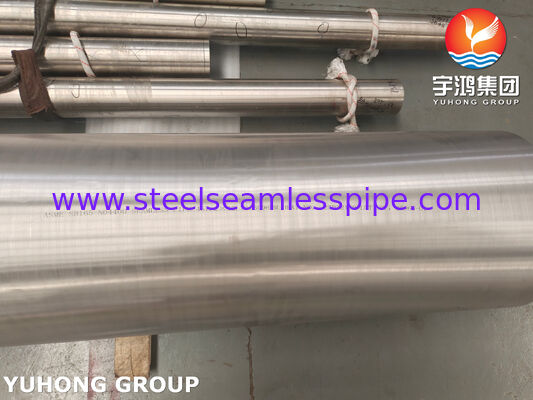

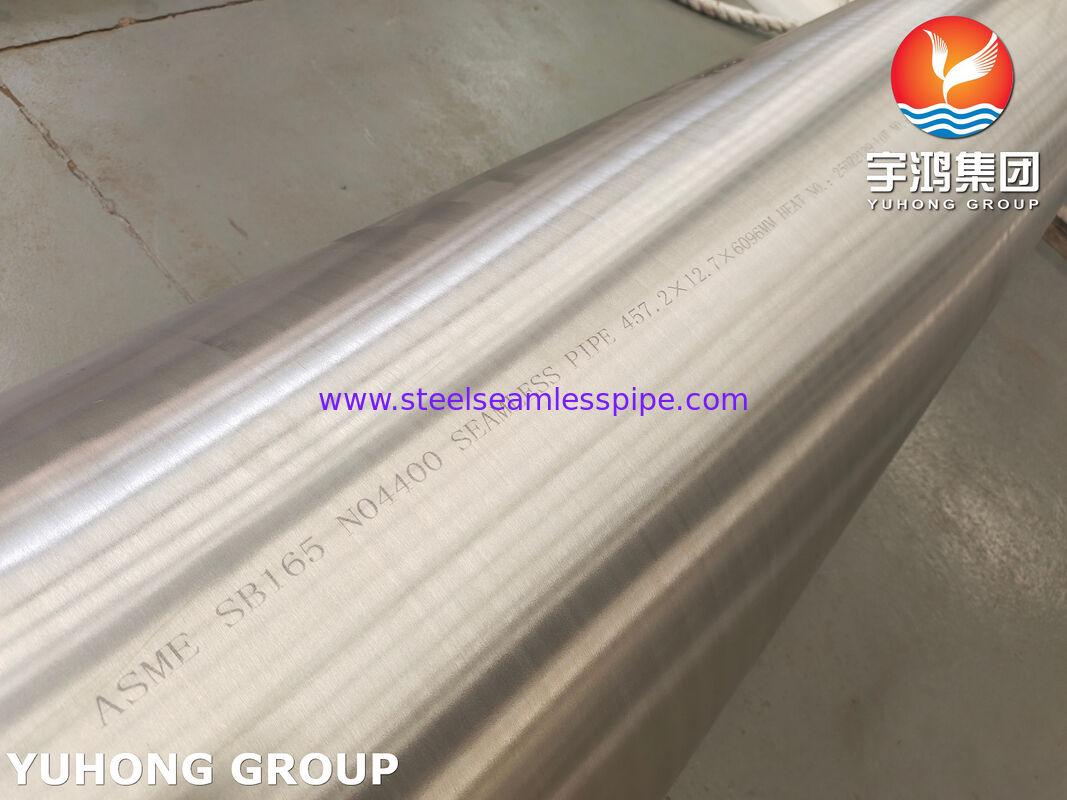

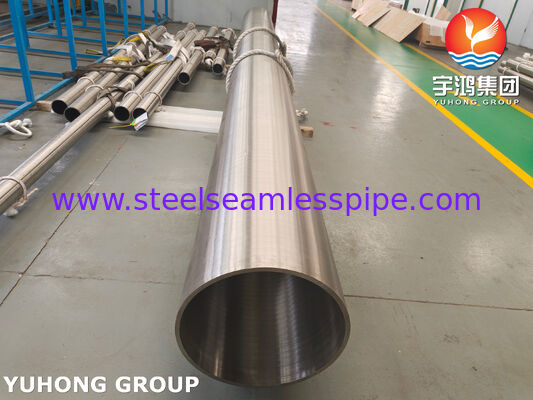

ASME SB165 UNS N04400 Monel400 Seamless Nickel Alloy Pipe For Fluid Transportion Piping
ASME SB165 UNS N04400 seamless nickel alloy pipe is a seamless pipe product manufactured from Monel 400 (UNS N04400), a nickel-copper alloy containing approximately 63% minimum nickel and 28–34% copper. This seamless nickel alloy pipe has no welded seam, offering higher integrity, better pressure containment, and improved resistance to corrosion and fatigue compared with welded pipe. It is widely used in marine, chemical, petrochemical, oil and gas, power, and desalination applications. ASME SB165 UNS N04400 Monel 400 seamless nickel alloy pipe is a high-performance nickel-copper alloy pipe with outstanding corrosion resistance, especially in seawater and reducing chemical environments. It combines good strength, toughness, weldability, and low magnetic permeability, making it a preferred material for marine, chemical, petrochemical, and pressure-service applications.
Chemical Composition (wt%, ASME SB165 UNS N04400):
| Element |
Ni |
Cu |
Fe |
Mn |
C |
Si |
S |
| Min |
63.0 |
28.0 |
— |
— |
— |
— |
— |
| Max |
70.0 |
34.0 |
2.5 |
2.0 |
0.30 |
0.50 |
0.024 |
Mechanical Properties:
| Tensile Strength, min |
480 MPa (70 ksi) |
| Yield Strength (0.2% offset), min |
170 MPa (25 ksi) |
| Elongation (50 mm gauge length), min |
35% |
| Hardness (HB) |
≤149 HB |
Main Features of Monel 400 Seamless Nickel Alloy Pipe:
Excellent corrosion resistance in seawater, non-oxidizing acids, organic compounds.
Good resistance to cavitation and erosion-corrosion.
Good mechanical properties from cryogenic temperature up to about 480°C; no ductile-brittle transition at low temperature.
Good weldability, formability and machinabilityNon-magnetic at room temperature.
High thermal conductivity, suitable for heat transfer equipment.
Resists stress corrosion cracking in many chloride environments, compared with stainless steel.
Typical Applications of ASME SB165 UNS N04400 Seamless Pipe:
Marine and offshore: seawater piping, heat exchangers, condensers, pump shafts, valves, fittings, propeller shafts
Chemical and petrochemical: hydrofluoric acid alkylation, sulfuric acid handling, caustic service, organic acid processing, reactors, distillation columns
Oil and gas: tubing, piping, valves, pumps, and components for corrosive sour service
Power generation: feedwater heaters, condensers, steam generator tubing
Desalination: brine piping, evaporators, heat exchangers
Food and pharmaceutical: sanitary piping and equipment where corrosion resistance and cleanliness are required
Aerospace and nuclear: components requiring corrosion resistance, toughness, and low magnetic permeability
Pulp and paper: digesters, piping, and equipment exposed to corrosive chemicals
