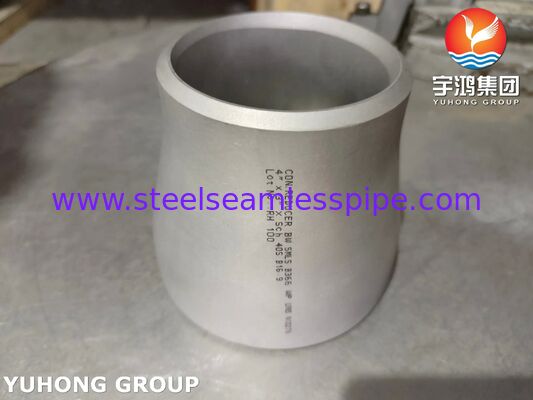

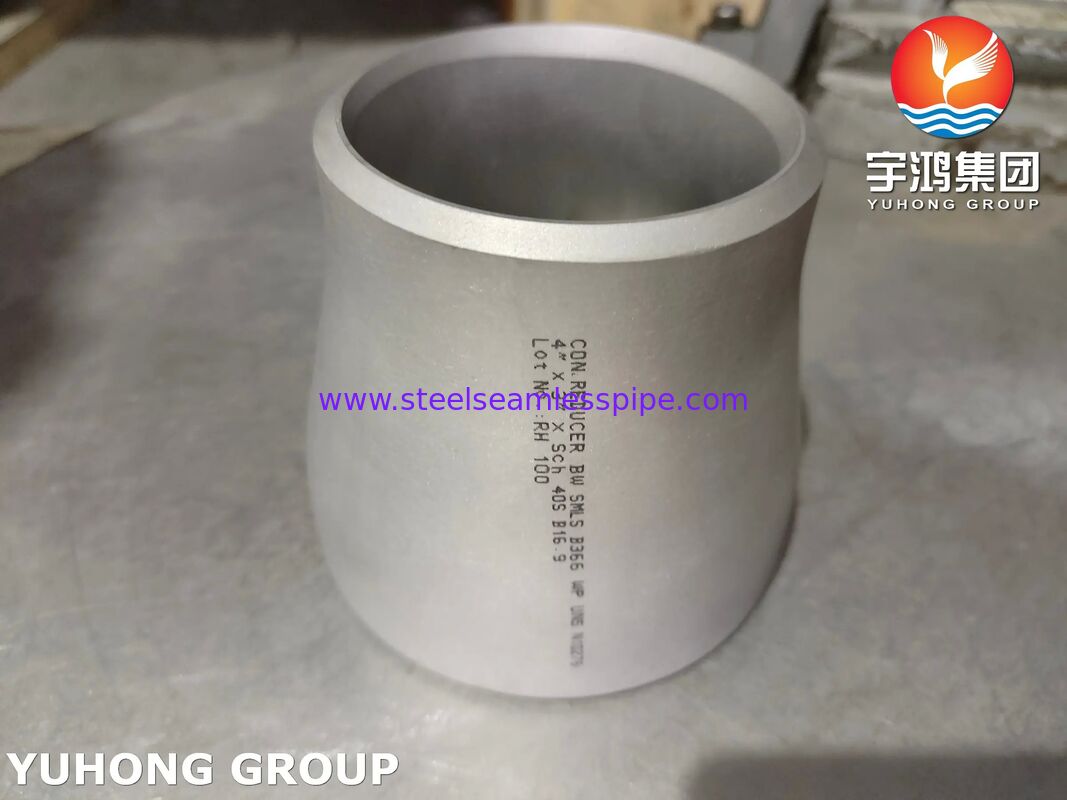

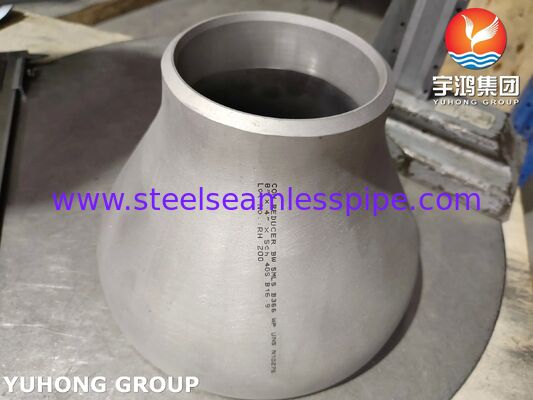

Hastelloy C276 Concentric Reducer ASTM B366 WPHC276 Reducing Fitting for Chemical Processing

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED
Model Number:	ASTM B366 WPHC276 Hastelloy C276 Conc. Reducer

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE OR PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (357)

Stainless Steel Seamless Tube (354)

Duplex Stainless Steel Pipe (145)

Duplex Stainless Steel Tube (41)

Needle Tube (177)

Fin Tube (771)

Heat Exchanger (45)

Heat Exchanger Tube (486)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (133)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (136)

Nickel Alloy Pipe (281)

Nickel Alloy Tube (114)

Copper Alloy Tube (259)

Alloy Steel Tube (230)

Titanium Tube (22)

Bright Annealed Tube (165)

Boiler Tube (166)

Steel Fitting (890)

Steel Flange (695)

Others (414)

Cladding Parts (9)

Detailed Product Description

Product Name:	Concentric Reducer	Standard:	ASTM B366, ASME SB366
Materials:	C276 / UNS N10276 / DIN 2.4819	Size:	1/8"NB TO 48"NB Inch
Schedule:	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS	Type:	Seamless , Welded
Applications:	Cellophane Manufacturing, Chlorination Systems, Pesticide Production, Incineration Scrubber Systems, Etc.
Highlight:	Hastelloy C276 Eccentric Reducer , ASTM B366 WPHC276 Reducing Fitting , Seamless Welded Pipe Reducer

ASTM B366 WPHC276 / UNS N10276 Nickel Alloy Conc. Reducer BW Hastelloy Pipe Fittings

Hastelloy C276 (UNS N10276) concentric reducer to ASTM B366 WPHC276, seamless or welded, 1/8 to 48 inch NB, SCH20-XXS, solution annealed. Flat-top design keeps FGD slurry, wet chlorine and mixed-acid lines self-draining while resisting the pitting, crevice and chloride stress-corrosion cracking that destroys 316L. Every lot ships with EN 10204 3.1 MTC, PMI and hydro test; ABS, BV, LR, DNV-GL, TUV and PED certificates available.

Equivalent Grades of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Conc. Reducer

STANDARD	WERKSTOFF NR.	UNS	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	2.4819	N10276	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Mechanical Properties of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Conc. Reducer

Grade	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 52000 , MPa – 355	Psi – 115000 , MPa – 790	40%

Chemical Composition of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Conc. Reducer

Grade	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

What Can Prove It

Every shipment can be released with the document set below. Certificates and third-party inspection reports are issued against the actual heat number of the reducer, not the generic grade.

Document	What it evidences	Issued by
EN 10204 3.1 material test certificate	Chemical composition and mechanical properties of the heat actually used	Mill, with inspection sign-off
Heat treatment record	Solution annealing temperature and quench practice	Mill
PMI report	Alloy identity confirmed on the finished fitting	Mill, witnessable
Hydrostatic / NDT report	Pressure tightness, radiography or penetrant results	Mill or third party

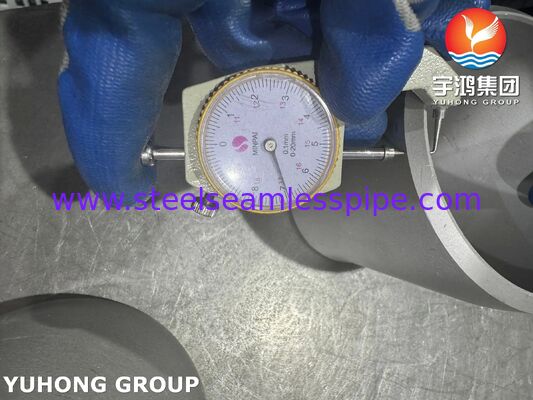

Dimensional inspection report	Face-to-face, bore, wall thickness against B16.9 and the ordered schedule	Mill
Third-party certificate	Class and notified-body approval of the delivered lot	ABS, BV, LR, DNV-GL, KR, CCS, TUV, PED, GOST

Typical applications

Chemical processing – acid regeneration, chlorination systems, pesticide production

Flue gas desulfurization – power plants and waste-to-energy scrubber circuits

Offshore oil, gas and geothermal – sour service and brine lines

Pulp & paper – bleaching plant piping

Nuclear waste treatment and reprocessing – mixed-acid transfer lines

Packing, marking and delivery

Item	Detail
Packing	Plywood case or pallet, each piece separated and protected at the bevel
Marking	Heat number, size, schedule and standard on the body; shipping mark per the buyer’s instruction
Shipping documents	Packing list, invoice, MTC 3.1, copies of the NDT and dimensional reports
Lead time	35 days for the standard sizes and schedules listed above
Minimum order	1 pc, accoridng to the available material
