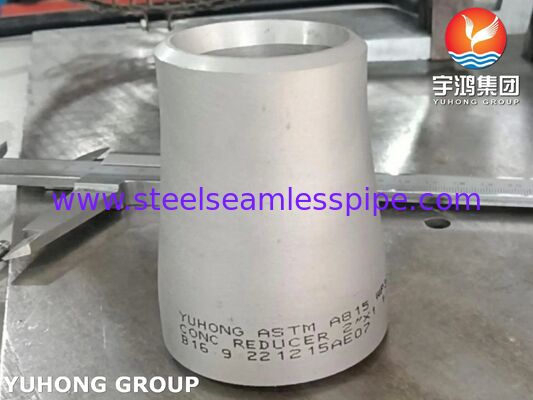

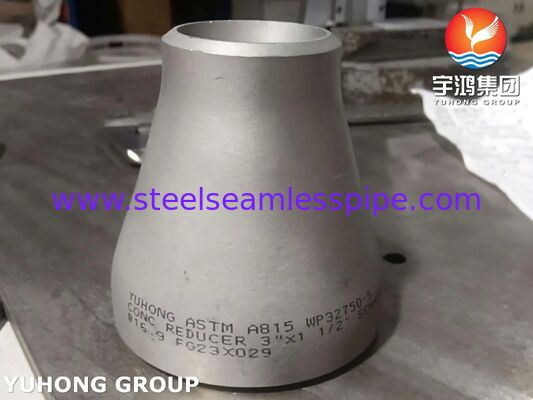

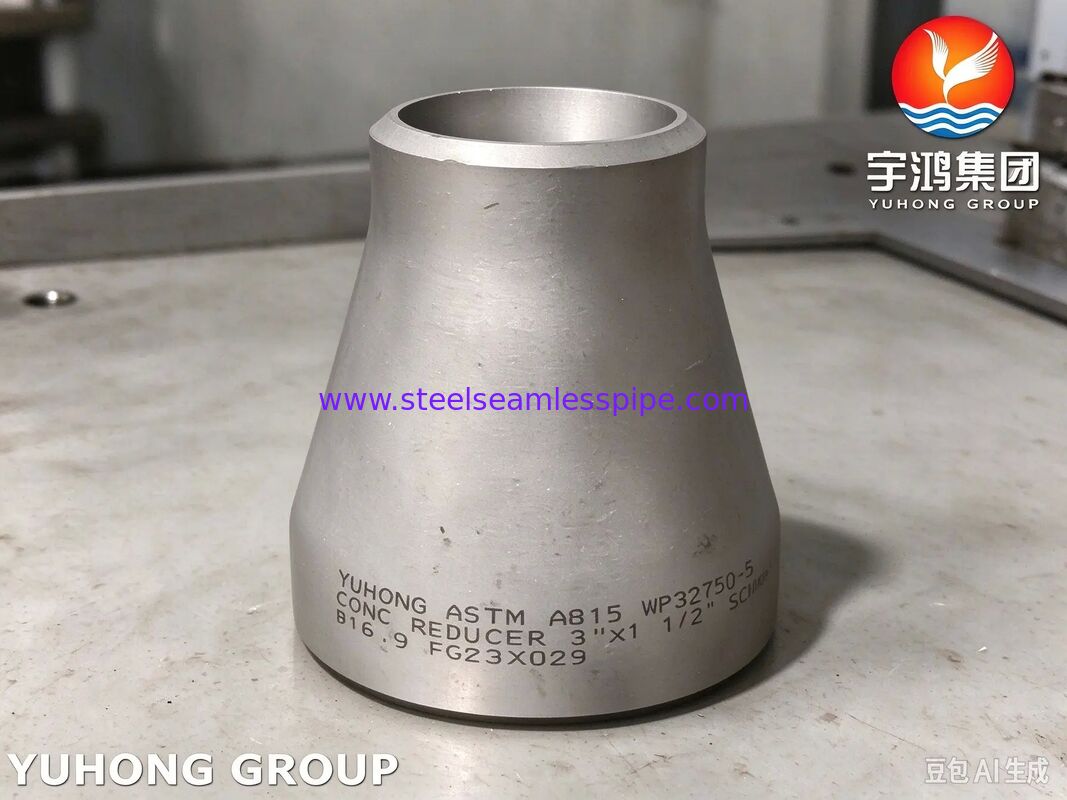

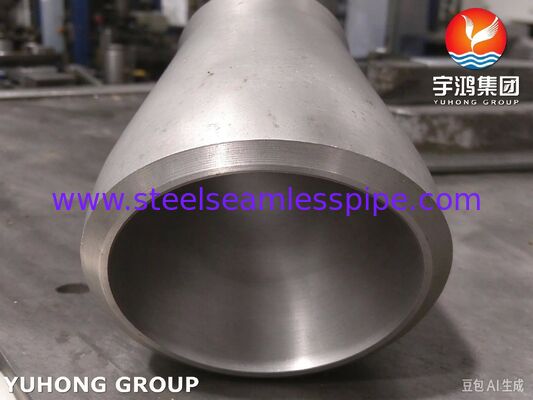

ASTM A815 UNS S32750/ WPS32750 Super Duplex 2507 Buttweld Pipe Fittings Concentric Reducer
This concentric reducer is machined and formed from SAF 2507 (UNS S32750) super duplex stainless steel to the chemistry, heat-treatment and dimensional requirements of ASTM A815 WPS32750. It steps a larger run pipe down to a smaller bore on a common centre line, so the flow stays symmetrical through the transition instead of being pushed to one side. With a Pitting Resistance Equivalent Number of roughly 42, the fitting keeps its passivity in chloride levels that pit 316L and outlast 2205 duplex in wet CO2, chlorinated seawater and chloride-bearing process streams.
Why concentric rather than eccentric here?
A concentric reducer keeps both pipe bores on the same axis. The reduction is spread evenly around the circumference, which means the velocity profile leaving the reducer stays uniform and there is no single-sided impingement point for erosion or cavitation to start from. That matters on pump suction headers, vertical risers, manifold branches and any line where the downstream equipment sees the discharge directly.
Eccentric reducers exist for a different reason: flat-bottom installation on horizontal liquid lines so the line drains completely and no gas pocket is trapped under the taper. Where free drainage or vapour relief governs the design, specify eccentric. Where flow symmetry and compact centre-line routing govern it, this concentric type is the correct choice.
Equivalent Grades of ASTM A815 UNS S32205 Super Duplex BW Pipe Fitting
| STANDARD |
WERKSTOFF NR. |
SAF |
UNS |
| Super Duplex |
DIN 1.4410 |
2507 |
S32750 |
Chemical Composition of ASTM A815 UNS S32205 Super Duplex BW Pipe Fitting
| Chemical Element |
C |
Cr |
Mn |
Si |
P |
S |
Ni |
N |
Mo |
Cu |
Fe |
| % Present |
0.0 - 0.03 |
24.00 - 26.00 |
0.0 - 1.20 |
0.0 - 0.80 |
0.0 - 0.04 |
0.0 - 0.02 |
6.00 - 8.00 |
0.24 - 0.32 |
3.00 - 5.00 |
0.0 - 0.50 |
Balance |
Mechanical and Physical Properties of ASTM A815 UNS S32205 Super Duplex BW Pipe Fitting
| Mechanical Property |
Proof Stress |
Tensile Strength |
Elongation A50 mm |
Hardness Brinell |
| Value |
550 Min MPa |
800-965 MPa |
15 Min % |
310 Max HB |
| Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
| UNS S32750 |
7.8 |
0.281 |
1350 |
2460 |
Ordering information
To quote accurately, we need the run and branch sizes, schedule or wall thickness of the connecting pipe, end preparation, quantity and any project specification that governs testing. Marking is to ASME/ANSI B16.9 dimension standard, heat number traceability, and each piece ships with its mill certificate linked to that heat number.
Tell us the line class and the service conditions — chloride level, temperature and whether sour service applies — and we will confirm the grade, schedule and test package that fits, with dimensional drawings issued for approval before production.
Applications
1. Offshore Oil & Gas (subsea pipelines, manifolds, topsides)
2. Seawater Handling (cooling, desalination, ballast)
3. Chemical & Petrochemical Processing (aggressive chlorides, acids)
4. Pulp & Paper Industry (bleach plants)
5. Flue Gas Desulfurization (FGD)
6. High-pressure/high-corrosion environments
