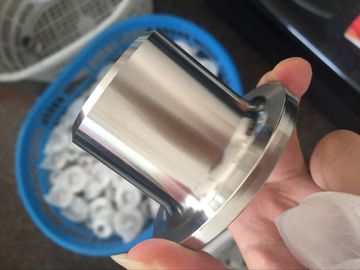

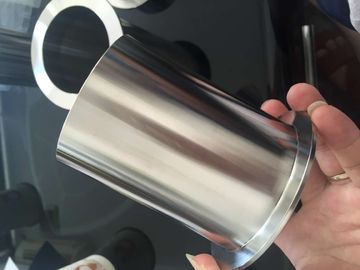

Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L

Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L

    • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
    • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
    • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
    • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
    • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L
  • Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L

    Product Details:

    Place of Origin: China, USA, Korea, UE
    Brand Name: YUHONG SPECIAL STEEL
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6, 316L, 304L, 321, 321H.

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KGS
    Price: YUHONG HOLDING GROUP CO.,LTD
    Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
    Payment Terms: T/T, L/C
    Supply Ability: 1PC
    Contact Now
    Detailed Product Description
    Material: WP304L A403-WP316. A403-WP316L A420-WPL6, 316L, 304L, 321, 321H.WP904L Standard: ASTM B366 , ASTM A403, ASTM A234
    Type: Type A, Type B, Type C, Type D Packing: PLY-WOODEN CASE

    Lap Joint Stub Ends stainless steel butt weld pipe fittings ASTM B366 UNS NO8904L



    Stub ends ANSI B 16.9
    Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint. Our high quality stub ends (Butt weld fittings) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.

    Butt Weld Fittings,Stub Ends,A234-WP11 A234-WP22 A234-WP5, A234-WP9, A234-WP91,Type A,Type B,Type C,Type D,B16.9


    Prosaic Steel & Alloys manufactures a wide range of stub ends (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades. Prosaic Steel & Alloys manufactures & supplies high quality stub ends (pipe fittings) that can be used for various applications. Our stub ends are tested and verified for durability, accuracy and precision.
    Prosaic Steel & Alloys manufactures seamless stub ends of long & short radius to MSS and ANSI B 16.9 standard from Schedules 10 to 160.
    Prosaic Steel & Alloys designs & manufactures subtends (pipe fitting) of special type made according to drawing on request.

    Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6, 316L, 304L, 321, 321H.
    Size: 1/2" - 24"
    Types: Type A, Type B, Type C, Type D
    Manufacturing standard: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, etc.
    Surface treatment: Shot blasted, rust-proof black oil



    INCHESMETRIC
    N.B.O.D. At BevelFRad. Of Fillet RDia of Lap GO.D. Of Barrel N.B.O.D. At BevelFRad. Of Fillet RDia of Lap GO.D. Of Barrel
         Max.Min.     Max.Min.
    1
    -
    2
    0.8431
    -
    8
    1 3/80.90.811521.3476.23.1834.9322.7620.55
    3
    -
    4
    1.0531
    -
    8
    1 11/161.111.022026.6776.23.1842.8628.0925.88
    11.3241
    -
    8
    21.381.282533.4101.63.1850.834.9532.61
    1 1/41.6643
    -
    16
    2 1/21.721.633242.16101.64.7663.543.5941.38
    1 1/21.941
    -
    4
    2 7/81.971.874048.26101.66.3573.0349.9447.47
    22.3865
    -
    16
    3 5/82.462.345060.33152.47.9492.0862.3859.54
    2 1/22.8865
    -
    16
    4 1/82.972.846573.03152.47.94104.7875.3472.24
    33.563
    -
    8
    53.63.478088.9152.49.5312791.3488.11
    3 1/2463
    -
    8
    5 1/24.13.9790101.6152.49.53139.7104.04100.81
    44.567
    -
    16
    6 3/164.594.47100114.3152.411.11157.16116.66113.51
    55.5687
    -
    16
    7 5/165.685.53125141.3203.211.11185.74144.35140.51
    66.6381
    -
    2
    8 1/26.746.59150168.28203.212.7215.9171.27167.49
    88.6381
    -
    2
    10 5/88.748.59200219.08203.212.7269.88222.07218.29
    1010.75101
    - 2
    12 3/410.9110.72250273.0525412.7323.85277.19272.26
    1212.75101
    -
    2
    1512.9112.72300323.8525412.7381327.99323.06
    1414121
    -
    2
    16 1/414.1713.97350355.6304.812.7412.75359.92354.81
    1616121
    -
    2
    18 1/216.1815.97400406.4304.812.7469.9410.97405.61
    1818121
    -
    2
    2118.1917.97450457.2304.812.7533.4462.03456.41
    2020121
    -
    2
    2320.2419.97500508304.812.7584.2514.1507.21
    2222121
    -
    2
    25 1/422.2421.97550558.8304.812.7641.35564.9558.01
    2424121
    -
    2
    27 1/424.2423.97600609.6304.812.7692.15615.7608.81


    904L APPLICATION :

    Production and transport of sulfuric acid
    Metal pickling in sulfuric acid
    Production and concentration of phosphoric acid
    Use in seawater, brackish water, condensers, heat exchangers and pipe work in general
    Paper and allied industries
    Gas washing
    Chemical and pharmaceutical industries
