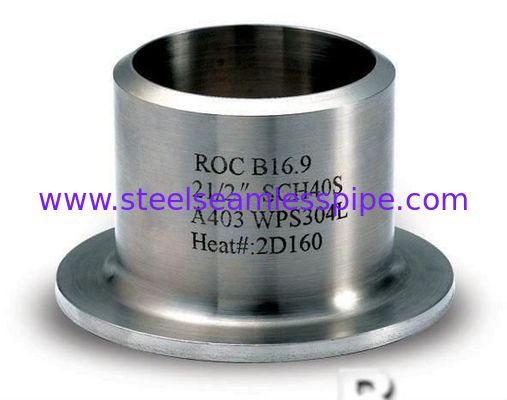

Flange lap joint in welding , steel lap joint flange for pipes and tube

Flange lap joint in welding , steel lap joint flange for pipes and tube

  • Flange lap joint in welding , steel lap joint flange for pipes and tube
  • Flange lap joint in welding , steel lap joint flange for pipes and tube
  • Flange lap joint in welding , steel lap joint flange for pipes and tube
  • Flange lap joint in welding , steel lap joint flange for pipes and tube
  • Flange lap joint in welding , steel lap joint flange for pipes and tube
  • Flange lap joint in welding , steel lap joint flange for pipes and tube
Flange lap joint in welding , steel lap joint flange for pipes and tube
Product Details:
Place of Origin: China,
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A234 WPB , ASTM A860, ASTM A420
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: YUHONG HOLDING GROUP CO.,LTD
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7DAYS
Payment Terms: T/T, L/C
Supply Ability: 1PC
Contact Now
Detailed Product Description
Material: WPB , WPC , WPHY 42, WPHY 46, WPHY52, WPHY 56, WPHY 60 , WPHY 65 , WPHY 70 , WPHY 80 Standard: ASTM A234 , ASTM A860, ASTM A420
Size: 1/4" To 100" Sch10s To XXS Surface: Black Painting Or Other Color Coating
High Light:

carbon steel fittings

,

butt welding fittings

Flange lap joint in welding , steel lap joint flange for pipes and tube

Products information:
Size : 1/8"NB TO 100"NB


Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer
Standard

  • ASTM / ASME SB 336.
  • UNS 10276 (HASTELLOY C 276 Reducer)
  • UNS 2200 (NICKEL 200 Reducer),
  • UNS 2201 (NICKEL 201 Reducer),
  • UNS 4400 (MONEL 400 Reducer),
  • UNS 8020 (ALLOY 20 Reducer),
  • UNS 8825 (INCONEL 825 Reducer),
  • UNS 6600 (INCONEL 600 Reducer),
  • UNS 6601 (INCONEL 601 Reducer),
  • UNS 6625 (INCONEL 625 Reducer),

Value Added Services

  • Hot Dip Galvanizing
  • Epoxy Coating

Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B



Carbon Steel Pipe Fitting - Lap Joint

Flange lap joint in welding , steel lap joint flange for pipes and tube 0

Standard

Nominal
Pipe
Size
Outside
Diameter
Inside
Diameter
Wall and Lap
Thickness
Lap
Diameter G
Fillet
Radius R
Overall
Length
Pipe
Schedule
Weight in
Pounds
1/2 0.84 0.622 0.109 1.38 0.12 3 40 0.3
3/4 1.05 0.824 0.113 1.07 0.12 3 40 0.4
1 1.32 1.05 0.133 2 0.12 4 40 0.75
1 1/4 1.66 1.38 0.14 2 .50 0.19 4 40 1.1
1 1/2 1.9 1.61 0.145 2.88 0.25 4 40 1.25
2 2.38 2.07 0.154 3.63 0.31 6 40 2.25
2 1/2 2.88 2.45 0.203 4.13 0.31 6 40 3.5
3 3.5 3.07 0.216 5 0.38 6 40 4.75
3 1/2 4 3.55 0.226 5.5 0.38 6 40 6
4 4.5 4.03 0.237 6.12 0.44 6 40 7.25
5 5.56 5.05 0.258 7.31 0.44 8 40 12
6 6.63 6.07 0.28 8.5 0.5 8 40 16
8 8.63 7.98 0.322 10.63 0.5 8 40 23
10 10.75 10.02 0.365 12.75 0.5 10 40 36
12 12.75 12 0.375 15 0.5 10 * 47

Extra Strong

Nominal
Pipe
Size
Outside
Diameter
Inside
Diameter
Wall and Lap
Thickness
Lap
Diameter G
Fillet
Radius R
Overall
Length
Pipe
Schedule
Weight in
Pounds
1/2 0.84 0.546 0.147 1.38 0.12 3 80 0.38
3/4 1.05 0.724 0.154 1.69 0.12 3 80 0.51
1 1.32 0.957 0.179 2 0.12 4 80 1
1 1/4 1.66 1.28 0.191 2.5 0.19 4 80 1.25
1 1/2 1.9 1.5 0.2 2.88 0.25 4 80 1.75
2 2.38 1.93 0.218 3.63 0.31 6 80 3
2 1/2 2.88 2.32 0.276 4.13 0.31 6 80 4.5
3 3.5 2.9 0.3 5 0.38 6 80 6.5
3 1/2 4 3.36 0.318 5.5 0.38 6 80 7.75
4 4.5 3.83 0.337 6.19 0.44 6 80 9.5
5 5.56 4.81 0.375 7.31 0.44 8 80 17
6 6.63 5.76 0.432 8.5 0.5 8 80 23
8 8.63 7.63 0.5 10.63 0.5 8 80 32
10 10.75 9.75 0.5 12.75 0.5 10 60 53
12 12.75 11.75 0.5 15 0.5 10 * 62

Flange lap joint in welding , steel lap joint flange for pipes and tube 1
