|Place of Origin:||China, India, USA, Korea, UE|
|Brand Name:||YUHONG SPECIAL STEEL|
|Certification:||ISO9001-2008, API 5L, API 5CT|
|Model Number:||API 5CT TUBING L-80, C-90, T-95, P-110, Q-125, NF M87-207, BS EN ISO 11960, SY / T 6194|
|Minimum Order Quantity:||5 tons|
|Packaging Details:||Ply-wooden Case /Iron Case/ Bundle with plastic Cap|
|Payment Terms:||T/T, L/C|
|Supply Ability:||15000 tons per month|
carbon steel tubing,
carbon steel tubes

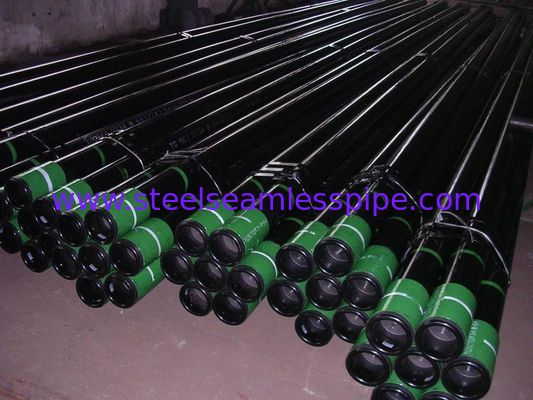

API 5CT TUBING L-80, C-90, T-95, P-110, Q-125, NF M87-207, BS EN ISO 11960, SY / T 6194
Application:Tube for conveying gas, water, and oil in both and natural gas industries etc.
Casing:Casing is a large diameter pipe that serves as the structural retainer for the walls of oil and gas
wells, or well bore.It is inserted into a well bore and cemented in place to protect both subsurface
formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take
place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi.
Tubing: Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to
the surface after drilling is complete. It is made to withstand the pressure generated from the extraction
process. Tubing is manufactured in the same way as casing, except that an additional process known as
"upsetting" is applied to thicken the pipes.
SY/T 6194 :Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
API 5CT :CASING AND TUBING
BS EN ISO 11960 :Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
NF M87-207 :Petroleum and natural gas industries - Steel pipes for use as casing or tubing for wells
JIS G3439 :SEAMLESS STEEL OIL WELL CASING, TUBING AND DRILL PIPE
IS:4270:Steel tubes for well spainend casing pipes
Steel Grade:H-40, J-55, K-55, M-65,N-80, C-75, L-80, C-90, T-95, P-110,Q-125
Process: ERW and Seamless
Outer Diameter:Casing: OD 4 1/2"- 20" (114.3mm-508mm)
Tubing: OD 2 3/8" - 4 1/2" (60.3mm-114.30mm)
Wall Thickness: 0. 205"- 0.635"
Length: R1(4.88mtr-7.62mtr), R2(7.62mtr-10.36mtr), R3(10.36mtr or longer)
Connection: Casing: LTC, STC, BTC, VAM.Tubing: NUE, EUE.
End: Beveled, Square cut. And pipe protection cap specially for casing and tubing.
Surface: Corrosion proofing water based paint
Heat treatment: Normalized, Quencher+Temper
Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags
on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips
1>.Chemical Component Analysis.
2>.Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation).
3>.Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc).
4>.Exterior Size Inspection.
5>.Nondestructive Test (Ultrasonic flaw detector, Eddy current flaw detector), Hydrostatic Test.
Mill Test Certificate: EN 10204/3.1B
Section: Seamless & Welded
API Specification 5CT latest edition at time of manufacture (PSL-1, PSL-2, PSL, 3)
ISO 11960:2004, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells
Outside Diameter: 1.660" - 30"
H40, J55, K55, N80,N80Q, L80, C90, C95, T95, P110, Q125,SS95,SS110, 9%CR, 13%CR
And almost any premium & gas tight connection
Range 1, Range 2 & Range 3:
See our Standard Inspection Scope
External bare and uncoated or externally coated with black/ transparent anti rust Mill varnish
Plastic or Metal Pin and Box Protectors.
Internal plastic coating or sleeves.
Mill Test Certificates:
Issued in accordance with API Specification 5CT Eighth Edition
Additional Third Party Inspection can also be performed on request.
Some of the OCTG tubing and casing available for your company’s requirements include:
