| Place of Origin: | China, USA, Korea, UE |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B444 GR.2 INCONEL 625 , 2.4856 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |

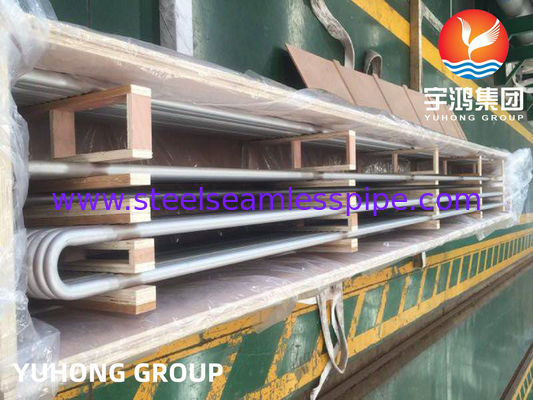

| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM B444 GR.2 INCONEL 625 , 2.4856 | Grade: | GR.2 INCONEL 625 , 2.4856 |
|---|---|---|---|
| Size: | OD:3MM TO 530MM ,WT:0.2MM TO 60MM, L:MAX 50M | PACKING: | Ply-wooden Case Or Iron Case |
| High Light: | heat recovery pipe,seamless stainless steel tube |
||

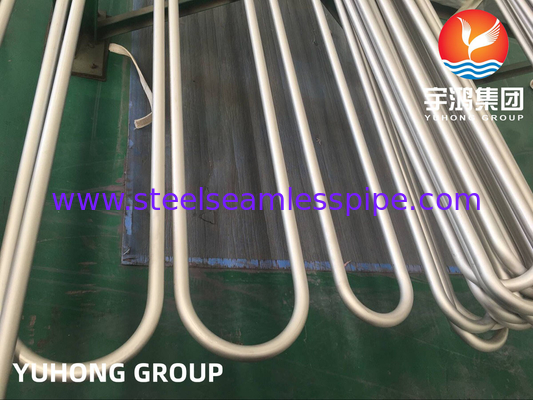

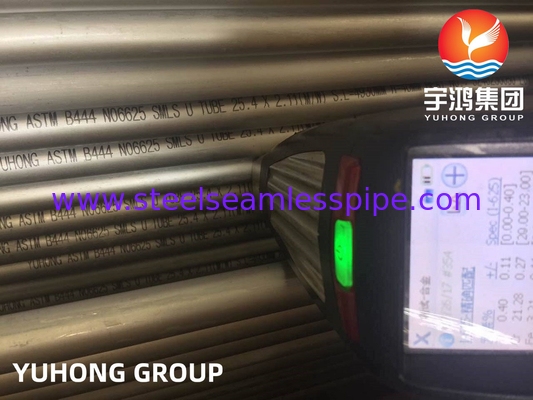

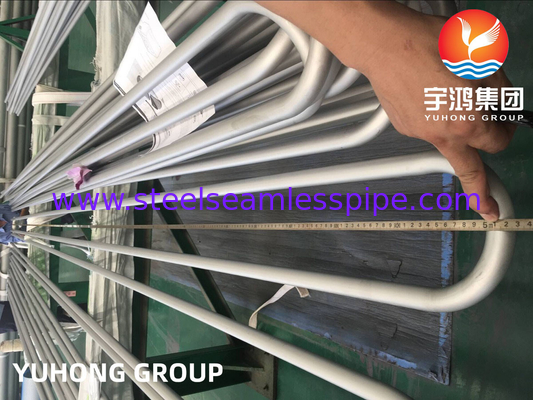

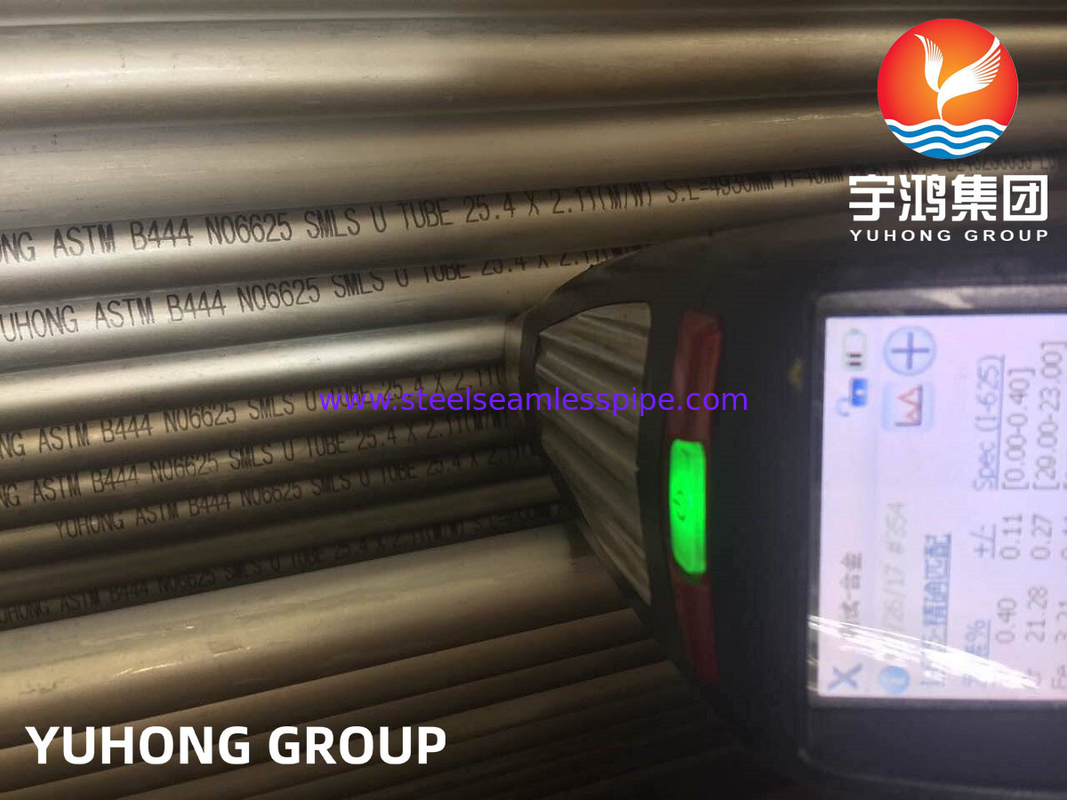

ASTM B444 Gr.2 INCONEL 625 seamless tube, 25.4 X 2.11 X 6096MM , heat Exchanger Application , 100% UT & ET & HT
Yuhong Group has more than 26 years experience for heat exchanger tube / boiler tube/ cooling tube,
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hastelloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
Advantage Products: (Boiler & Heat Exchanger & Condenser Tube):
ASTM A213(TP304,TP304L,TP304H,TP310S,TP316L,TP316Ti, TP317/L, TP321/H, TP347/H)
ASTM A249(TP304,TP304L,TP316L, TP321/H)
ASTM A789(S31803(2205), 32750(2507), S31254(254MO),S32304)
ASTM B163/B167/B444 for Nickel Alloy Steel Tube
ASTM B677 UNS NO8904(904L)
ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Other Standard: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
| C | MN | P | S | Si | Cr | Ni | Mo | Cu | Co | Cb Ta | Ti | Al | Fe | Nb | Other |
| 0.1 | .50 max | .015 max | .015 max | .50 max | 20.0 -23.0 | 58.0 min | 8.0 -10.0 | 1.0 max | 0.40 max | 0.40 max | 5.0 max | 3.15 -4.15 |
Specifications
| International Specifications | Sheet/Plate | Round Bar | Pipe | Tube | Fittings | Forgings |
| BS 3072, BS 3074, BS 3076, NA 21 DIN 17744, DIN 17750, DIN 17751, DIN 17752, DIN 17754. Werkstoff Nr. 2.4856 AFNOR NC 22 D Nb | ASME SB-443 AMS 5599 AMS 5869 | ASME SB-446 AMS 5666 AMS 5837 | ASME SB-444 ASME SB-829 ASME SB-775 ASME SB-705 | ASME SB-444 ASME SB-829 ASME SB-751 ASME SB-704 AMS 5581 | ASME SB- 366 | ASME SB- 564 AMS 5666 |
Inconel 625 Alloy is frequently used for:
