Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, India, USA, Korea, UE |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A249 TP304/304L , TP316/316L TP321/321H |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10days-> |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Material Grade: | TP304, TP304L, TP316L, TP316Ti, TP310S, TP317L, TP321H, TP347H | Standard: | ASTM A269 , ASME SA269 , EN10216-5 |
|---|---|---|---|
| Type: | Seamless And Welded | Testing: | Eddy Current Test, Hydrostatic Test, Ultrasonic Test |
| High Light: | bright annealed stainless steel tube,stainless steel coil tube |
||

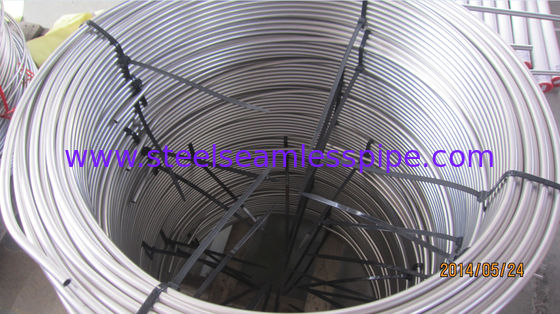

Stainless Steel Coil Tubing , A213/A269 TP304L /TP316L 6.35mm , 9.52mm, 12.7mm , bright annealed
YUHONG GROUP deal with stainless steel welded tube already more than 30 years, every year sell more than 5000 tons of stainless steel pipes and tubes. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
Advantages:
1.reduce your cost
2. improve the security
3. compact package for shipment and storage
Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x(C+N) |
| TP321/1.4541 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP317L/1.4449 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 22.0-24.0 | 12.0-15.0 | 0.75 | |
| TP310S/1.4845 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
Product Dimension:
|
SIZE |
4.76*0.71mm/4.76*0.89mm/4.76*1.24mm |
| 6*1mm/6*1.5mm | |
| 6.35*0.71mm/6.35*0.89mm/6.35*1.24mm/6.35*1.65mm | |
| 7.94*0.71mm/7.94*0.89mm/7.94*1.24mm/7.94*1.65mm | |
| 9.53*0.71mm/9.53*0.89mm/9.53*1.24mm/9.43*1.65mm | |
| 10*1mm/10*1.5mm | |
| 12*1mm/12*1.5mm/12*2mm | |
| 12.7*0.71mm/12.7*0.89mm/12.7*1.24mm/12.7*1.65mm/12.7*2.11mm | |
| 14*1mm/14*1.5mm/14*2mm | |
| 15.88*0.89mm/15.88*1.24mm/15.88*1.65mm/15.88*2.11mm | |
| 16*1mm/16*1.5mm/16*2mm | |
| 19.05*0.89mm/19.05*1.24mm/19.05*1.65mm/19.05*2.11mm | |
| 25.4*0.89mm/25.4*1.24mm/25.4*1.65mm/25.4*2.11mm |
