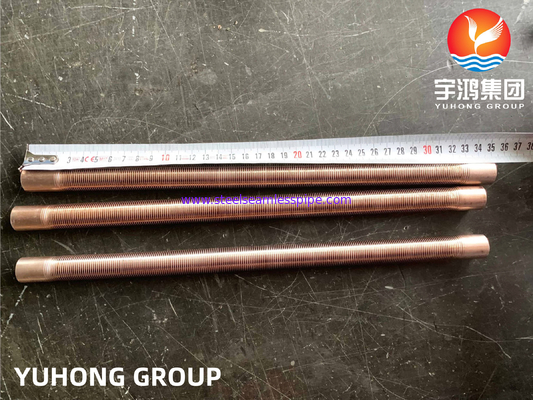

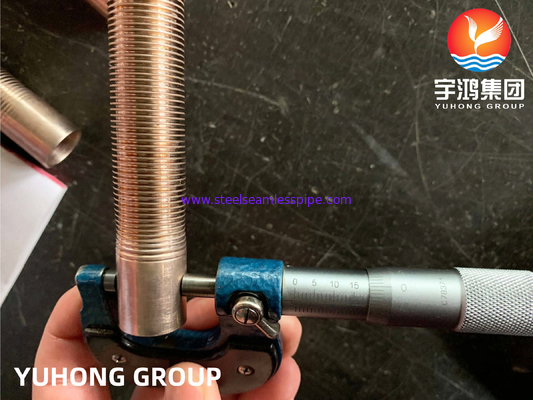

CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube

CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube

  • CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube
  • CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube
  • CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube
CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: L Type Fin Tube,Tension Wound
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: Ply-wooden Case /Iron Case/ Bundle Package
Delivery Time: 7DAYS
Payment Terms: L/C, D/A, D/P, T/T
Contact Now
Detailed Product Description
Material: UNS12200/UNS14200/UNS70600, CuNi70/30,CuNi 90/10 Aluminum: Alu.1100,Alu.1060
Titanium: Gr. 2,Gr.7,GR.12 Fin Type: Spiral Extruded/STUD Finned Tube
High Light:

extruded finned tube

,

heat exchanger fin tube

CuNi 90/10 Shape Type Heat Exchanger Fin Tube Finned Copper Tube





Quick Detail:



General L-type production capacity General specifications of L type fin tubes

Finning Facility: 7 finning machines;

Daily capacity up to 5000 meters;

Fin type: Solid plain

Tube OD: 16mm Min~50.8mm max.

Tube Length: 18,000mm max.

Fin Height: 16.5 mm max.

Fin Thickness: generally 0.4mm ~0.6mm

Fin Pitch: 2.1 mm (12FPI) min.



Manufacturing process: The fin strip (normally aluminum and copper) is folded into an L SHAPE and wound onto the base tube surface under tension. The feet of the fins are joined together and cover the finned surface.





Surface Protection

Both bare ends shall be Zinc or Aluminum metalized applied by an electro spray arc system coating.



Acceptance Criteria

API Standard 661(Air-Cooled Heat Exchangers for General Refinery Service) or the delivery conditions (TDC).



Accessories

Tube Support Box, Clamp or Spacer Box (Material: Aluminum, Zinc and Stainless Steel).



Delivery Condition

Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of L Type Tension Wound Finned Tube.

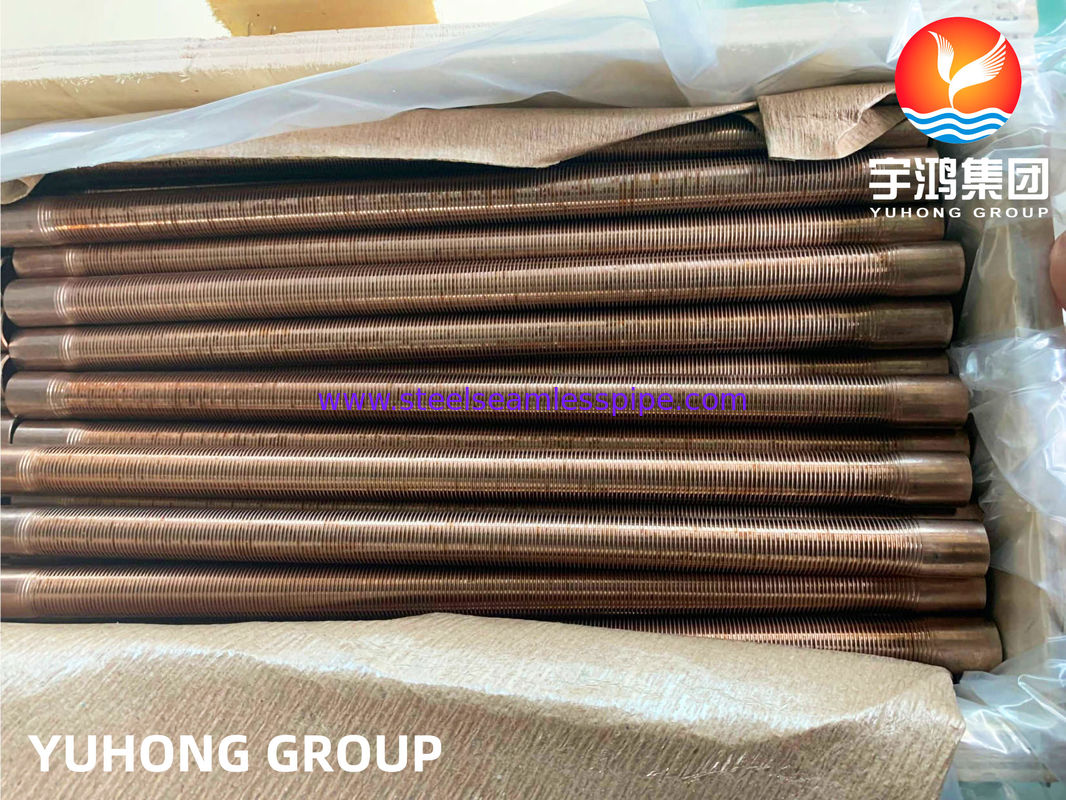

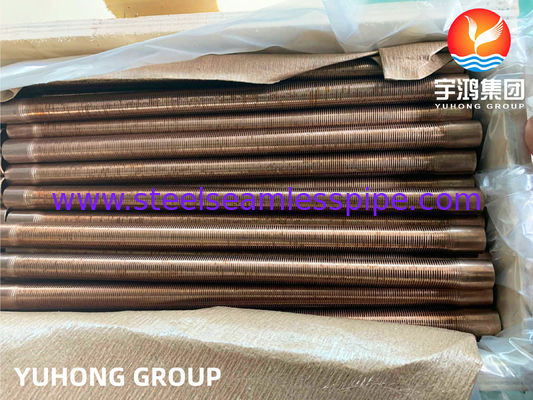

Packing:

The desiccants are put into each package for continental transportation as well.



Applications:



The common application fields are:

  1. Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);
  2. High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
  3. The petroleum, chemical and petrochemical industries;
  4. The food processing and refrigeration industries;
  5. Natural gas treatment;



Specifications:



L Type Tension Wound Tube is combined with two different materials.



Items General Materials Popular ASTM Materials
Core Tube Material Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2

Fins Material Aluminum & Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.





All dimensions are in Inches and specification upon your requests.
Tube OD Fin Height Fin Thickness Fins per Pitch
5/8 3/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
3/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/4 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
1 1/2 5/8,1/2 .015/.016/ .020 6, 7, 8, 9, 10, 11, 12
Pease email us for more information.





Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 7 finning machines, daily production capacity up to 5,000 meters.
  2. The finning machines are designed and assembled by ourselves (YUHONG) and we can offer you finning machines and all accessories etc...
  3. This method of manufacturing L tension type enables us to place the finning on a very thin-walled tube with is particularly desirable when using high value alloys (titanium, stainless, copper, nickel).The tube can withstand a temperature of up to 150°C without the risk of atmospheric corrosion or thermal stress.
  4. L TYPE fin tubes provide contact area between the fin strip and the tubes surface and protect the tube wall from atmosphere corrosion. This L TYPE design is much economical than LL, KL, even G-embedded type.
