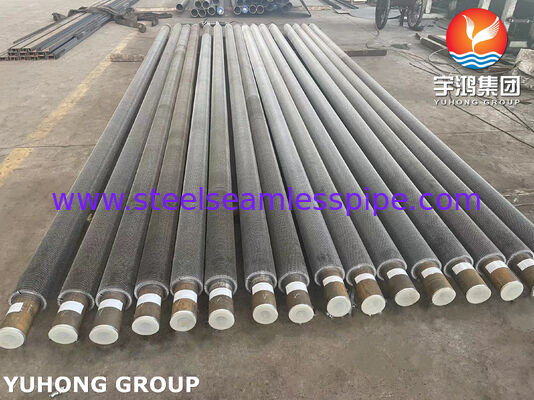

ASTM A335 P9 Serrated Finned Tubes for Waste Heat Recovery Systems
Product Overview
ASTM A335 P9 serrated finned tubes are high-temperature heat-transfer tubes engineered for demanding waste heat recovery systems, boiler economizers, HRSGs, fired heaters, and industrial heat-recovery equipment. The tube uses ASTM A335 P9 alloy steel, a chromium-molybdenum material developed for elevated-temperature service, while the serrated fin geometry significantly increases the external heat-transfer surface.
In waste heat recovery applications, hot exhaust or flue gas passes over the finned tube surface while water, steam, thermal fluid, or another process medium flows through the tube. The increased fin area allows more heat to be recovered within a relatively compact heat-exchanger package.
The serrated design incorporates regularly spaced interruptions in the fin strip. Compared with a continuous solid fin, these openings can promote gas-side turbulence and improve contact between the hot gas and fin surface. This makes serrated finned tubes particularly suitable where high heat-transfer performance, compact equipment, and resistance to elevated-temperature service are required.
Why Use ASTM A335 P9 Serrated Finned Tubes?
ASTM A335 P9 is a chromium-molybdenum alloy steel containing approximately 9% chromium and 1% molybdenum. The alloy provides a combination of elevated-temperature strength, oxidation resistance, and durability that is useful in high-temperature heat-recovery equipment.
The serrated fin construction provides several practical advantages:
- High external heat-transfer area for gas-side heat recovery
- Improved gas turbulence compared with a smooth tube
- Suitable for high-temperature exhaust and flue-gas environments
- Good mechanical strength at elevated operating temperatures
- Chromium content provides improved resistance to high-temperature oxidation
- Compact heat-exchanger design with a high surface-area-to-volume ratio
- Suitable for economizers and other waste heat recovery sections
- Available in customized tube, fin, and length configurations
Typical Applications
ASTM A335 P9 serrated finned tubes are commonly considered for:
1. Waste Heat Recovery Systems
They are used to recover thermal energy from hot exhaust gases generated by gas turbines, industrial furnaces, process equipment, engines, and other high-temperature systems.
2. Boiler Economizers
Serrated finned tubes can be used in economizer sections to transfer heat from flue gas to boiler feedwater, reducing the amount of fuel required to produce steam.
3. HRSG Systems
In heat recovery steam generators, finned tubes are used in heat-transfer sections exposed to turbine exhaust gas. P9 is particularly relevant where elevated-temperature alloy-steel construction is required.
4. Fired Heaters and Process Furnaces
Waste heat from combustion gases can be recovered through finned-tube heat-transfer sections, improving overall thermal efficiency.
5. Refinery and Petrochemical Heat Recovery
Refineries and petrochemical plants generate large quantities of high-temperature process and combustion gases. Serrated finned tubes can be incorporated into heat-recovery equipment to recover this otherwise wasted energy.
6. Industrial Heat Exchangers
They can also be applied to custom gas-to-liquid or gas-to-steam heat exchangers where the gas-side heat-transfer coefficient is relatively low and additional surface area is required.
Typical Construction
A serrated finned tube generally consists of:
ASTM A335 P9 base tube + continuously welded or mechanically attached serrated fin strip
The base tube carries the internal fluid, while the external fins provide additional heat-transfer surface.
Typical design parameters include:
| Parameter |
Common Range / Option |
| Base tube material |
ASTM A335 P9 |
| Tube OD |
Approximately 25.4–63.5 mm |
| Tube wall thickness |
Approximately 2.5–8.0 mm |
| Fin height |
Approximately 10–25 mm |
| Fin thickness |
Approximately 0.8–2.5 mm |
| Fin density |
Approximately 2–6 fins/in |
| Tube length |
Commonly 3–12 m |
| Fin type |
Serrated / segmented |
| Fin attachment |
High-frequency welded or other specified construction |
| Surface |
Bare, shot blasted, coated, or specified finish |
These dimensions are typical engineering ranges rather than ASTM A335 dimensional requirements. The final tube diameter, wall thickness, fin height, fin thickness, fin density, and length should be selected according to the heat-transfer calculation, pressure design, temperature, gas velocity, fouling characteristics, and customer's equipment drawings.
ASTM A335 P9 Chemical Composition
ASTM A335 P9 is a ferritic alloy-steel grade based on a chromium-molybdenum composition. Typical chemical requirements include:
| Element |
Typical ASTM A335 P9 Requirement, % |
| Carbon (C) |
0.15 max. |
| Manganese (Mn) |
0.30–0.60 |
| Phosphorus (P) |
0.025 max. |
| Sulfur (S) |
0.025 max. |
|
Silicon(S)
|
0.5max |
| Chromium (Cr) |
1.9–2.6 |
| Molybdenum (Mo) |
0.87-1.13 |
The exact chemical composition should always be verified against the current applicable edition of ASTM A335/A335M and the purchaser's material specification.
Mechanical Properties
Typical ASTM A335 P9 mechanical requirements include:
| Property |
ASTM A335 P9 Requirement |
| Tensile strength |
415 MPa min. |
| Yield strength |
205 MPa min. |
| Elongation |
30% min. longitudinal* |
| Hardness |
According to applicable ASTM A335 requirements |
*Applicable elongation requirements can vary with specimen orientation and tube dimensions. The final MTC should be checked against the applicable specification and purchase order.
P9's combination of chromium and molybdenum contributes to its performance under elevated-temperature conditions, making it a practical material choice for selected high-temperature heat-recovery applications.
Manufacturing Process
The manufacturing process can be controlled according to the customer's technical requirements:
- P9 tube preparation — ASTM A335 P9 seamless alloy-steel tubes are selected according to the required OD and wall thickness.
- Surface preparation — the tube surface is cleaned to ensure reliable fin attachment.
- Fin strip preparation — steel fin strip is formed and serrated to the specified geometry.
- Fin attachment — the fin is welded or attached to the tube using the specified manufacturing process.
- Dimensional control — tube diameter, wall thickness, fin height, fin thickness, fin spacing, and overall length are inspected.
- Final inspection — the finished finned tube is inspected according to the applicable material standard, customer specification, and purchase requirements.

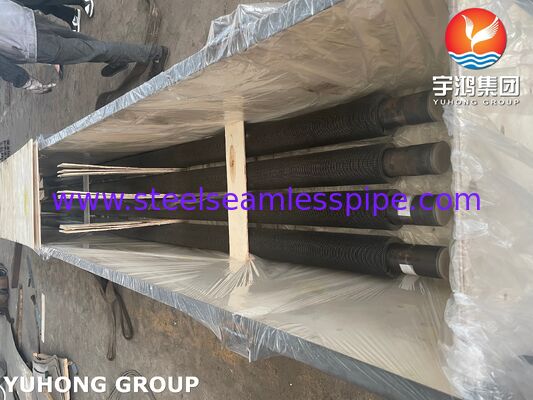

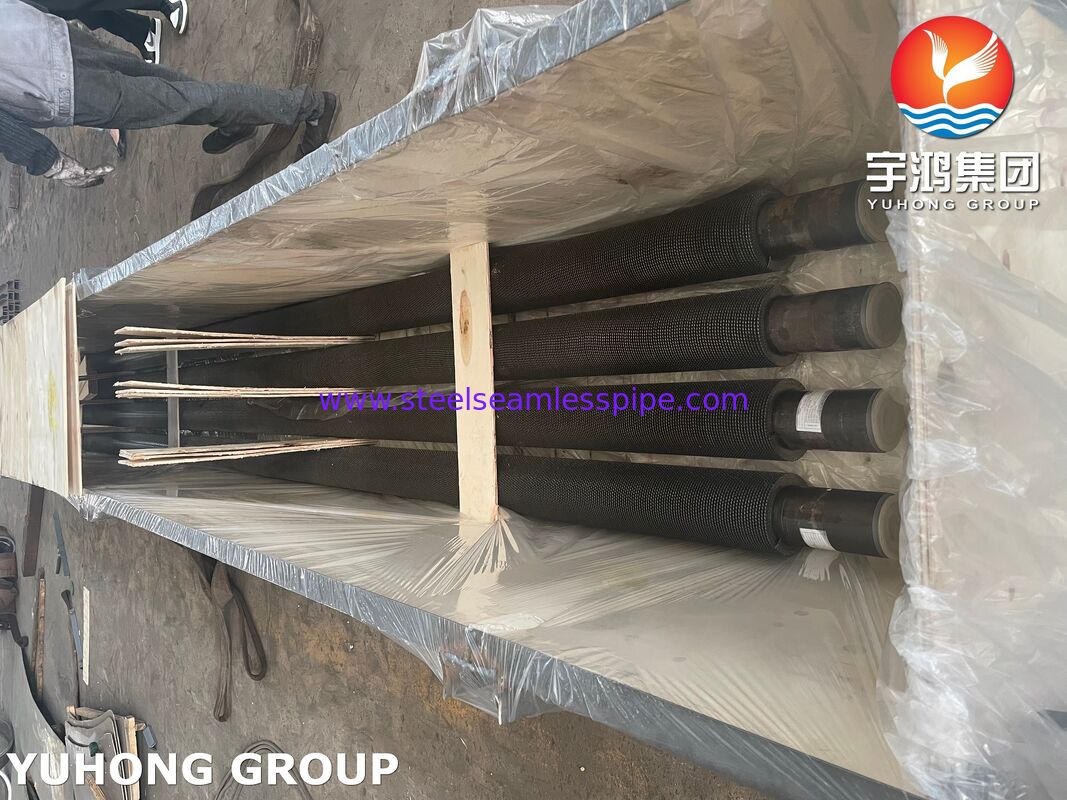

- Marking and packaging — tubes are identified and protected for transportation and installation.
Testing and Inspection
Quality control for ASTM A335 P9 serrated finned tubes can include the following inspections and tests:
Base Tube Inspection
- Chemical composition analysis
- Tensile testing
- Yield-strength testing
- Elongation testing
- Hardness testing
- Hydrostatic or nondestructive electric testing as required by ASTM A335
- Dimensional inspection
- Visual examination
Finned Tube Inspection
- Overall tube length inspection
- Tube OD and wall-thickness inspection

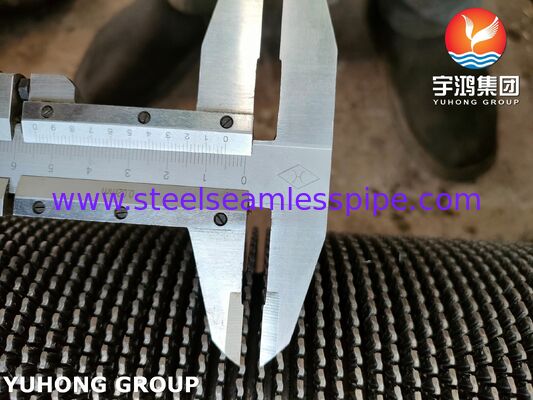

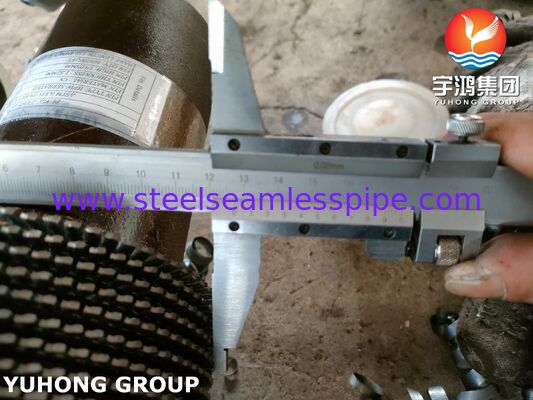

- Fin height measurement
- Fin thickness measurement
- Fin pitch/density measurement
- Fin straightness inspection
- Fin-to-tube attachment inspection
- Visual inspection of weld continuity
- Weld integrity or NDT examination when specified
- Random sampling or 100% inspection according to the purchase specification
For critical waste heat recovery equipment, additional inspection requirements such as ultrasonic testing, radiographic testing, positive material identification, or third-party inspection can be arranged when required by the project specification.
Heat Transfer Advantages
The main reason for using serrated fins is to increase the heat-transfer area exposed to the gas stream.
A smooth tube has a relatively small external surface area. Adding fins substantially increases the available area without requiring a proportional increase in equipment volume. The serrated configuration also creates interruptions in the fin surface, which can disturb the gas boundary layer and promote mixing.
This can be particularly beneficial in waste heat recovery because gas-side heat transfer is often a major limitation in gas-to-liquid and gas-to-steam heat exchangers.
Actual performance depends on:
- Gas temperature
- Gas flow rate
- Gas composition
- Gas velocity
- Internal fluid temperature and flow
- Fin efficiency
- Fin spacing
- Fin height
- Tube diameter
- Fouling and ash loading
- Pressure drop limitations
- Heat-exchanger arrangement
Therefore, fin geometry should be selected based on a complete thermal and mechanical design rather than by fin dimensions alone.
Advantages for Waste Heat Recovery
ASTM A335 P9 serrated finned tubes can offer an effective combination of material strength and enhanced heat-transfer surface for high-temperature applications.
Key benefits include:
High heat-transfer surface: Serrated fins greatly increase the external surface available for gas-side heat transfer.
High-temperature capability: P9 chromium-molybdenum alloy steel is intended for elevated-temperature service.
Improved equipment compactness: More heat-transfer surface can be installed within a given equipment envelope.
Suitable for demanding industrial environments: The alloy composition provides useful resistance to high-temperature oxidation compared with ordinary carbon steel.
Flexible engineering: Tube dimensions and fin geometry can be customized to meet specific heat-transfer and pressure-drop requirements.
Recommended Industries
Potential end users and equipment manufacturers include:
- Power generation
- Combined-cycle power plants
- HRSG manufacturers
- Waste heat recovery equipment manufacturers
- Refineries
- Petrochemical plants
- Chemical processing plants
- Steel and metallurgical industries
- Cement plants
- Industrial furnaces
- Fired-heater manufacturers
- Gas turbine exhaust heat recovery projects
Quality Assurance
Each production batch can be supplied with appropriate quality documentation, including Material Test Certificates (MTC), chemical analysis, mechanical test results, dimensional inspection records, hydrostatic/NDT records where applicable, and inspection certificates according to the agreed purchase specification.
For export and engineering projects, inspection can also be coordinated with independent third-party agencies when required.
Ordering Information
When requesting a quotation for ASTM A335 P9 serrated finned tubes, customers should provide:
- Base tube standard and grade
- Tube outside diameter
- Tube wall thickness
- Tube length
- Fin material
- Fin height
- Fin thickness
- Fin density or pitch
- Fin attachment method
- Required quantity
- Operating temperature
- Operating pressure
- Gas composition and flow conditions
- Applicable inspection standard
- Required certification
- Project drawings or technical specifications
We can manufacture serrated finned tubes according to ASTM/ASME requirements, customer drawings, heat-transfer calculations, and project-specific specifications.
Conclusion
ASTM A335 P9 serrated finned tubes are a specialized heat-transfer solution for high-temperature waste heat recovery. Their combination of a 9Cr-1Mo alloy-steel tube and enlarged serrated external surface makes them particularly suitable for economizers, HRSGs, fired-heater heat recovery, industrial furnaces, and other high-temperature gas-side heat-transfer equipment.
For projects where thermal efficiency, elevated-temperature material performance, compact construction, and reliable fin attachment are important, P9 serrated finned tubes can provide a robust foundation for engineered waste heat recovery systems.
