| Place of Origin: | CHINA |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, BV, DNV, GL, LR, SGS, IEI |

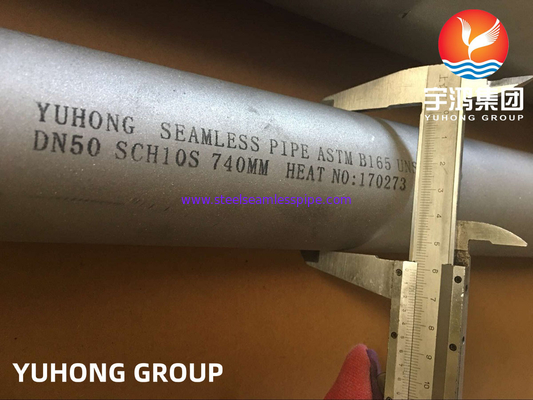

| Model Number: | ASTM B165/ASME SB165 MONEL 400 NICKEL ALLOY PIPE |
| Minimum Order Quantity: | 50KGS |
|---|---|
| Price: | negotiation |
| Packaging Details: | Ply-wooden Case Or Iron Case, Plastic caps on both ends. |
| Delivery Time: | according to quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | ASTM B165/ASME SB165 | Material: | UNS NO4400/MONEL 400/DIN 2.4360 |
|---|---|---|---|
| Packing: | Ply-wooden Case | Length: | 6M Or Specified Length As Required |
| TYPE: | Seamless | End: | PE/BE |
| High Light: | nickel alloy tube,inconel tube |
||
Overview
Monel 400 is a nickel-copper alloy (about 67% Ni – 23% Cu) that is resistant to sea water and steam at high temperatures as well as to salt and caustic solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy exhibits characteristics like good corrosion resistance, good weldability and high strength. A low corrosion rate in rapidly flowing brackish or seawater combined with excellent resistance to stress-corrosion cracking in most freshwaters, and its resistance to a variety of corrosive conditions led to its wide use in marine applications and other non-oxidizing chloride solutions.
Monel 400 has great mechanical properties at subzero temperatures, can be used in temperatures up to 1000° F, and its melting point is 2370-2460° F. However, alloy 400 is low in strength in the annealed condition so, a variety of tempers may be used to increase the strength.
Monel 400 characteristics
1. Resistant to seawater and steam at high temperatures.
2. Excellent resistance to rapidly flowing brackish water or seawater.
3. Excellent resistance to stress corrosion cracking in most freshwaters.
4. Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated.
5. Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations, but is seldom the material of choice for these acids.
6. Excellent resistance to neutral and alkaline salt.
7. Resistance to chloride induced stress corrosion cracking.
8. Good mechanical properties from sub-zero temperatures up to 1020° F.
9. High resistance to alkalis.
Specification
| Standard | ASTM B 165 / ASME SB 165 |
|---|---|
| Material | Monel 400 |
| Outer Diameter | 6.35 mm OD upto 254 mm OD 0.6 TO 20 mm or customed |
| Wall Thickness | 0.6 TO 20 mm or customed |
| Type | Seamless / Welded |
| Form | Round, Hydraulic Etc. |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End |
Chemical Composition
| C | Mn | S | Si | Ni | Cu | Fe |
| 0.30 max | 2.00 max | 0.024 max | 0.50 max | 63.0 min | 28.0-34.0 | 2.50 max |
Mechanical Properties
| Product Form | Condition | Tensile (ksi) | 0.2% Yield (ksi) | Elongation (%) | Hardness (HRB) |
| Rod & Bar | Annealed | 75-90 | 25-50 | 60-35 | 60-80 |
| Rod & Bar | Cold-Drawn Stress Relieved | 84-120 | 55-100 | 40-22 | 85-20 HRC |
| Plate | Annealed | 70-85 | 28-50 | 50-35 | 60-76 |
| Sheet | Annealed | 70-85 | 30-45 | 45-35 | 65-80 |
| Tube & Pipe Seamless | Annealed | 70-85 | 25-45 | 50-35 | 75 max* |
Physical Properties of Monel 400
| density | 8.83g/cm3 |
| Melting point | 1300～1390℃ |
Application
1. Marine engineering.
2. Chemical and hydrocarbon processing equipment.
3. Gasoline and freshwater tanks.
4. Crude petroleum stills.
5. De-aerating heaters.
6. Boiler feed water heaters and other heat exchangers.
7. Valves, pumps, shafts, fittings, and fasteners.
8. Industrial heat exchangers.
9. Chlorinated solvents.
10. Crude oil distillation towers.
