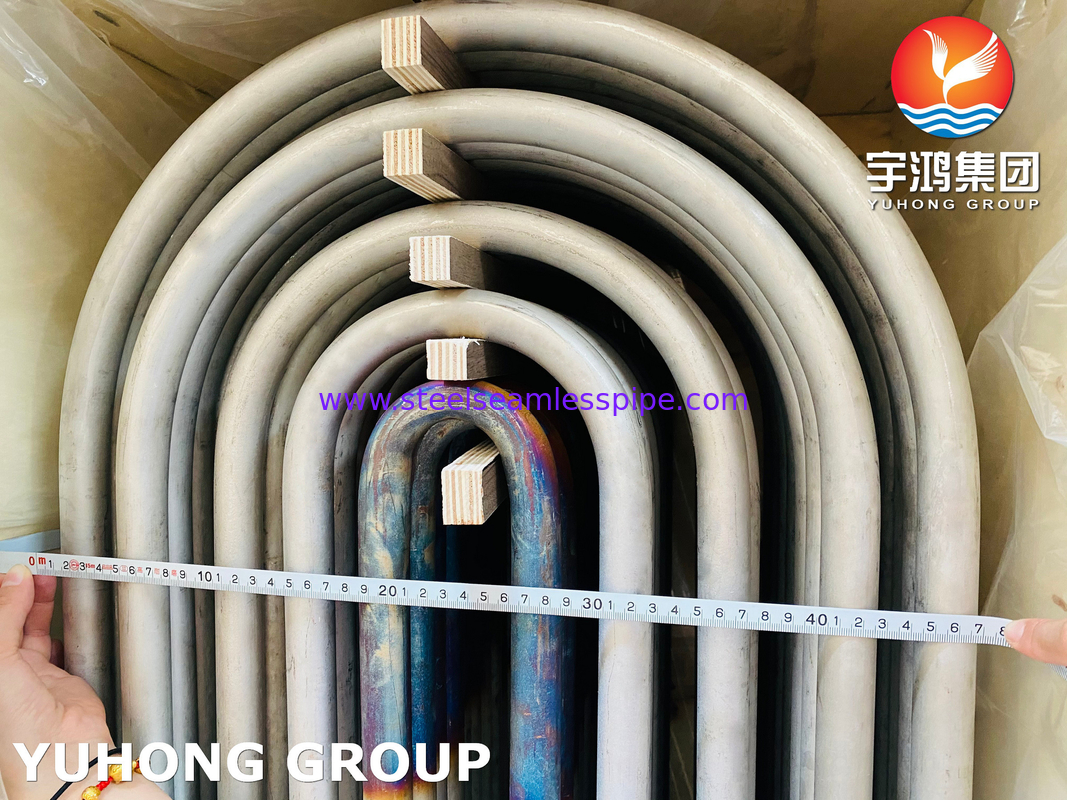

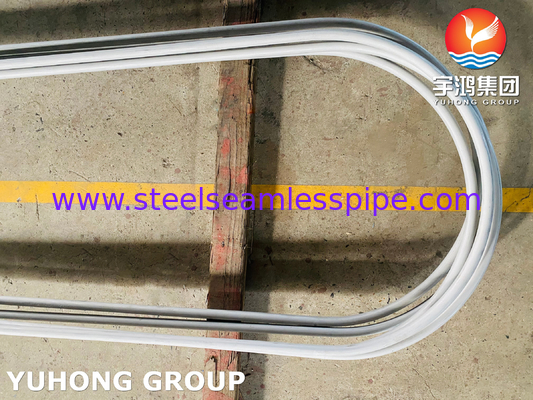

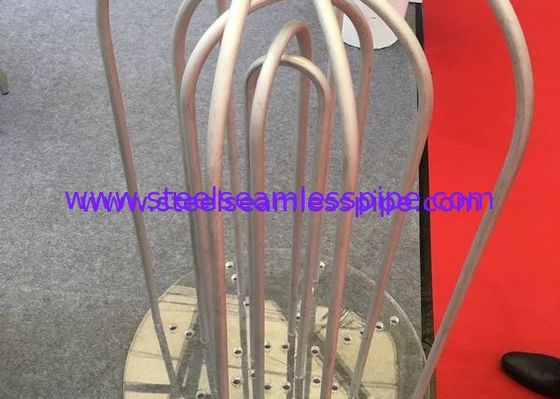

ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm

ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm

  • ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm
  • ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm
  • ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm
  • ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm
ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SB167 UNS NO 6600. UNS6600H
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: negotiable

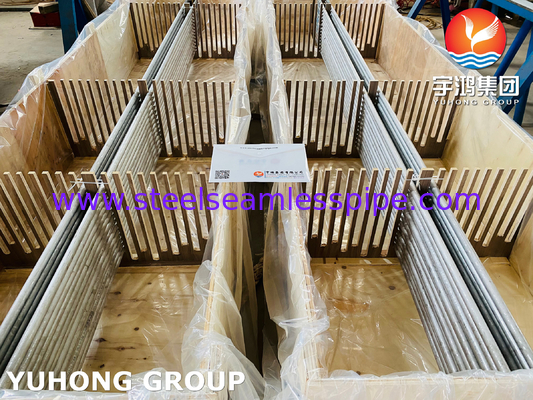

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 15days->
Supply Ability: 600 tons per month
Contact Now
Detailed Product Description
Material Grade: Incoloy 800(1.4876), Incoloy 800H(1.4958),800HT(1.4959), 825(2.4858). Inconel 600(2.4816), 601(2.4851), 625(2.4856),690(2.4642), 718(2.4668). Monel 400(2.4360/2.4361) Standard: B165,B424,B407,B167, B444

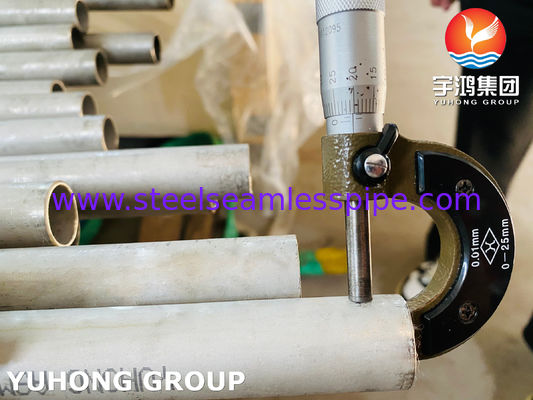

NDT: EDDY CURRENT TEST, HYDROSTATIC TEST Alloy Or Not: Is Alloy
High Light:

nickel alloy tube

,

hastelloy c tubing

ASME SB167 UNS NO 6600. UNS6600 , Alloy Steel Seamless bend pipe , 100% PT , ET, UT , Petrochemical, Heating application



Nickel alloys are used for high-temperature and highly corrosive media. Such conditions are typical for power generation industry, chemical ,petrochemical industry, aerospace engineering. Advanced nickel-based high strength alloys traditionally have nickel and chromium as their foundation, with elements such as molybdenum, tungsten and cobalt added to confer additional solid solution strengthening. Where high temperature strength is critical, additions of aluminum, titanium and niobium, resulting in precipitation hardening , must be added.



Material Grade/Standard Available

Nickel Alloy Material Grade ( ASTM/ASME) Standard Available
Inconel UNS N06600 UNS N06601 UNS N06625 UNS N08800 UNS N08810 UNS N08825 ASME SB167 SB423 SB407 SB444
Monel UNS N04400 ASME SB165 SB163
Hastelloy UNS N10276 ( C 276) N06022(C 22) N06455(C 4) ASME SB626 SB622



Size Range:

Seamless Pipe OD: Φ16mm-Φ114mm; WT:1.0mm-20mm
Welded Pipe OD: Φ10mm-Φ273mm; WT:2mm-30mm



Chemical Composition & Mechanical Property



UNS Ni% Cr% Mo% Cu% Fe% TS Min,Mpa YS Min,Mpa
N04400 63 min. / / 28.0-34.0 2.50 max 483 193
N06600 72 min. 14.0-17.0 / 0.50max 6.0-10.0 552 241
N06601 58.0-63.0 21.0-25.0 / 1.0 max   552 207
N06625 58 min. 20.0-23.0 8.0-10.0 / 5.0 max 827 414
N08800 30.0-35.0 19.0-23.0 / 0.75 max 39.5min. 517 207
N08825 38.0-46.0 19.5-23.5 2.5-3.5 1.5-3.0 22.0 min. 586 241



ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm 0





ASTM B167 UNS N06600,N06601 Nickel Alloy Steel Seamless bend tube, 100% PT , ET, UT ,25.4*2.11mm 1
