Stainless Steel Seamless Tube ASME SA213 TP316,TP316L Heat Exchanger Tube Air Cooler Condenser Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	According to customer's request

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Specification:	ASTM A213/A213M-2013 , ASME SA213/SA213M-2013 , A789 , SA789	Material:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Type:	Straight Tube , U Bend Tube, Coil Tube	Surface:	Bright Annealed, Pickled And Annealed , Polished

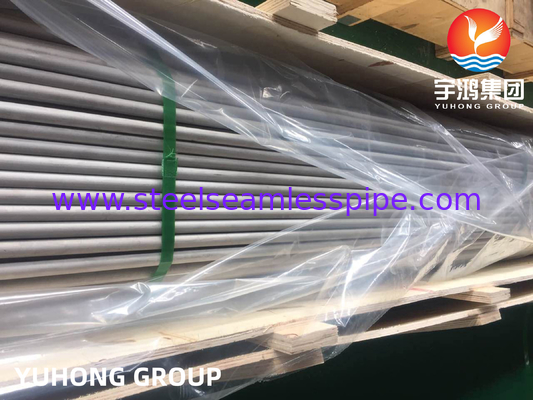

Package:	PLY-WOODEN CASE
Highlight:	heat exchanger pipe , seamless stainless steel tube

Stainless Steel Seamless Tube ASME SA213 TP316,TP316L Heat Exchanger Tube Air Cooler Condenser Tube

YuHong Group, we are one of the leading heat exchagner tube manufacturers in China, boiler/heat exchanger tubes with high quality to our customers and we have sold these tubes in more than 80 countries up to now and have many experiences in exporting.

Heat Exchanger Tube Specification:

ASTM A213 specifies the standard specifications for seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, including TP316 grade, ensuring consistency and quality in manufacturing.

Heat Exchanger Tube Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Heat Exchanger Tube Chemical Composition:

ASTM A213 TP316 stainless steel seamless tubes typically contain:

- Carbon: ≤0.08%

- Manganese: ≤2.00%

- Phosphorus: ≤0.045%

- Sulfur: ≤0.030%

- Silicon: ≤1.00%

- Chromium: 16.0-18.0%

- Nickel: 11.0-14.0%

- Molybdenum: 2.00-3.00%

Heat Exchanger Tube Mechanical Properties:

- Yield Strength: ≥205 MPa

- Tensile Strength: ≥515 MPa

- Elongation: ≥35%

- Hardness: ≤ 217 HBW

Final Finishing:

Solution Annealed & Pickled/Bright Annealed.

Type of Tubes:

U-bend & Straight.

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client

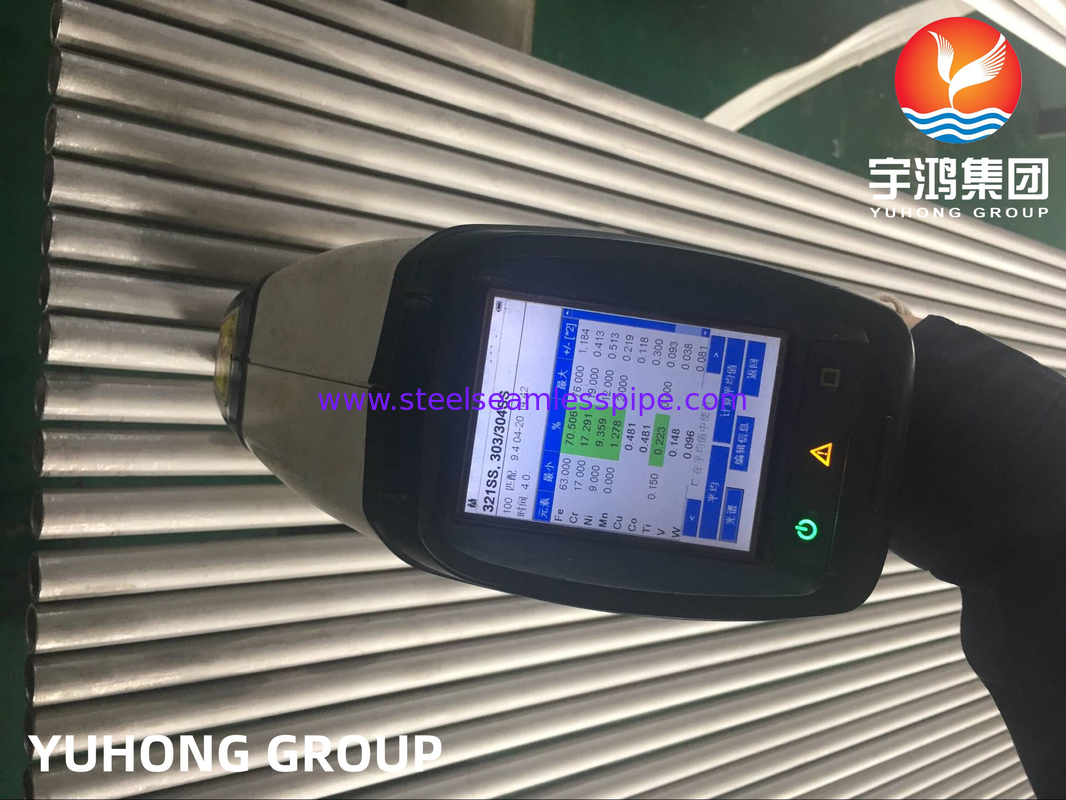

Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
