Heat Exchanger Stainless Steel Seamless/Welded Pipe,Pickled / Bright Annealed Finish A213 TP304L
YUHONG Group deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 32 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 65 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
Advantage Products: (Boiler & Heat Exchanger & Condenser Tube):
ASTM A213(TP304,TP304L,TP304H,TP310S,TP316L,TP316Ti, TP317/L, TP321/H, TP347/H)
ASTM A249(TP304,TP304L,TP316L, TP321/H)
ASTM A789(S31803(2205), 32750(2507), S31254(254MO),S32304)
ASTM B163/B167/B444 for Nickel Alloy Steel Tube
ASTM B677 UNS NO8904(904L)
ASTM B111(70400, C70600, C71500, C71640, C68700, C44300)
Other Standard: EN10216-5, DIN 17456, DIN17458, GOST9941-81, JIS-G3459, JIS-G3463
| Grade |
Material
number |
C |
Si |
Mn |
P |
S |
N |
Cr |
Mo |
Ni |
Ti |
others |
| Ferritic or martensitic steels |
| X2CrTi12 |
1.4512 |
 0.030 |
1.00 |
1.00 |
0.040 |
0.015 |
|
10.50to12.50 |
|
|
6×(C+N)to0.65 |
|
| X6CrAl13 |
1.4002 |
0.08 |
1.00 |
1.00 |
0.040 |
0.015 |
|
12.00to14.00 |
|
|
|
0.10to0.30Al |
| X6Cr17 |
1.4016 |
0.08 |
1.00 |
1.00 |
0.040 |
0.015 |
|
16.00to18.00 |
|
|
|
|
| X3CrTi17 |
1.4510 |
0.05 |
1.00 |
1.00 |
0.040 |
0.015 |
|
16.00to18.00 |
|
|
4×(C+N)+0.15 to 0.80 |
|
| X12Cr13 |
1.4006 |
0.08 to 0.15 |
1.00 |
1.50 |
0.040 |
0.015 |
|
11.50to13.50 |
|
0.75 |
|
|
| Austenitic steels |
| X5CrNi18-10 |
1.4301 |
0.07 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
17.00to19.50 |
|
8.00to10.50 |
|
|
| X2CrNi19-11 |
1.4306 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
18.00to20.00 |
|
10.00to12.00 |
|
|
| X2CrNiN18-10 |
1.4311 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
17.00to19.50 |
|
8.50to11.50 |
|
|
| X6CrNiTi18-10 |
1.4541 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
17.00to19.00 |
|
9.00to12.00 |
5×C to 0.70 |
|
| X6CrNiNb18-10 |
1.4550 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
17.00to19.00 |
|
9.00to12.00 |
|
10×Cto1.00Nb |
| X5CrNiMo17-12-2 |
1.4401 |
0.07 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.00to2.50 |
10.00to13.00 |
|
|
| X2CrNiMo17-12-2 |
1.4404 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.00to2.50 |
10.00to13.00 |
|
|
| X6CrNiMoTi17-12-2 |
1.4571 |
0.08 |
1.00 |
2.00 |
0.045 |
0.015 |
|
16.50to18.50 |
2.00to2.50 |
10.50to13.50 |
5×C to 0.70 |
|
| X2CrNiMoN17-13-3 |
1.4429 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
16.50to18.50 |
2.50to3.00 |
11.00to14.00 |
|
|
| X2CrNiMo18-14-3 |
1.4435 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
17.00to19.00 |
2.50to3.00 |
12.50to15.00 |
|
|
| X3CrNiMo17-13-3 |
1.4436 |
0.05 |
1.00 |
2.00 |
0.045 |
0.015 |
0.11 |
16.50to18.50 |
2.50to3.00 |
10.50to13.00 |
|
|
| X2CrNiMoN17-13-5 |
1.4439 |
0.030 |
1.00 |
2.00 |
0.045 |
0.015 |
0.12to0.22 |
16.50to18.50 |
4.00to5.00 |
12.50to14.50 |
|
|
Specification:
ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.
ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, SuperheaterHeat-Exchanger, and Condenser Tubes.
Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...
Material Grade:
| American Standard |
Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
|
| Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| GOST |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Size Range:
| Production |
Outside Diameter |
Wall Thickness |
| Heat Exchanger Tube |
6.00mm to 101.6mm |
0.5mm to 8mm |
Final Finishing
Solution Annealed & Pickled/Bright Annealed.
Type of Tubes:

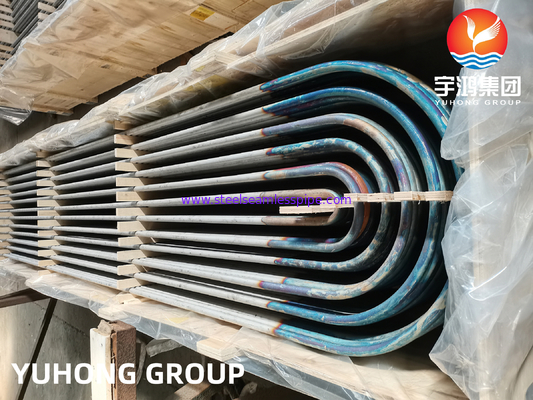

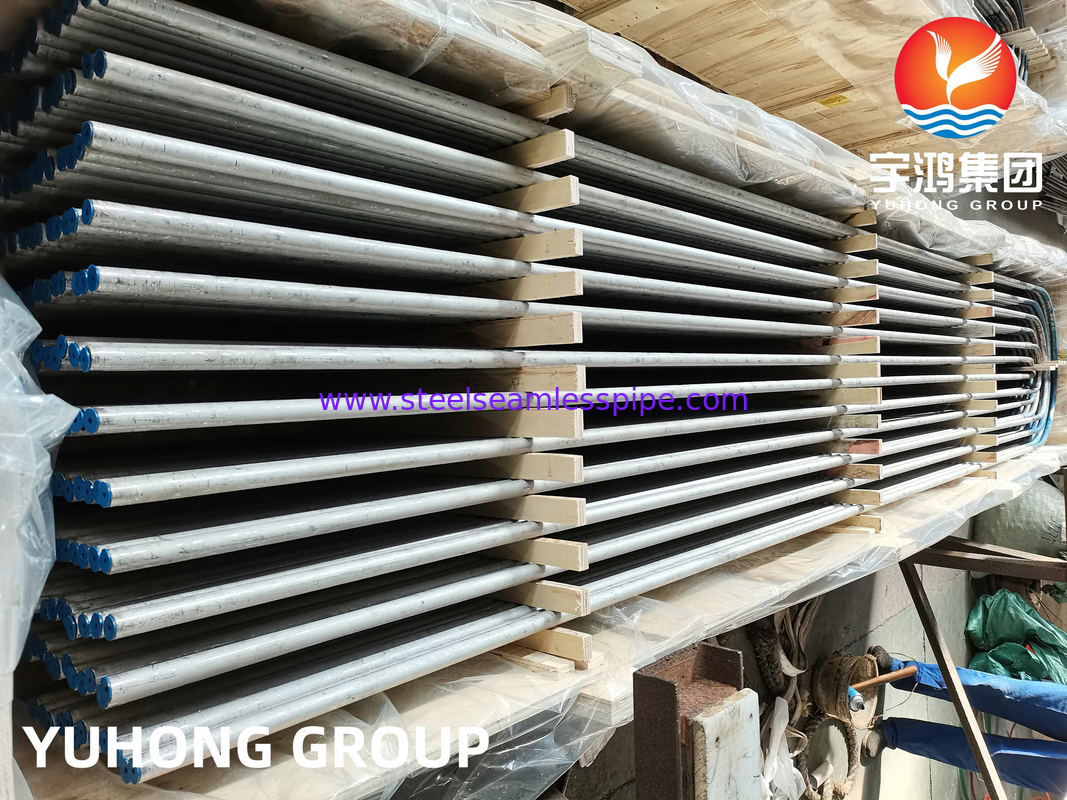

U-bend & Straight.
