ASME SA2312 TP310S | ASTM A312 TP310S TP310H 310S 310MoLN Stainless Steel Pipe For Oil and Gas Industrial

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	NEGOTIABLE
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	10-15 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	ACCORDING TO CUSTOMER'S REQUEST

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Specification:	ASTM A312/A312M-2013 , ASME SA312/SA312M-2013	Material:	TP310S TP310H 310S 310MoLN
Type:	Straight Tube , U Bend Tube, Coil Tube	Form:	Samless /Welded
Surface:	Bright Annealed/Pickled Annealed	Package:	PLY-WOODEN CASE
Highlight:	seamless stainless steel tube , seamless boiler tubes

ASME SA312 TP310S | ASTM A312 TP310S TP310H 310S 310MoLN Stainless Steel Pipe For Oil and Gas Industrial

310S is the low carbon version of 310 and is suggested for applications where sensitisation, and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem. Our 310S 310H is manufactured in accordance ASTM A 213 / ASME SA213, ASTM A312 / ASME SA312.

Stainless Steel Seamless Pipe Specification:

Pipe Specifications	ASTM A312 / ASME SA 312
Pipe Standard	DIN, JIS, ASTM, EN, GB, AISI, ASME
Pipe Thickness	0.3mm - 50 mm
Welded Pipe Size	5.0 mm - 1219.2 mm
Seamless Pipe Outer Diameter	6.00 mm OD up to 300 mm OD, Sizes up to 12" NB
Pipe Schedule	SCH 5S, SCH10S, SCH 40S, SCH 80S, SCH 160S, SCH XXS, SCH XS
Pipe & Tube Type	Seamless / ERW/ EFW / Welded / Fabricated Pipe
Pipe & Tube End	Plain End, Beveled End, Treaded Pipe.

Stainless Steel Seamless Pipe Chemical Composition:

Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo	Ni
TP310S	S31008	0.08	2	0.045	0.03	1	24.0-26.0	0.75	19.0-22.0

Stainless Steel Seamless Pipe Mechanical Properties:

Mechanical properties	Tensile, min, ksi[MPa]	Yield, min, ksi[MPa]	Elongation, %(min)	Hardness, HB(max)
TP310S	75【515】	30【205】	35	192

Stainless Steel Seamless Pipe Equivalent Grades:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
310S	1.4845	S31008	SUS310S	310S16	20Ch23N18	-	X8CrNi25-21

Stainless Steel Seamless Pipe tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client

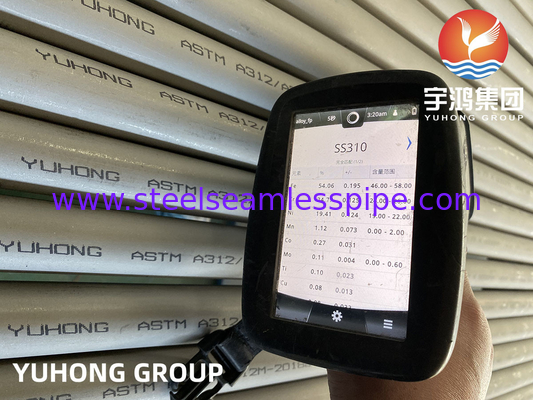

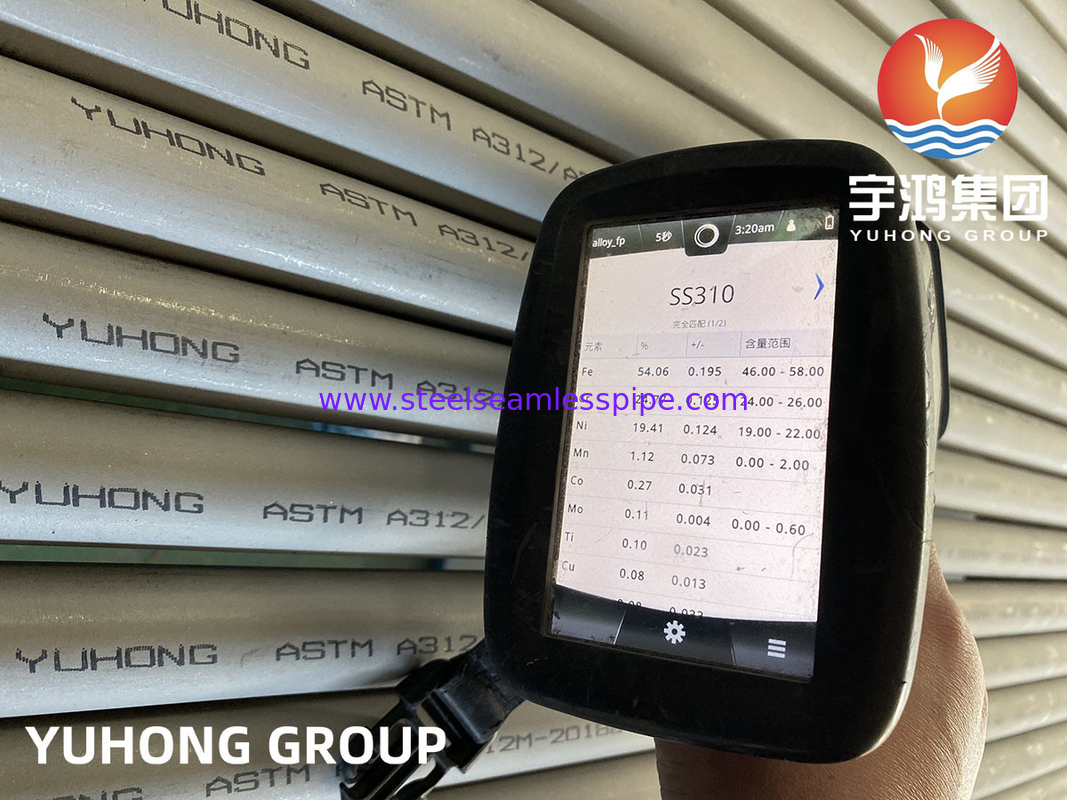

Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
