SA688 TP304 Stainless Steel U Bend Tube Applied for Heat Exchanger

SA688 TP304 Stainless Steel U Bend Tube Applied for Heat Exchanger

  • SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger
  • SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger
  • SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger
  • SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger
SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: SA688 TP304
Payment & Shipping Terms:
Minimum Order Quantity: 300KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: Depends on quantity
Payment Terms: T/T, L/C
Supply Ability: ACCORDING TO CLIENT'S REQUIREMENT
Contact Now
Detailed Product Description
Standard: A688 / SA688 Material Grade: TP304
DNT: ET, UT, HT , RT Surface: Bright Annealed
High Light:

welded steel tube

,

seamless and welded pipe

Stainless Steel U Bend Tube, SA688 TP304 , 19.05 X 1.65 X 6096MM,Heat Exchanger Application, ET/HT



YUHONG SPECIAL STEEL deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.



Features :

  • 'U' bending is done by cold working process.
  • 'U' bending is done to the required radius as per customer drawings.
  • The bend portion and six inch leg is stress relieved by resistance heating.
  • Inert gas (Argon) is passed through it at the required flow rate to avoid oxidation in ID.
  • The radius is checked for its OD and wall thinning with the recommended specification.
  • The physical properties and micro-structure is checked at three different position.
  • Visual inspection for waviness and cracks is done with Dye Penetrant Test.
  • Each tube is then hydro tested at the recommended pressure to check for leakage.
  • Cotton ball test is done to check the ID cleanliness of the tube.
  • Thereafter pickled, dried, marked and packed.
  • All procedure is strictly followed as per TEMA "C" and ASTM A-688.


U-Bend Tube are widely used in Heat Exchanger Systems. Heat-Exchanger Equipment on the basis of
Seamless Stainless U-Tubes and Welded Stainless U bend Tube is essential in strategically important and
critical felds---Nuclear And Petrochemical Machine Building.
YUHONG SPECIAL STEEL Start to Produce U Bending Tube Since 2006, Up to now already supply more than
30000 tons Stainless Steel U Bend Tube to 35 countries.

The U-Bend Tube Comply With The Following Standards:
1. ASTM A688/ASME SA688
2. ASTM A803/ASME SA803
3. ASTM A556/ASME SA556



Steel Grade:

Ferrite Austenite Duplex Super Duplex Ni-Alloys Titanium
TP410
TP405
S44400
S44660
TP430
TP304/304L
TP316/316L
TP316Ti
TP317/317L
TP321
TP347
S31803
S32205
S32304
S32750
S32760
N06600
N08020
N00880
N08825
N08904
Gr.2














Technical Requirements:

Straight Tubes Standard Specification For Bending:
ASME SA 213; ASME SB 163; ASME A789, ASME SA268, ASME SA269, etc.
Marking: Before Bending By Marking Machine All Over The Tube Length (Bent Section After Heat
Treatment Without Marking)
Note: Marking is also possible After Bending On The Straight Parts Of U-Bending Tube.

U-Bend Tubes:
-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.

-Customer Specifications.
Nickel Alloy Steel U Bend Tube, Hestalloy C276, Inconel alloy625 ,All0y601, Alloy 690, Incoloy alloy800,800H, 825



Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
When Ordering Tubes With Radius less or equal to 1.5*OD, It Is Necessary To Agree Precision Of Geometrics.
Straight Tubes Maximum Length:(Before Bending): 35000 mm.
Leg Length: Min 1 Meter, Max. 16500 mm (For Max R=1500mm)
Note: Other Size Are Available Upon Agreement.
Heat Treatment: Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).
Hydrostatic Test After U Bending: Maximum Test Pressure 600 Bar, Soaking 10 Sec. With
Dematerialized Water. Compressed Air Cleaning After Hydro-Test.
Packaging: In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for
each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene
films With soft plastic caps on both end of Tube.



Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing
  •

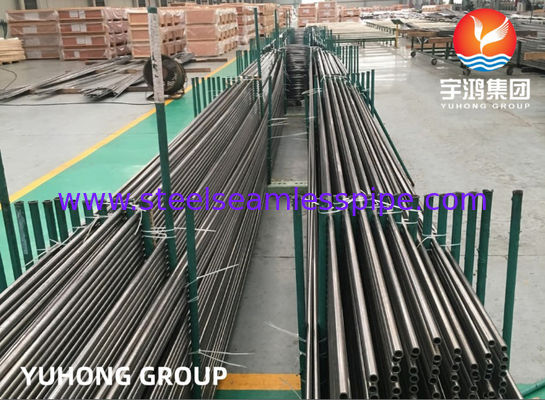

SA688 TP304  Stainless Steel U Bend Tube Applied for Heat Exchanger 1
