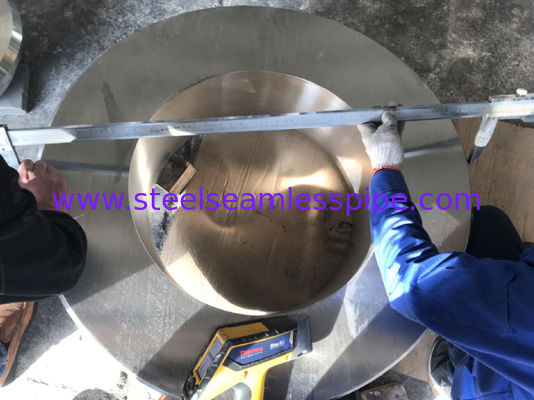

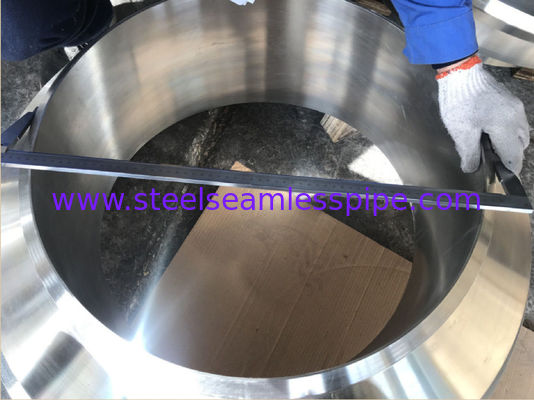

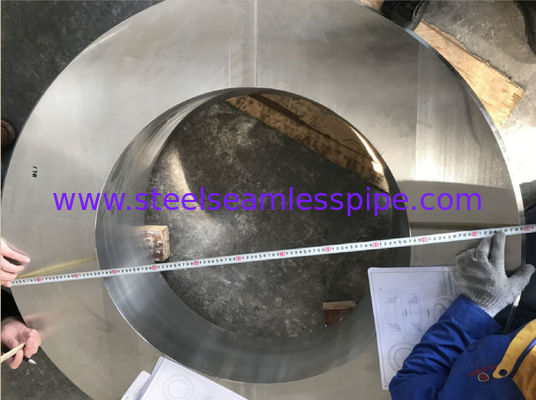

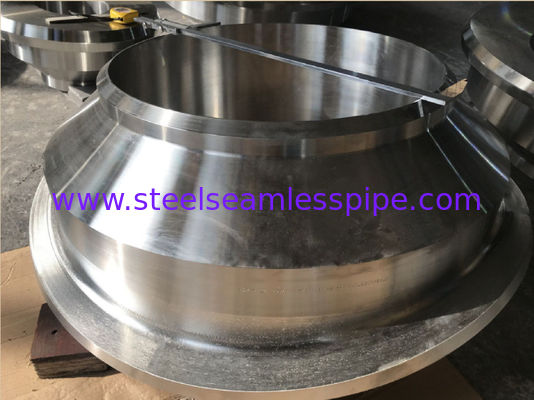

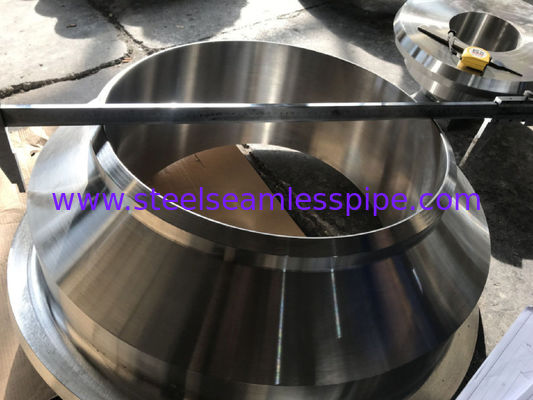

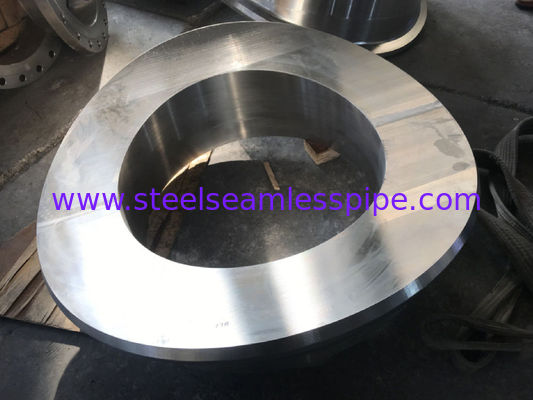

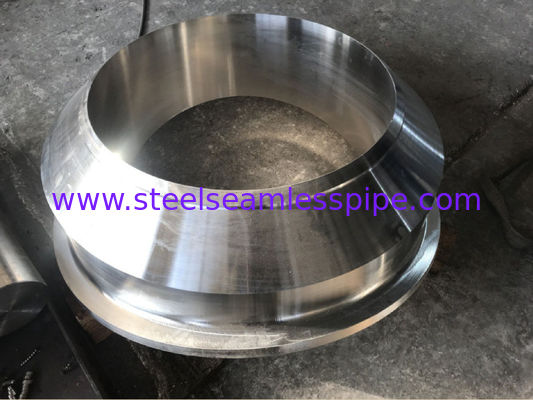

ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank

ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank

    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
    • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
  • ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank

    Product Details:

    Place of Origin: China
    Brand Name: YUHONG
    Certification: API , ABS, DNV, GL , LR, NK, ....
    Model Number: F9, F91, F92, F5, F11, F22 , F321H, F316L ASME section VIII Division 1, 2 and 3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: negitable

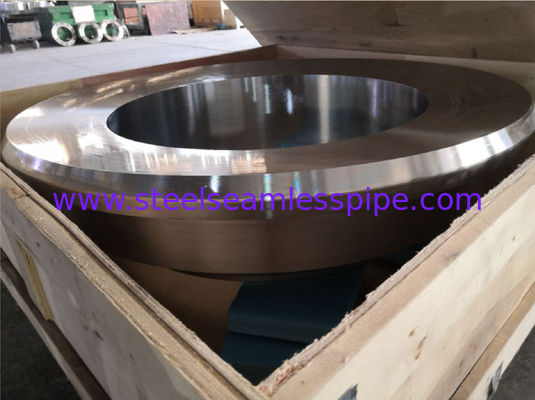

    Packaging Details: wooden case
    Delivery Time: 10--25days
    Payment Terms: T/T, L/C
    Supply Ability: 100 TONS/MONTH
    Contact Now
    Detailed Product Description
    Size: 1/2”~98” Rating: 150# To 15000# In Pressure Rating
    Materials: F9, F91, F92, F5, F11, F22 , F321H, F316L Certification: API , ABS, DNV, GL , LR, NK, ....
    Standard: ASTM B16.5, B16.47, API 6A,ASME SA182 , ASME SA105, ASME Section VIII Division 1, 2 And 3

    Nozzle Flange , ASME SA182 , ASME SA105, F11, F22, F5, F9, F91, F304L, F316L, F321H,Boiler/ Chemical Tank Application



    YUHONG GROUP deal with pipeline products more than 30 years , Our Stainless / Duplex /Super Duplex /Nickel Alloy / Cr-Mo alloy /Copper Nickel alloy steel pipe /tube /fitting/flange export more than 45 coutries , and we support our client finished more than 1000 projects , our brand "Yuhong" already won good reuptation in the world market , more and more client keep our goods in stock , and more and more client use our brand to join tender of their new project.


    Carbon & Low Temperature Chromiun Stainless & Duplex Copper& Bronze Titanium Ni-Alloy
    A105 /A105N A182-F1 A182-F304 A182-F347H SB151-C70600 SB381-GR.F1 B564-NO2200
    A516-GR.70 A182-F11 A182-F304L A182-F904L SB151-C71500 SB381-GR.F3 B564-NO6022
    A350-LF2 A182-F12 A182-F304H A182-F44 SB151-C71520 SB381-GR.F5 B564-N10276
      A182-F22 A182-F304N A182-F51 C44300   B564-NO4400
      A182-F5 A182-F309S A182-F53 C68700   B564-NO6600
      A182-F9 A182-F310S A182-F55 C71640   B564-NO6601
      A182-F91 A182-F310H A182-F60     B564-NO6625
        A182-F316       B564-NO8800
        A182-F316L       B564-NO8810
        A182-F316Ti       B564-NO8811
        A182-F316H       B564-NO8825
        A182-F317L       B564-N10665
        A182-F321       B564-N10675
        A182-F321H       B160-NO2201
        A182-F347       B462-NO8020

    ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank



    • RCF Size and Pressure Rating
      • 1/2”~48” in size and Class 150# to 2500# in pressure rating.
      • Bigger size and higher pressure rating on request.
    • RCF Materials
      • ASTM A105, A350 LF2, LF6, A694 F52~F70
      • AISI 4130, AISI 8630
      • A182 F316/316L, F51, F53, F55, Inconel 625, Incoloy 825.
      • Other material on request
    • RCF Gasket
      • RCF IX seal ring, axial forces are exerted on the taper of the metal seal ring and translated into a radial sealing force. Furthermore with increased pre-load, the bevel is closed and face to face contact is achieved at the outer wedge while most of the bolt pre-load is transferred as compressive forces between the flange faces at the heel.
    • RCF Design and Verification
      • Yuhong Special Steel provides calculation service based on ASME section VIII Division 1, 2 and 3. Also we have ANSYS software engineers to do the analysis and design verification.


    Application:

    1. Boiler
    2. Hheat exchanger
    3. Cooler plant
    4. Petrochemical industry

    5. Natural gas and oil industry
    6. Environmental protection
    7. Pharmaceutical
    8. Chemical Plant
    9. Food machinery
    10. Water supply and waste wate exchanger plant
    11. Architecture
    12. Chemical fertilizer production


    ASME SA182 / ASME SA105 Nozzle Steel Flanges For Boiler / Chemical Tank
