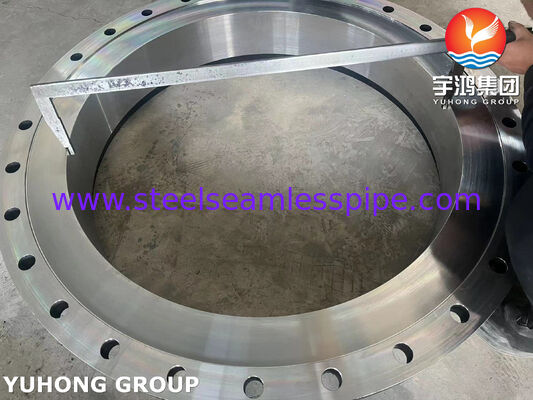

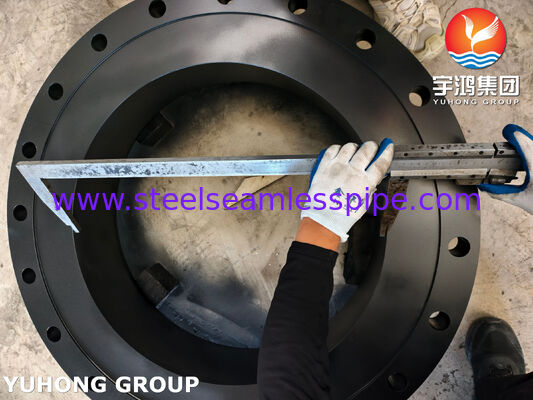

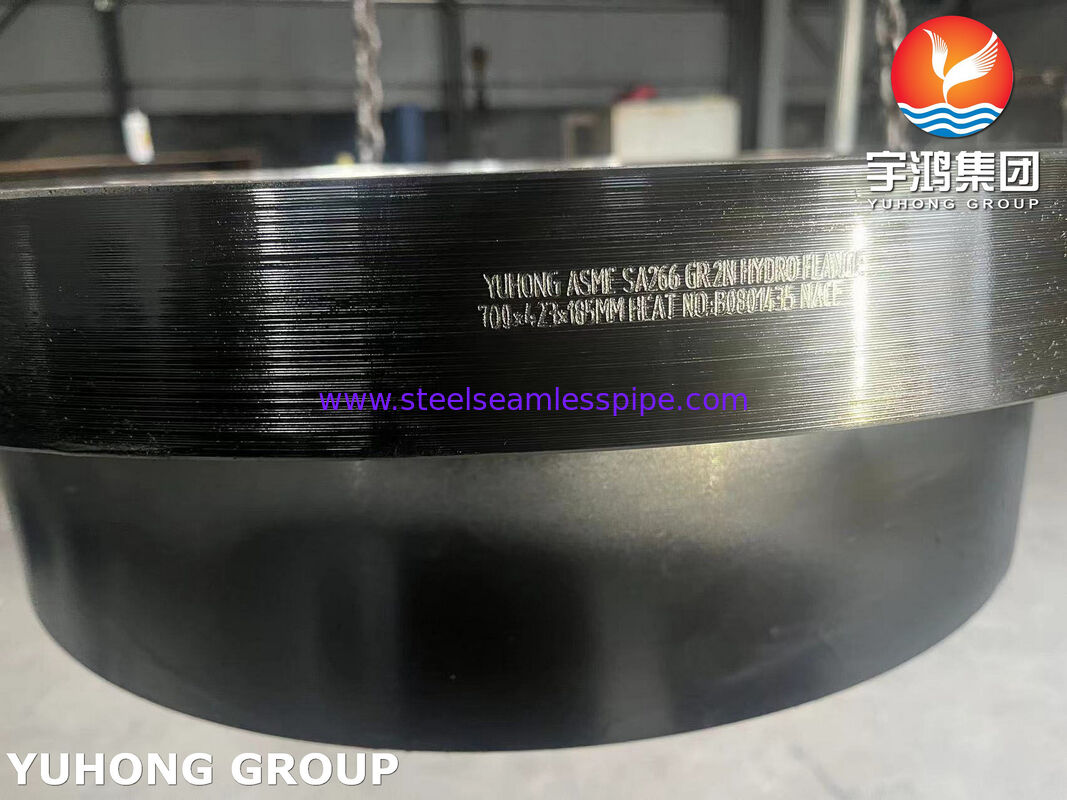

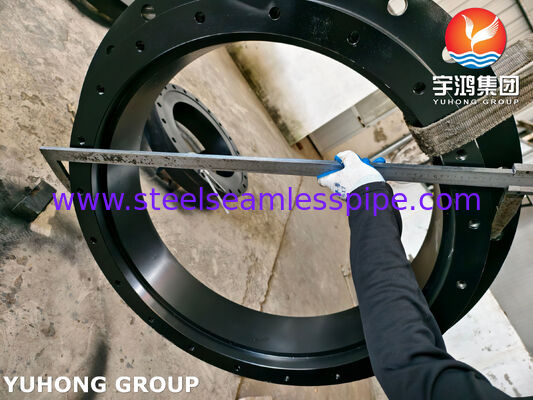

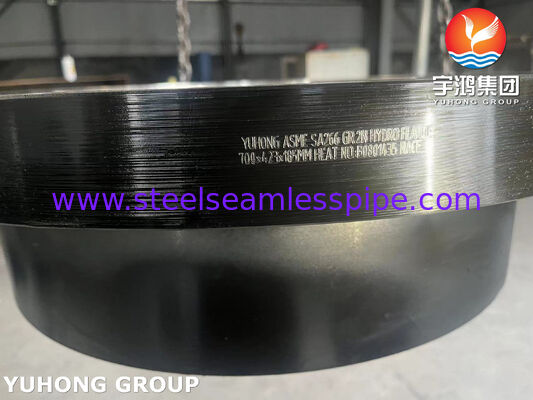

Hydraulic Flange ASME SA266 Gr.2N Carbon Steel Hydro Flange For Petrochemical Industry
An ASME SA266 Gr.2N carbon steel hydro flange is a heavy-duty forged carbon steel flange made from ASME SA266/SA266M Grade 2, normalized (“N”) steel. It is typically used in hydropower and large water-conveyance systems—penstocks, turbine inlets, main inlet valves, pump-turbine casings, draft tubes, surge tanks, cooling-water pipelines, and large valve/pipeline connections. It is not a standard pipe flange only; most ASME SA266 Gr.2N carbon steel hydro flanges are custom large-diameter forged flanges for TEMA shell-and-tube heat exchangers, vessel heads, channel boxes and heavy pressure assemblies, not just B16.5 standard pipe flanges. All raw material is hot-worked forging, not rolled plate, to guarantee internal soundness, grain uniformity and high-pressure integrity.
Chemical Composition:
| Carbon (C) |
≤0.30 |
| Manganese (Mn) |
0.40 ~ 1.05 |
| Phosphorus (P) |
≤0.025 |
| Sulfur (S) |
≤0.025 |
| Silicon (Si) |
0.15 ~ 0.35 |
| Iron (Fe) |
Balance |
Mechanical Properties:
| Tensile Strength |
485- 655 MPa (70-95 ksi) |
| Yield Strength (0.2% offset) |
≥250 MPa (36 ksi) |
| Elongation (2 in / 50 mm gauge length) |
≥18 % |
| Hardness |
Not specified in base SA266, normally controlled ≤207 HB after normalization |
Main Features:
High pressure boundary reliability
Good balance of strength and toughness
Good weldability
Excellent machinability
High internal soundness
Normalized uniform microstructure
Good dimensional stability
Applications of ASME SA266 Gr.2N Carbon Steel Hydro Flanges:
Hydropower penstocks and water conveyance pipelines
Shell-and-tube heat exchangers (TEMA type): tube-side channel cover flange, shell flange, girth flange, tubesheet flange
Pressure vessels, separator drums, knockout drums, boiler components
Petrochemical & refinery process equipment, hydro-processing units, hydrocracker and hydrotreater auxiliary flanges
Power generation: boiler drums, steam headers, feedwater vessels, heat exchanger flanges for thermal power plants
Oil & gas onshore process packages, compressor skids, high-pressure fluid manifolds
