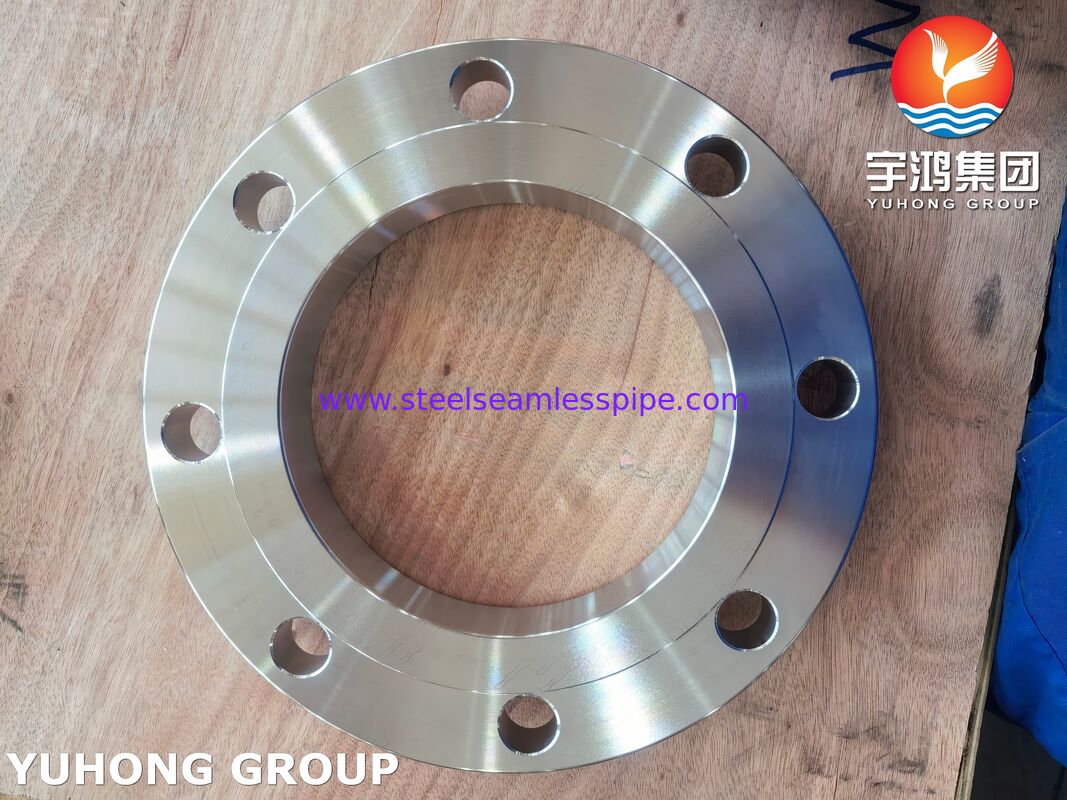

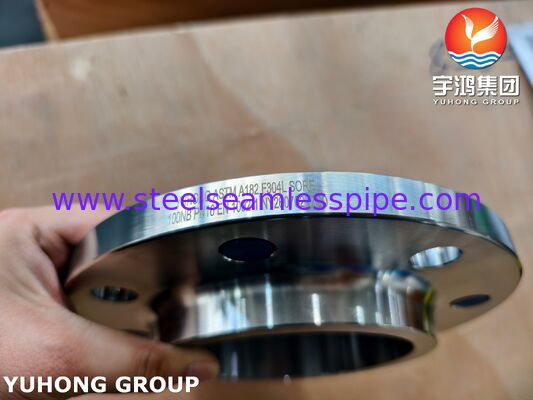

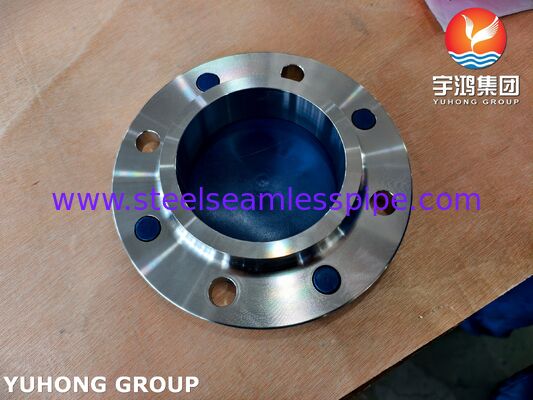

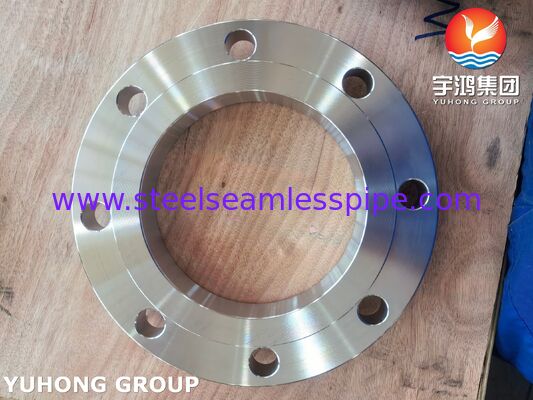

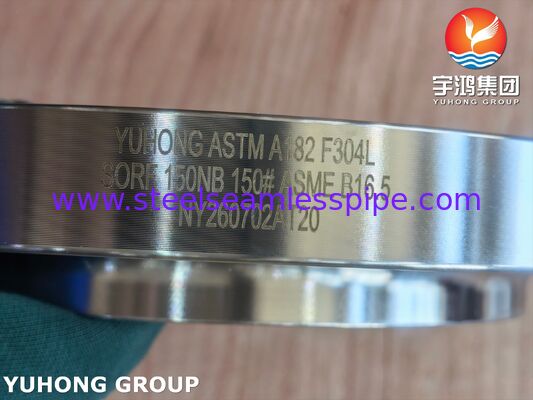

ASTM A182 F304L Stainless Steel Slip On Raised Face Flange SORF PN16 EN1092-1
Slip-on flange means the flange bore is slightly larger than the outside diameter of the matching pipe; the pipe slides through the flange hub, then fillet-welded on both sides (back side and sealing face side) to fix the assembly. The raised face is a machined concentric raised ring on the flange face to compress gaskets and form a tight seal. The ASTM A182 F304L Stainless Steel Slip-On Raised-Face Flange PN16 EN 1092-1 combines a low-carbon 18Cr-8Ni austenitic forged stainless steel with the economical slip-on flange design and EN 1092-1 PN16 dimensions. It offers good corrosion resistance, excellent weldability, easy alignment, and a machined raised face for gasket sealing. It is widely used in water, food, pharmaceutical, chemical, HVAC, and general industrial piping, but final selection should always consider pressure-temperature ratings, gasket type, welding procedure, chloride exposure, and project specifications.
Chemical Composition(%):
| Carbon (C) |
0.03 |
| Manganese (Mn) |
2.00 |
| Silicon (Si) |
1.00 |
| Phosphorus (P) |
0.045 |
| Sulphur (S) |
0.030 |
| Chromium (Cr) |
18.00 – 20.00 |
| Nickel (Ni) |
8.00 – 12.00 |
| Nitrogen (N) |
0.10 |
| Iron (Fe) |
Balance |
Mechanical Properties:
| Tensile Strength, Rm |
≥ 485 MPa |
| 0.2% Proof Yield Strength, Rp0.2 |
≥ 170 MPa |
| Elongation (A, 50 mm gauge) |
≥ 40 % |
| Hardness, HBW |
≤ 201 HB |
| Hardness, HRB |
≤ 92 HRB |
Main Features of ASTM A182 F304L Slip On Raised Face Flange:
Good general corrosion resistance
Good formability and weldability
Low carbon formulation
Typical Applications:
- Water treatment: Potable water pipeline, purified water, RO / desalination auxiliary piping, wastewater neutralisation lines
- Food & beverage: Brewery, dairy, juice processing, edible oil transfer lines
- Pharmaceutical and fine chemical: Low-corrosion process media, CIP cleaning circuits
- General chemical industry: Mild acid, dilute alkaline, solvent transfer, storage tank nozzles
- HVAC and utility: Cooling water, compressed air, steam auxiliary lines at moderate temperature
- Pulp & paper: White water and low-chloride process circuits
- Power plant auxiliary systems: Demineralised water, chemical dosing skids
- Marine on-board non-seawater service (not direct seawater exposure)
- General industrial piping where frequent joint disassembly is required for maintenance, inspection or cleaning
