Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B564 Monel 400 Nickel Alloy Flange |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | PLYWOOD CASE / PALLET |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Nickel Alloy Flange | Dimension: | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges Etc. |
|---|---|---|---|
| Standard: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings | Material: | Stainless Steel, Carbon Steel, Nickel Alloy |
| Size: | 1/2" To 48" | Pressure: | Class150/300/600/9001500/2500 |
| Type: | Blind Flange,Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange | Flange Face: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Application: | Petroleum,chemical,etc,fittings And Connection,beer | ||
| High Light: | ASTM B564 UNS N04400 Weld Ring Neck Flange, Nickel Alloy Forged Flange | ||
ASTM B 564 UNS N04400 / Monel 400 Nickel Alloy Blind Flange BLRF Flange

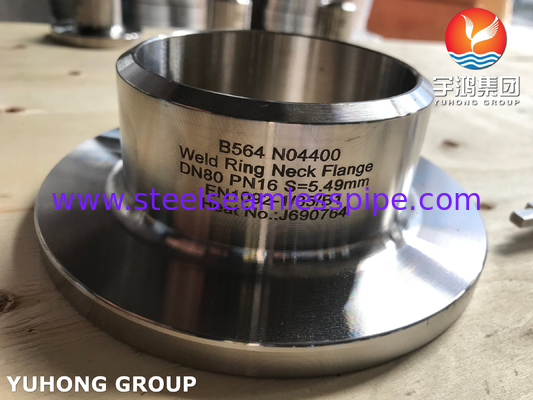

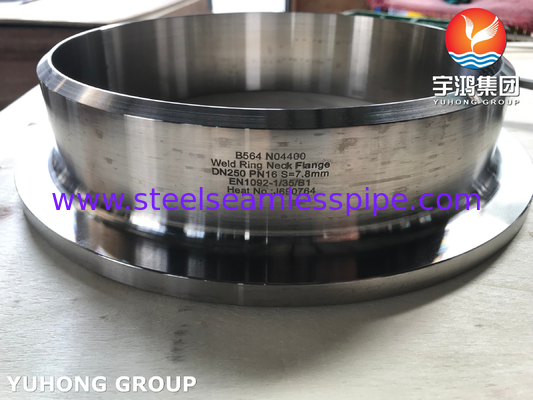

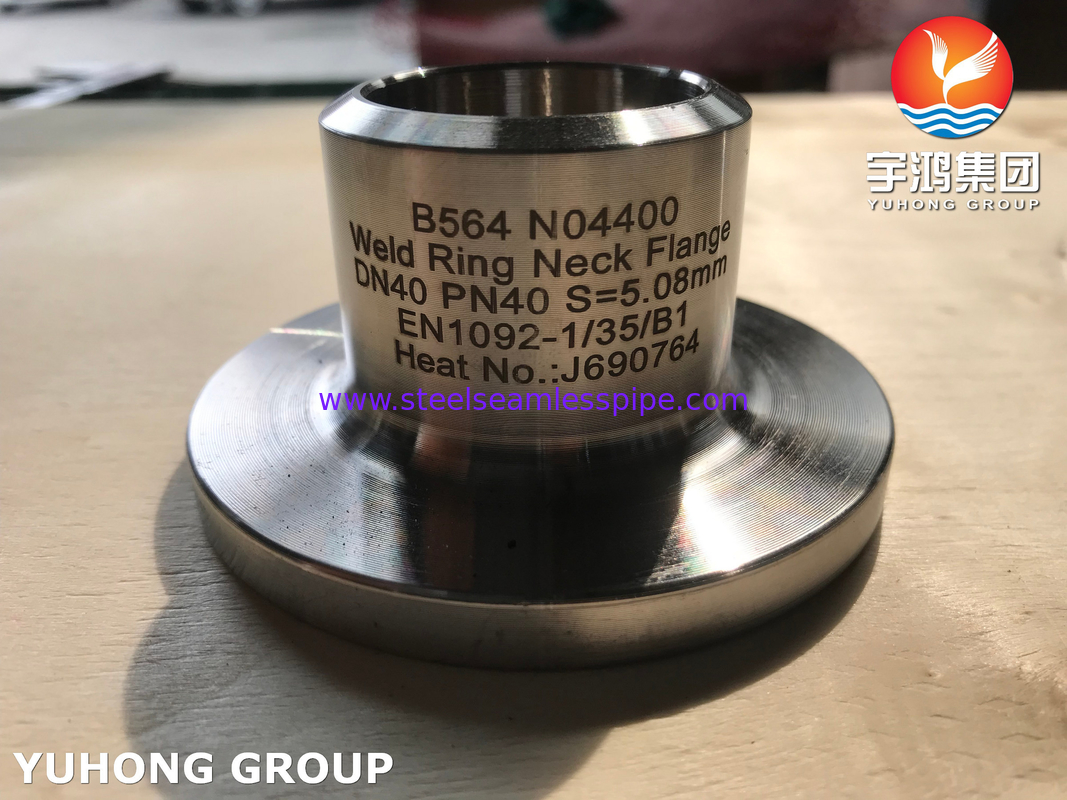

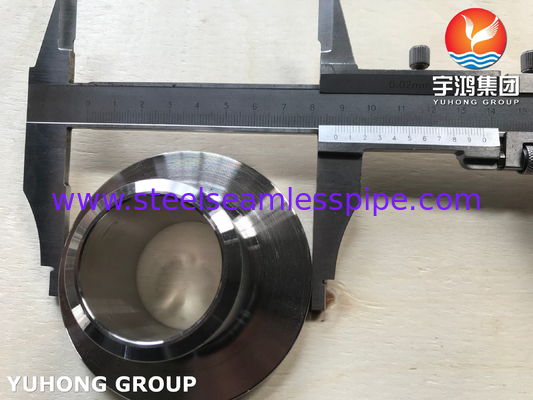

The EN 1092-1 Type 35 weld ring neck is a collar, that is always used with a Type 02 loose plate flange. In such a flange assembly, its “neck” end is joined to the pipe by welding, while the loose plate flange mounts to the back surface of the “ring” shoulder, pressing it against the gasket to form a tight seal. EN 1092-1 Type 35 weld neck rings are available in p/T ratings of PN 2.5, PN 6, PN10, PN 16, PN 25 and PN 40. Generally, the Type 35 weld ring neck collar shall be manufactured by a forging process or by welding a ring plate to a seamless pipe.
Equivalent Material of ASTM B564 UNS N04400 Nickel Alloy Flange
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | ----- 28-2,5-1,5 |
Chemical Properties of ASTM B564 UNS N04400 Nickel Alloy Flange
| Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
| 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
Mechanical Characteristics of ASTM B564 UNS N04400 Nickel Alloy Flange
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 35,000 , MPa - 240 | Psi - 80,000 , MPa - 550 | 40 % |
ASTM B564 UNS N04400 Nickel Alloy Flange
| Specifications List | ASTM/ ASME B564 / SB564 |
|---|---|
| Standard Flange | BS, DIN, ASME, ANSI, EN |
| Size Chart | 1/2″up to 48″ (15 - 1200NB) |
| Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
| ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
The Advantage of using monel 400 material:
Application
