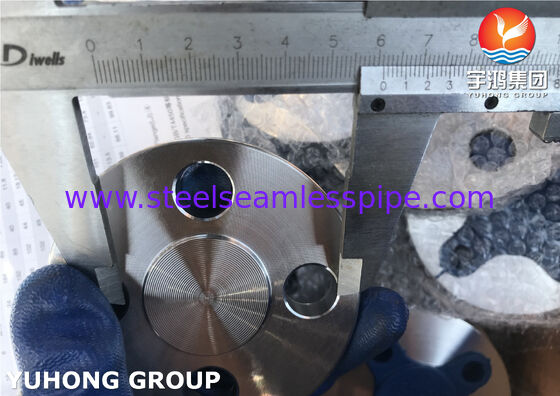

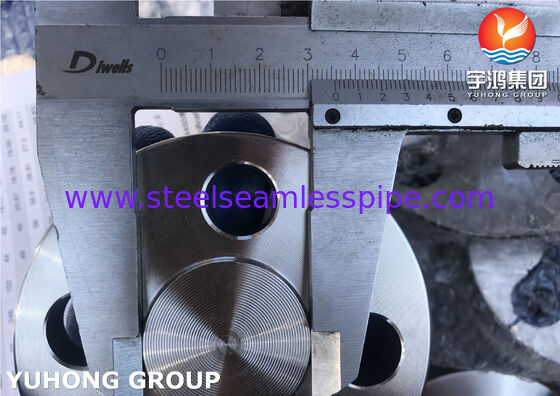

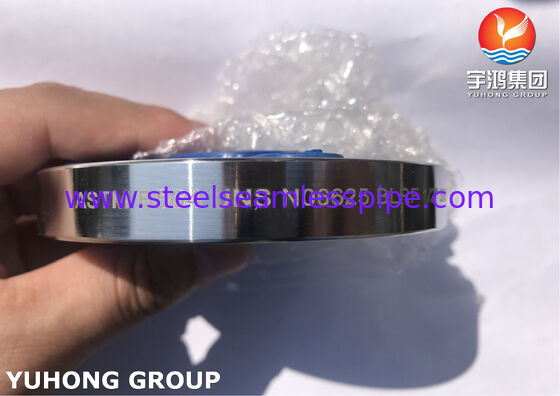

Inconel 625 Flanges , ASTM B564 UNS N06625 / Nickel Alloy 625 Blind Flange BLRF Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO, API, PED , ABS, DNV, BV, LR
Model Number:	ASTM B564 UNS N06625 Nickel Alloy Blind Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (354)

Stainless Steel Seamless Tube (352)

Duplex Stainless Steel Pipe (141)

Duplex Stainless Steel Tube (40)

Needle Tube (175)

Fin Tube (759)

Heat Exchanger (45)

Heat Exchanger Tube (483)

Heat Exchanger Tube Bundle (57)

Heat Exchanger Tubesheet (133)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (136)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (112)

Copper Alloy Tube (258)

Alloy Steel Tube (229)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (166)

Steel Fitting (888)

Steel Flange (691)

Others (413)

Cladding Parts (9)

Detailed Product Description

Product Name:	Nickel Alloy Flange	Standard:	ASTM B564, ASME SB564
Dimension:	ASME/ANSI B16.5, B16.47	Material:	Alloy/Inconel 625, DIN 2.4856, UNS N06625
Size:	1/2" To 48"	Class/Pressure:	150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc.
Flange Type:	Blind Flange	Flange Face:	FF, RF
Manufacturing Way:	Forging
High Light:	ASTM B564 UNS N06625 Nickel Alloy Flange, Inconel 625 Blind Flange, BLRF Flange

Nickel Alloy 625 Flange , ASTM B564 Inconel 625 / 2.4856 / UNS N06625 Blind Flange BLRF

ASTM B564 Inconel 625 Blind Flange BLRF, ASTM B564 UNS N06625 is a forged, solution-annealed nickel alloy blind flange with a raised face. It is made from Alloy 625, a high-strength, highly corrosion-resistant nickel-chromium-molybdenum-niobium alloy. ASTM B564 controls the material properties, while ASME B16.5 or B16.47 controls dimensions and pressure ratings. It is used to blank off or close the end of a pipe, valve, vessel, or piping opening in corrosive, high-temperature, or high-strength environment-- and widely used in chemical, marine, oil and gas, nuclear, and high-temperature applications where stainless steel or carbon steel would not survive.

Equivalent of Nickel Alloy 625 Flange ASTM B564 UNS N06625 Inconel 625 Weld Neck Flange

Grade	WERKSTOFF NR.	BS	GOST	EN	UNS	JIS
Inconel 625	2.4856	N06625	NA 21	ХН75МБТЮ	NiCr23Fe	NCF 625

Chemical Compositions% of Nickel Alloy 625 Flange ASTM B564 UNS N06625 Inconel 625 Weld Neck Flange

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 625	0.10max	0.50 max	0.50 max	0.015max	–	5.0 max	58.0 min	20.0 – 23.0

Mechanical Properties of Nickel Alloy 625 Flange ASTM B564 UNS N06625 Inconel 625 Weld Neck Flange

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %

Key characteristics of Inconel 625 flanges

Excellent resistance to pitting, crevice corrosion, and chloride stress corrosion cracking
Good resistance to seawater and marine environments
Resistant to many acids, including sulfuric, phosphoric, and nitric acid
High strength and good fatigue resistance
Excellent oxidation resistance at elevated temperatures
Good cryogenic toughness
Essentially non-magnetic in the annealed condition
Good weldability and formability
