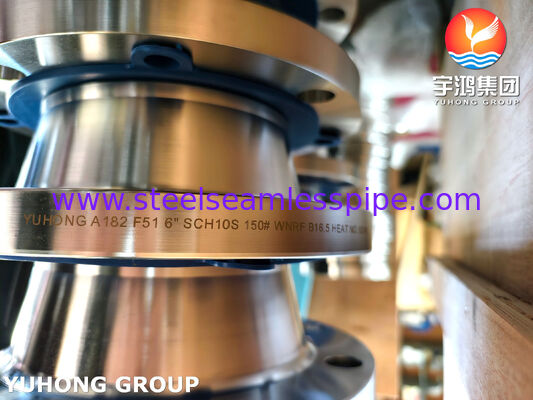

ASTM A182 F51 Duplex Stainless Steel Flange ASME B16.5 Raised Face Weld Neck Flange for Chemical and Petrochemical Piping

ASTM A182 F51 duplex stainless steel welding neck raised face (WNRF) flanges are designed for industrial piping systems that require a combination of mechanical strength and corrosion resistance. F51 is a duplex stainless steel forging grade commonly associated with UNS S31803.

The welding neck design provides a tapered hub for butt welding to the connecting pipe, while the raised face (RF) provides a gasket contact surface for bolted flange connections. Flange dimensions, pressure class, facing finish and bore requirements should be specified according to the project design.

These flanges can be considered for chemical processing, petrochemical facilities, offshore piping and other industrial applications where duplex stainless steel is specified. Final material suitability depends on the process medium, temperature, pressure and applicable engineering requirements.

F51 duplex stainless steel combines an austenitic-ferritic microstructure with mechanical strength and resistance to various forms of corrosion. Its suitability should be evaluated against the actual operating environment, including chloride concentration, temperature and potential corrosion mechanisms.

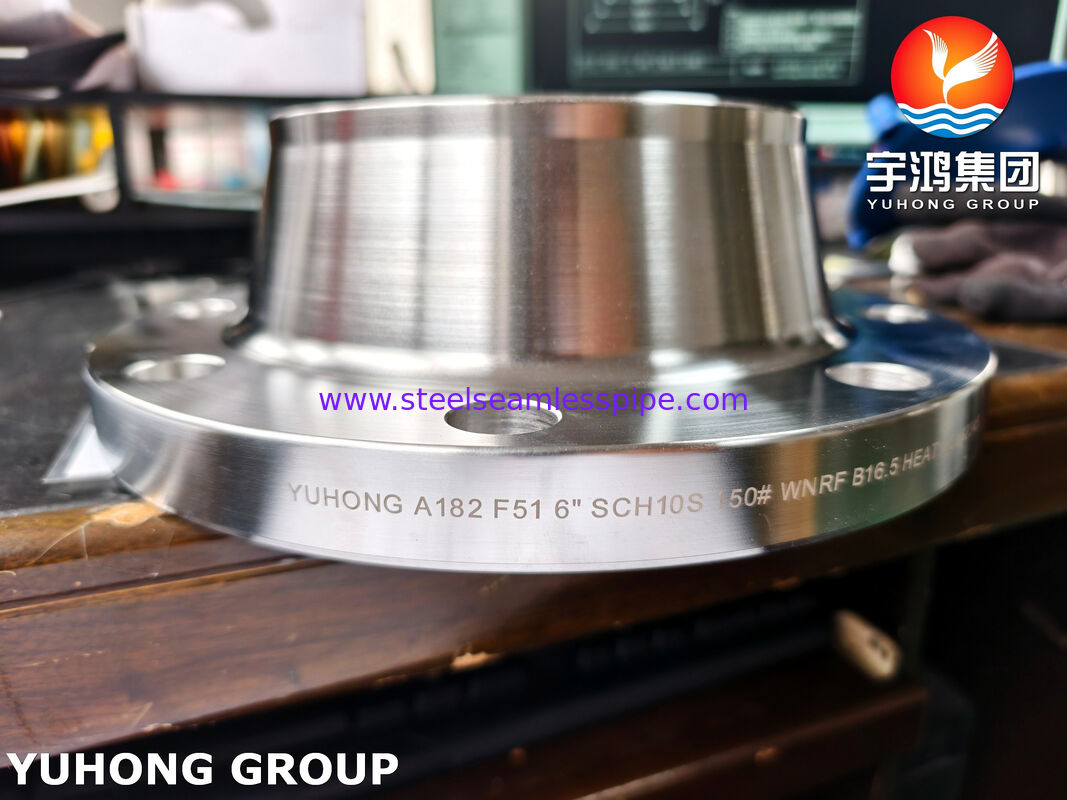

The welding neck configuration is designed for butt welding to the mating pipe. The bore and welding end should be selected to match the connecting pipe dimensions and wall thickness requirements.

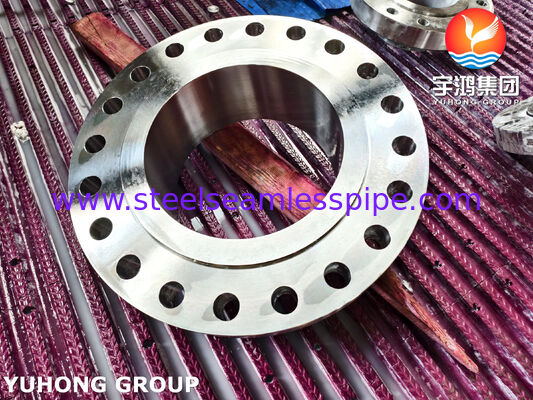

The RF facing provides a defined gasket contact surface for bolted flange connections. Gasket selection, surface finish, pressure class and bolting requirements should follow the project specification.

• Chemical Processing: Piping systems handling specified chemical media.
• Petrochemical Facilities: Process and utility piping requiring duplex stainless steel components.
• Offshore and Marine Systems: Selected piping applications where the material is suitable for the service environment.
• Water Treatment: Industrial water and selected chloride-containing service systems, subject to corrosion assessment.
• Industrial Process Piping: Equipment connections, pump connections and pressure-containing piping assemblies designed to the applicable code.

ASTM A182/A182M specifies requirements for the applicable forged or rolled flange material. ASME B16.5 provides dimensional and pressure-temperature requirements for covered flange sizes and pressure classes.

Before ordering, confirm:

• Applicable editions of ASTM A182/A182M and ASME B16.5
• Nominal pipe size and pressure class
• Raised face or other required facing
• Flange bore and matching pipe schedule
• Welding end preparation
• Material identification and supplementary testing requirements

Inspection and documentation can be arranged according to the purchase order and project requirements. Relevant items may include:

• Material Test Certificate (MTC)
• Chemical composition and mechanical test results
• Heat treatment records

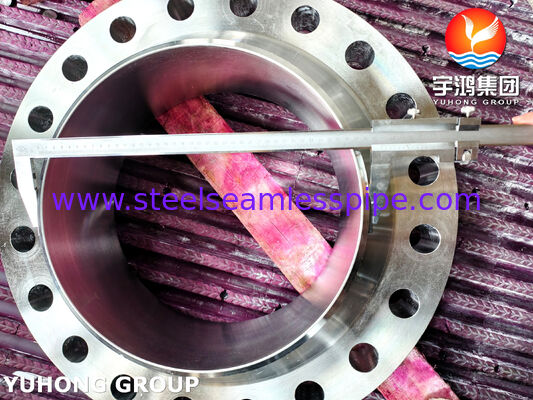

• Dimensional and visual inspection
• Material traceability and marking
• Positive Material Identification (PMI), when specified
• Third-party inspection, when agreed

Additional testing and inspection should be confirmed before order placement.

Flanges are packed in export wooden cases, plywood boxes or suitable wooden pallets according to order quantity and shipping requirements. Raised faces and flange bores are protected against handling damage and contamination during transportation. Customized packaging and marking can be arranged according to project requirements.

To receive a quotation for ASTM A182 F51 WNRF flanges, please provide:

• Nominal pipe size
• Pressure class
• Required standard and edition
• Flange bore or pipe schedule
• Quantity
• MTC, testing and third-party inspection requirements
• Delivery destination and preferred trade terms

MOQ, lead time, packaging and delivery terms will be confirmed according to the required specifications and order quantity.
