GRA Electric Resistance Welded ASME SA178 Carbon Steel Tube

GRA Electric Resistance Welded ASME SA178 Carbon Steel Tube

GRA Electric Resistance Welded ASME SA178 Carbon Steel Tube
video
GRA Electric Resistance Welded ASME SA178 Carbon Steel Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SA178 GR. A, 50.8MM * 3.048MM * 18300MM Electric-Resistance-Welded Carbon Steel Tube
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE

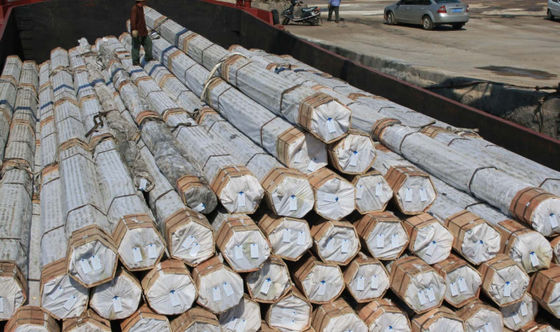

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
STANDARD: ASME SA178 MATERIAL: TP321
SPECIFICATION: GRA Electric Resistance Welded ASME SA178 Carbon Steel Tube TEST: NDT IBR
Type: Welded Welding Line Type: ERW
Shape: Round Pipe.
High Light:

ASME SA178 Carbon Steel Tube

,

TP321 Carbon Steel Tube

,

GRA Electric Resistance Welded Tube

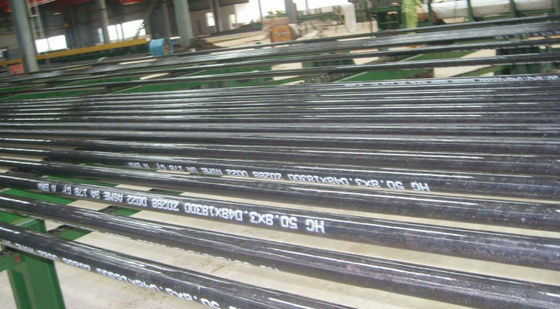

ASME SA178 GR. A, 50.8MM * 3.048MM * 18300MM Electric-Resistance-Welded Carbon Steel Tube



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



ASTM A178 Standard covers minimum-wall-thickness, electric-resistance-welded tubes made of carbon steel and carbon-manganese steel intended for use as boiler tubes, boiler flues, superheater flues, and safe ends.



SA178 tubing sizes and thicknesses usually furnished to this specification are 1⁄2 to 5 in. [12.7 to 127 mm] in outside diameter and 0.035 to 0.360 in. [0.9 to 9.1 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.



Applications:



ASTM A178 tubes are a kind of frequently-used tubes in our life, they are mainly used in manufacturing heating pipelines, containers, coal-saving devices, superheaters, arch superheated tube, airway tube etc.



Specification:








Standard specification ASTM A178, ASME SA178
Grade Grade A, Grade C, Grade D, BKW, NBK, GBK
Available sizes 4 Inch to 26 Inch, Customized Size Available
OD 12.7mm to 127mm
Wall thickness 1.5mm to 6.0mm
Length 6m-25m, Custom Double / Single Random
End Finish Plain End, Beveled End, Treaded Protected With Plastic End Caps
Shape Round, Coiled, “U” Bend, Rectangular, Hydraulic
Manufacturing types Welded & ERW SA178 & A178 Tubes
Fabricated & CDW A178 & SA178 Tubes
Common uses & application
  • Boilers
  • Heat Exchangers
  • Power Plants, i.e Gas, Oil, Coal, Thermal, and Nuclear
  • Condensers
  • Marine Shipping
  • Refineries
  • Paper Pulp
  • Petrochemical
  • Pressure Vessels
  • General Engineering
Producing process Electric-Resistance-Welded
Delivery Condition Annealed, Normalized, Tempered, Heat Treatment, BK, BKS
Surface Varnish
Common Supply Terms followed
  • Hydrostatic or Nondestructive Electric Test Heat Treatment: according to Standard
  • Surface Condition: According to Standard.
  • Grain Size: According to standard
  • Sampling: flattening, flaring, grain size, Marking


SA178 Chemical details:

Element Carbon Manganese Phosphorus Sulfur
Grade A 0.06-0.18 0.27-0.63 0.035 0.04
Grade B 0.35 max 0.80 max 0.035 0.035
Grade C 0.27 max 1.00-1.50 0.03 0.035


SA178 Mechanical properties:

  SA178 Grade A SA178 Grade C SA178 Grade D
Tensile strength, min, ksi [MPa] 47[325] 60[415] 70[485]
Yield strength, min, ksi [MPa] 26[180] 37[255] 40[275]
Elongation in 2 in. or 50mm, min, % 35 30 30
For longitudinal strip tests a deduction for 1.50A 1.50A 1.50A



SA178 Pipe OD and WT Tolerance:

Outside Diameter tolerance Wall thickness tolerance
OD < 50 ±0.05mm S < 4mm ±12.5%
OD > 50 ±1% 4–20mm -120
    S≥20mm ±12.5%
