Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | TP316 , TP316L , TP316H, TP316Ti , TP316LN, 1.4404 |
Minimum Order Quantity: | 100KGS |
---|---|
Price: | negotiable |

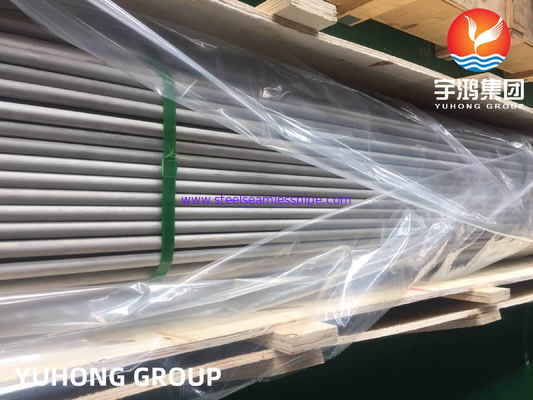

Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Delivery Time: | 10days-> |
Payment Terms: | T/T, L/C |
Supply Ability: | 1500 tons per month |
Standard: | ASTM A213, ASME SA213 , EN 10216-5 , GOST 9941-81 , JIS G 3459 | Certificate: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
---|---|---|---|
Material Grade: | TP316 , TP316L , TP316H, TP316Ti , TP316LN , SUS316, SUS316L , 1.4404 | NDT: | Eddy Current Test ( ASTM E426), Ultrasonic Test (ASTM E213 ), Hydrostatic Test ( ASTM A1016) , Penetration Test(ASTM E165) |
Surface: | Pickled , Bright Annealed, Polished | OD: | 6.35mm, 7.92mm, 9.53mm, 12.7mm, 15.88mm , 19.05mm , 22.23mm, 25.4mm, 31.75mm , 38.1mm , 44.45mm , 50.8mm, 57.15mm , 63.5mm, 76.2mm, 88.9mm, 101.6mm |
WT: | 10 Bwg (3.4mm ), 12 Bwg (2.77mm), 13 Bwg (2.413mm), 14 Bwg (2.11mm), 16 Bwg (1.65mm) 18 Bwg (1.24mm) 20 Bwg(0.89mm) | Length: | Max. : 32m/pc |
High Light: | ASME SA213 Stainless Steel Seamless Tube,TP316L Stainless Steel Seamless Tube,ASME SA213 seamless stainless steel pipe |

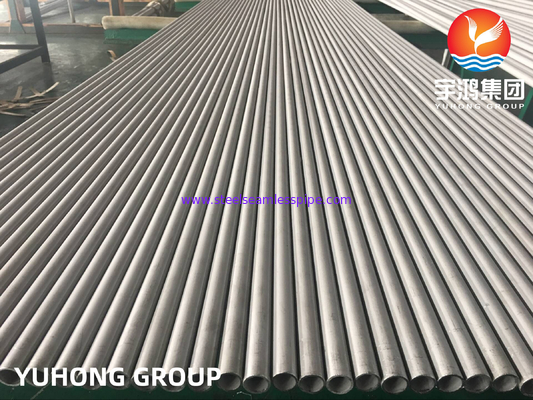

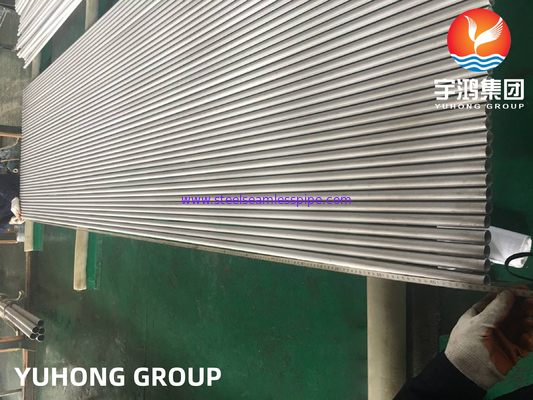

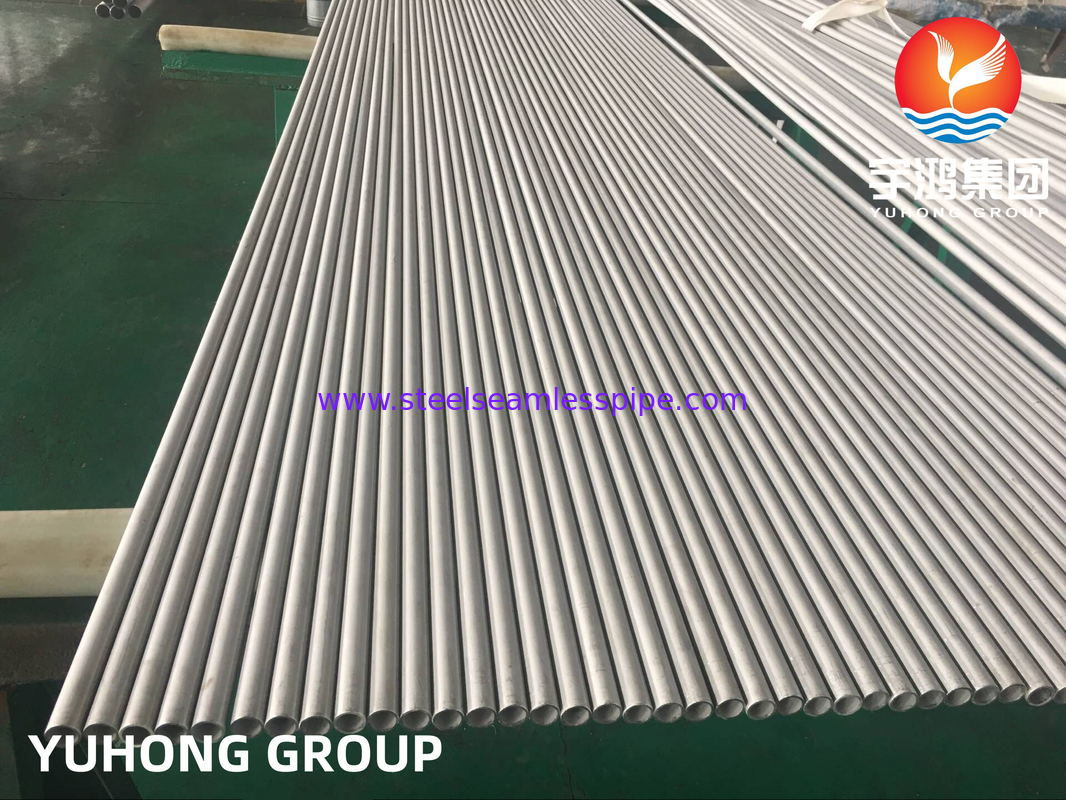

ASME SA213 TP316L (1.4404) Stainless Steel Seamless Tube for boiler and heat exchange application
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 32 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , .... The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Stainless Steel Seamless Tube Chemical Composition:
MATERIAL
|
C | MN | SI | P | S | CR | MO | NI | N | |
SA213 TP 316L Tube | Min | - | - | - | - | - | 16 | 2 | 10 | - |
Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
SA213 TP 316H Tube | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
Stainless Steel Seamless Tube Mechanical Properties:
GRADE
|
TENSILE STRESS | YIELD STR | ELONG | HARDNESS | |
(MPA) MIN | 0.2% PROOF | (% IN 50MM) MIN | |||
(MPA) MIN | ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | |||
SS 316L Tube | 485 | 170 | 40 | 95 | 217 |
SS 316H Tube | 515 | 205 | 40 | 95 |
Stainless Steel Seamless Tube Pressure Rating:
OD inches
|
Ave. Wall inches | Min Yield Strength (PSI) | Min Tensile Strength (PSI) | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Theoretical Yield Point ** (PSI) | Collapse Pressure *** (PSI) |
0.25 | 0.02 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
0.25 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
0.25 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
0.25 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
0.25 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
0.375 | 0.02 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
0.5 | 0.02 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
0.5 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.5 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
0.5 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,316L |
0.5 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
0.5 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
0.625 | 0.02 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
0.75 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
0.75 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
0.75 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
0.75 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
0.75 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
0.75 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
0.75 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
0.75 | 0.12 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
0.875 | 0.02 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
0.875 | 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
0.875 | 0.12 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
1 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
1 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
1 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
1 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
1 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
1 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
1 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
1 | 0.12 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
1 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
1.25 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
1.25 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
1.25 | 0.065 | 30,000 | 75,000 | 8,705 | 2,176 | 3,482 | 2,958 |
1.25 | 0.083 | 30,000 | 75,000 | 11,485 | 2,871 | 4,594 | 3,719 |
1.25 | 0.095 | 30,000 | 75,000 | 13,443 | 3,361 | 5,377 | 4,213 |
1.25 | 0.109 | 30,000 | 75,000 | 15,843 | 3,961 | 6,337 | 4,776 |
1.25 | 0.12 | 30,000 | 75,000 | 17,822 | 4,455 | 7,129 | 5,207 |
1.25 | 0.134 | 30,000 | 75,000 | 20,468 | 5,117 | 8,187 | 5,742 |
1.5 | 0.035 | 30,000 | 75,000 | 3,671 | 918 | 1,469 | 1,367 |
1.5 | 0.049 | 30,000 | 75,000 | 5,243 | 1,311 | 2,097 | 1,896 |
1.5 | 0.065 | 30,000 | 75,000 | 7,117 | 1,779 | 2,847 | 2,487 |
1.5 | 0.083 | 30,000 | 75,000 | 9,333 | 2,333 | 3,733 | 3,136 |
1.5 | 0.095 | 30,000 | 75,000 | 10,878 | 2,719 | 4,351 | 3,559 |
1.5 | 0.109 | 30,000 | 75,000 | 12,754 | 3,188 | 5,101 | 4,043 |
1.5 | 0.12 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
1.5 | 0.134 | 30,000 | 75,000 | 16,315 | 4,079 | 6,526 | 4,881 |
1.5 | 0.148 | 30,000 | 75,000 | 18,439 | 4,610 | 7,375 | 5,336 |
1.75 | 0.035 | 30,000 | 75,000 | 3,125 | 781 | 1,250 | 1,176 |
1.75 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
1.75 | 0.065 | 30,000 | 75,000 | 6,019 | 1,505 | 2,407 | 2,146 |
1.75 | 0.083 | 30,000 | 75,000 | 7,860 | 1,965 | 3,144 | 2,711 |
1.75 | 0.095 | 30,000 | 75,000 | 9,135 | 2,284 | 3,654 | 3,080 |
1.75 | 0.109 | 30,000 | 75,000 | 10,672 | 2,668 | 4,213 | 3,504 |
1.75 | 0.12 | 30,000 | 75,000 | 11,921 | 2,980 | 4,768 | 3,832 |
1.75 | 0.134 | 30,000 | 75,000 | 13,563 | 3,391 | 5,425 | 4,242 |
1.75 | 0.148 | 30,000 | 75,000 | 15,268 | 3,817 | 6,107 | 4,645 |
1.75 | 0.165 | 30,000 | 75,000 | 17,430 | 4,357 | 6,972 | 5,124 |
2 | 0.035 | 30,000 | 75,000 | 2,720 | 680 | 1,088 | 1,032 |
2 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
2 | 0.065 | 30,000 | 75,000 | 5,214 | 1,303 | 2,086 | 1,887 |
2 | 0.083 | 30,000 | 75,000 | 6,788 | 1,697 | 2,715 | 2,387 |
2 | 0.095 | 30,000 | 75,000 | 7,873 | 1,968 | 3,149 | 2,715 |
2 | 0.109 | 30,000 | 75,000 | 9,175 | 2,294 | 3,670 | 3,092 |
2 | 0.12 | 30,000 | 75,000 | 10,227 | 2,557 | 4,091 | 3,384 |
2 | 0.134 | 30,000 | 75,000 | 11,605 | 2,901 | 4,642 | 3,751 |
2 | 0.148 | 30,000 | 75,000 | 13,028 | 3,257 | 5,211 | 4,111 |
2 | 0.165 | 30,000 | 75,000 | 14,820 | 3,705 | 5,928 | 4,542 |
