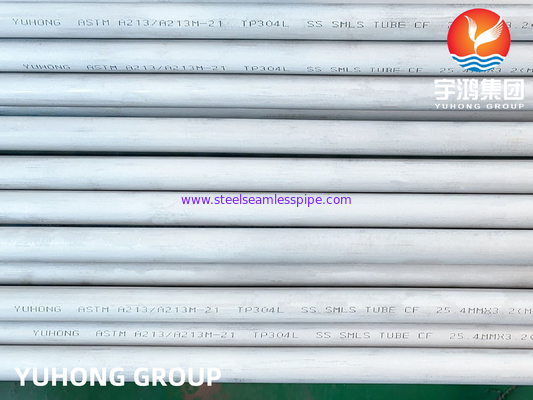

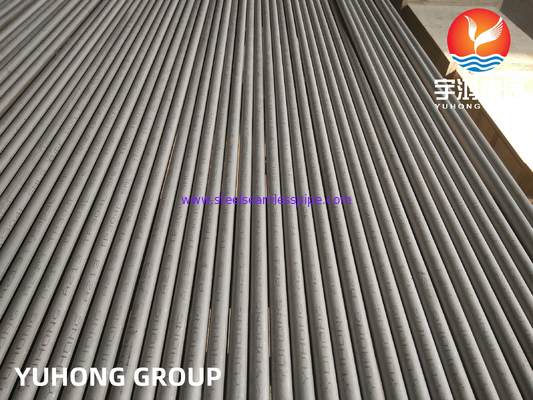

U Bending ASTM A213 TP304L Stainless Steel Boiler Tube

U Bending ASTM A213 TP304L Stainless Steel Boiler Tube

U Bending ASTM A213 TP304L Stainless Steel Boiler Tube
video
U Bending ASTM A213 TP304L Stainless Steel Boiler Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A213 TP304L Stainless Steel Boiler Tube U-Bending Available
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
STANDARD: JIS, AiSi, ASTM, GB, DIN, EN MATERIAL: TP304L
SPECIFICATION: ASTM A213 TP304L Stainless Steel Boiler Tube U-Bending Available Package: Standard Seaworthy Package
Processing Service: Bending, Welding, Decoiling, Punching, Cutting, Moulding Technique: Cold Rolled Hot Rolled
Surface Condition: Polished,Pickled,N0.1,BA,NO.4,HL,2B Heat Treatment: Solution, Annealed
Shape: Round/Square/Rectangular/Oval Application: Heat Exchanger, Decorative
High Light:

ASTM A213 stainless steel boiler tube

,

TP304L stainless steel boiler tube

,

TP304L bending stainless steel tubing

ASTM A213 TP304L Stainless Steel Boiler Tube U-Bending Available



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



ATM A213 TP 304L Stainless Steel Tubes Mechanical Properties

Material Tensile Stress (MPa) min Yield Stress 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
AISI 304L 485 170 40 92 201





ATM A213 TP 304L Stainless Steel Tubes Chemical Composition

Type C Mn Si P S Cr Mo Ni N
SS 304L minimum - - - - - 18 - 8 -
maximum 0.03 2 0.75 0.045 0.03 20 12 0.1





Equivalent Grade

SS Grade UNS No Old British EN / Euronorm Swedish SS Japanese JIS GOST
BS En No Name
304L S30403 304S31 58E 1.4306 / 1.4307 X5CrNi18-10 2332 SUS 304L 03Х18Н11





ASTM A213 TP304L STAINLESS STEEL TUBE TOLERANCES



Diameter Tolerance ASTM A213 TP304L Tube

NPS ASTM A213 TP304L Tube OD Tolerance
+
inch mm inch mm
1/8~1 1 /2 1/64(0.015) 0.4 1/32(0.031) 0.8
> 1 1 /2~4 1/32(0.031) 0.8 1/32(0.031) 0.8
> 4~8 1/16(0.062) 1.6 1/32(0.031) 0.8
> 8~18 3/32(0.093) 2.4 1/32(0.031) 0.8
> 18~26 1/8(0.125) 3.2 1/32(0.031) 0.8
> 26~34 5/32(0.156) 4 1/32(0.031) 0.8
> 34~48 3/16(0.187) 4.8 1/32(0.031) 0.8



Wall Thickness Tolerance ASTM A213 TP304L Tubes

NPS ASTM A213 TP304L Tube Tolerance, %
+
1/8-2 1 /2 20 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15 12.5
≥ 20, seamless 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15 12.5





Specification

ATM A213 TP 304L Stainless Steel Tubes Specifications
Specifications



ASTM A/ASME SA213/A249/A269

Dimensions

ASTM, ASME and API

SS 304L Tubes Size

1/8″NB TO 30″NB IN

Thickness

0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.

Schedule

SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type

Seamless / ERW / Welded / Fabricated / LSAW Tubes

Form

Round, Square, Rectangular, Hydraulic Etc

Length

Single Random, Double Random & Cut Length.

End

Plain End, Beveled End, Treaded











ASTM A213 TP 304L Stainless Tubes Application Industries



  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers

Certificate



  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc

U Bending ASTM A213 TP304L Stainless Steel Boiler Tube 0
