Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | DIN 2391, EN10305-2 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Certification: | ISO, TUV, PED, DNV | Specification: | DIN 2391, EN10305-2 |
|---|---|---|---|
| Application: | Auto Parts | Technique: | Cold Drawn/ Cold Rolled |
| Steel Grade: | Carbon Steel | Surface Treatment: | Annealed, NBK |
| Length: | As Your Requirements | Product Name: | Carbon Steel Seamless Tube |
| Color: | Black, Bright Annealed, Polished, Galv. | ||
| High Light: | Din2391 Stainless Steel Seamless Tube,Din2391 Stainless Seamless Tube,L12m Stainless Steel Seamless Tube |
||

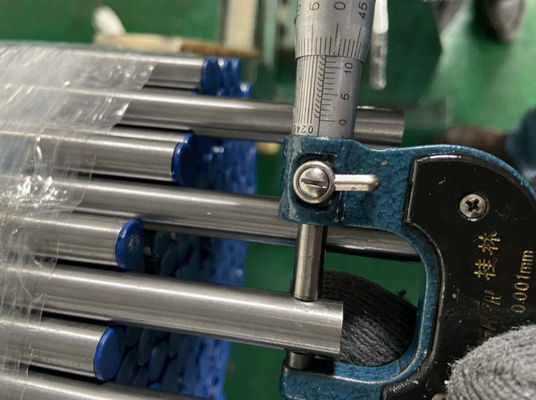

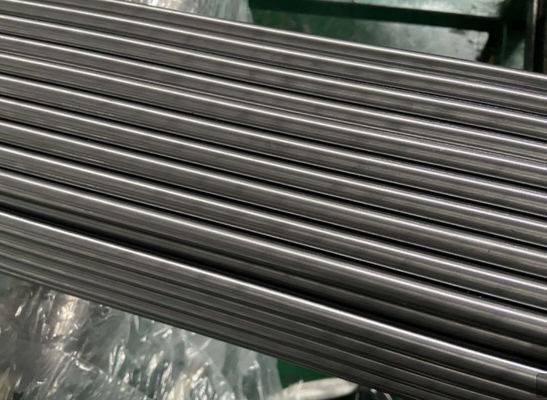

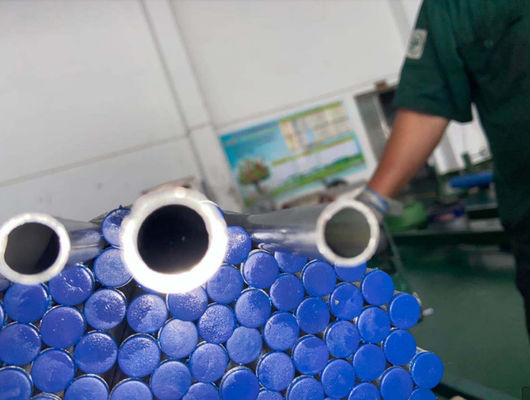

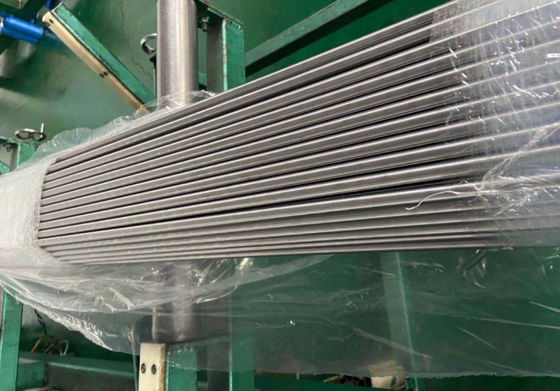

Round Cold Drawn Seamless Tube, EN10305-2 E235N , AUTO APPLICATION
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
DIN 2391 Seamless Precision Steel Tubes Characteristic
DIN 2391 Seamless Precision Steel Tubes Mechanical Properties
| Pipe types | Steel grades | Minimum resistance properties | |||||||||||
| +C | +LC | +SR | +A | +N | |||||||||
| Rm [MPa] | A% | Rm [MPa] | A% | Rm [MPa] | Re [MPa] | A% | Rm [MPa] | A% | Rm [MPa] | Re [MPa] | A% | ||
| Precise seamless steel pipes St35, St45, St52 According to DIN 2391 | St 35 | 480 | 6 | 420 | 10 | 420 | 350 | 14 | 315 | 25 | 340- 470 | 235 | 25 |
| St 45 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440- 570 | 255 | 21 | |
| St 52 | 640 | 4 | 580 | 7 | 580 | 420 | 10 | 490 | 22 | 490- 630 | 355 | 22 | |
DIN 2391 Seamless Precision Steel Tubes Chemical Composition
| Grade | Mfg. Process | Chemical composition(%) | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
| St30Si | S | 0.10Max | 0.30Max | 0.55Max | 0.040Max | 0.040Max | - | - | - | - |
| St30A1 | S | 0.10Max | 0.05Max | 0.55Max | 0.040Max | 0.040Max | - | - | - | Al deoxydized |
| St35 | S | 0.17Max | 0.35Max | 0.40Max | 0.050Max | 0.050Max | - | - | - | - |
| St45 | S | 0.21Max | 0.35Max | 0.40Max | 0.050Max | 0.050Max | - | - | - | - |
| St52 | S | 0.22Max | 0.55Max | 1.60Max | 0.050Max | 0.050Max | - | - | - | - |
Specification
| Standards | DIN 2391-1 Cold Drawn Tube |
| DIN 2391-1 Cold Drawn Seamless Pipe Size | 4 to 219mm W. T.: 0.5 to 20mm |
| DIN 2391-1 Cold Drawn Welded Pipe Size | 5.0 mm – 1219.2 mm |
| DIN 2391-1 Cold Drawn EFW Pipe size | 5.0 mm – 1219.2 mm |
| DIN 2391-1 Cold Drawn Tube Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 2391-1 Cold Drawn Pipe Schedule | SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| DIN 2391-1 Cold Drawn Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| DIN 2391-1 Cold Drawn Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DIN 2391-1 Cold Drawn Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Length | Single Random, Double Random, Standard & Cut length Pipe & Tube |
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc |
| Type | Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc |
| End | Plain End, Beveled End, Treaded Pipe & Tube |
| Application | Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
Application
DIN 2391 Stainless Steel Seamless Tube Application Industries
DIN 2391 Stainless Steel Seamless Tube Test Certificates
Material Testing:
