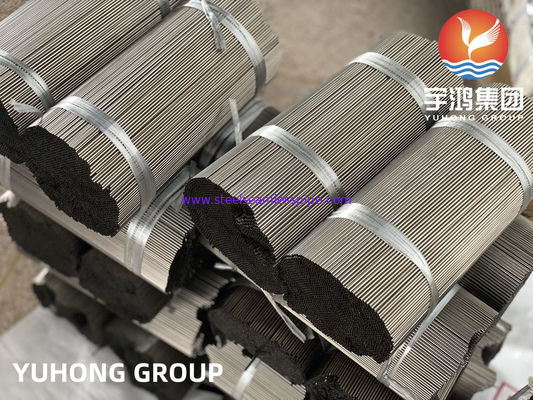

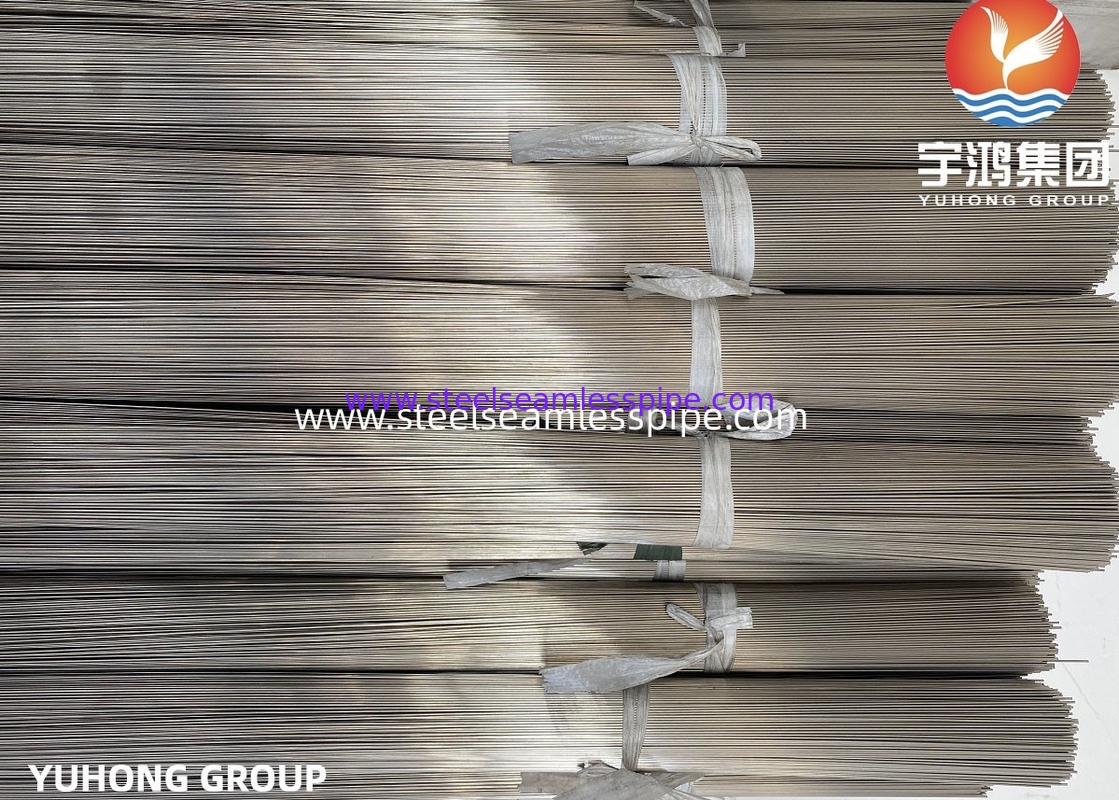

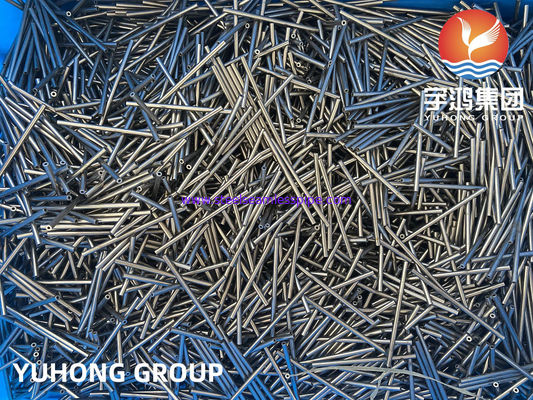

BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE

BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE

  • BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE
  • BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE
  • BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE
BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP316L,TP304,TP304L,SUS316L,SUS304
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: PLYWOOD CASE,BUNDLE,PALLET
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
OD: 0.1MM TO 25MM GRADE: TP304/304L/304H , TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L , SAF2205, SAF2507, S31803, S32750, S32760
STANDARD: EN10305 , ASTM , GOST PACKAGE: PLYWOOD CASE,BUNDLE
USAGE: WATCH,BALLPEN,INSTRUMENT,,,,,
High Light:

needle precision 0.1mm ss capillary tube

,

tp304 ss capillary tube

,

SUS steel capillary tube

BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE​



The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having inner surface free from oil, grease and dust particles. These tubes have a constant diameter and are used in simple refrigeration systems where the refrigerant flow is constant. Expanding capillary tubes: These tubes have a varying diameter and are used in systems where the refrigerant flow needs to be varied.



Features
  • Tight tolerances
  • Free from oil & dust particles from inside
  • Rust resistant

Applications
  • Gas and liquid lines
  • Medical instruments (hypodermic needle)
  • Chromatography
  • Measurement in remote thermometer systems (with or without compensation)


Available Grades : 304, 304L, 316, 316L

Available Types : Seamless & Welded

Available Size : OD :Min. 0.5mm to 6mm

WT:0.02 to 2mm

Length Max.: 1000m /pc


** All Round Tubes are Quoted OD x Wall.
ID Listed in Center Area
Wall Thickness (mm)
O.D. (mm) 0.075 0.08 0.1 0.125 0.15 0.175 0.2 0.225 0.25 0.3 0.35 0.375 0.4 0.45 0.5 0.6 0.75 0.8 0.85 1 1.25 1.5 1.8 2 2.5
0.1
0.2   0.04
0.3 0.15 0.14 0.1
0.4     0.2
0.5     0.3   0.2
0.55
0.6     0.4
0.62         0.32
0.7       0.45 0.4
0.8         0.5 0.45     0.3   0.1
0.9             0.5
1     0.8   0.7   0.6   0.5 0.4 0.3
1.1             0.7
1.2             0.8             0.3
1.3               0.85 0.8
1.4             1
1.5         1.2   1.1   1   0.8   0.7   0.5
1.6             1.2     1         0.6   0.1
1.7             1.3
1.8                 1.3       1
1.9                 1.4
2     1.8       1.6   1.5 1.4         1
2.2                   1.6                 0.5
2.4                         1.6
2.5             2.1   2 1.9     1.7   1.5
2.6                   2
2.8                         2
3             2.6   2.5           2   1.5     1
3.2             2.8           2.4
3.25                                         0.75
3.5                       2.75     2.5 2.3
4                 3.5           3   2.5     2 1.5 1
4.5                 4           3.5
5         4.7   4.6   4.5           4   3.5     3   2 1.4
5.3                 4.8
5.5                                       3.5
6         5.7       5.5       5.2   5   4.5 4.4   4   3 2.4 2 1


BRIGHT ANNEALED TUBE TP316L / TP304 NEEDLE PRECISION SS CAPILLARY TUBE 0
