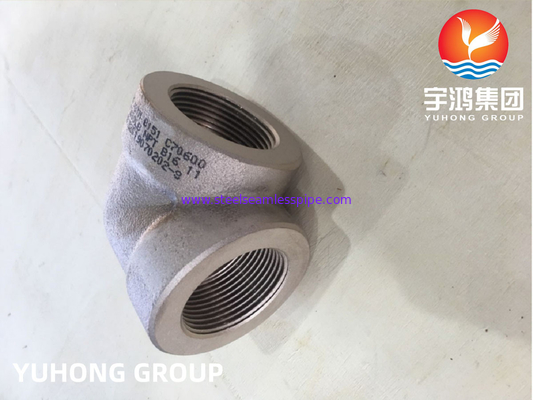

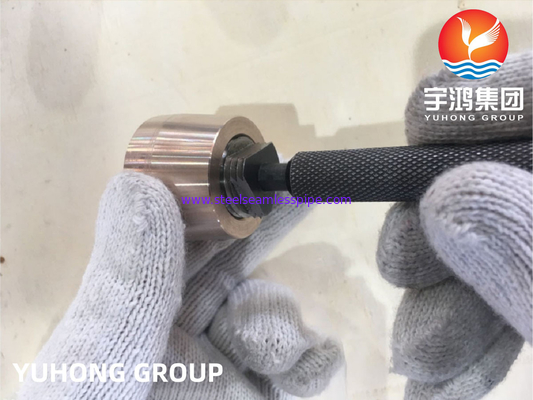

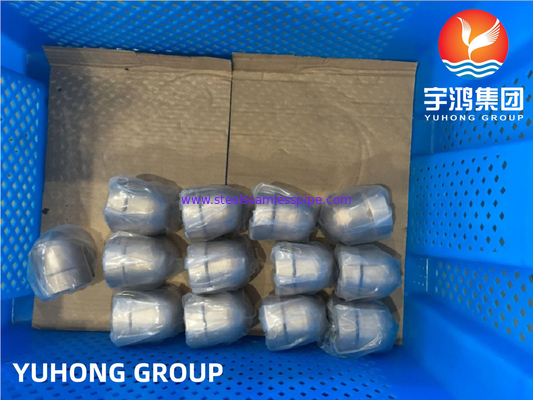

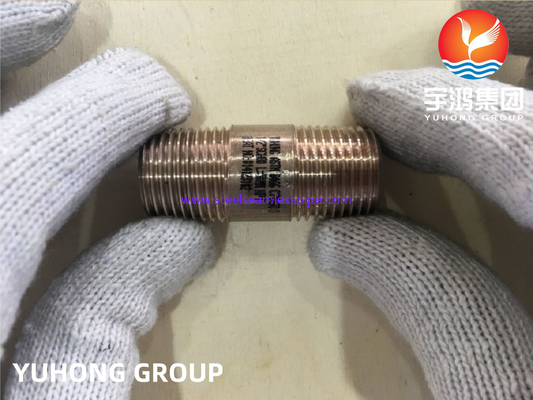

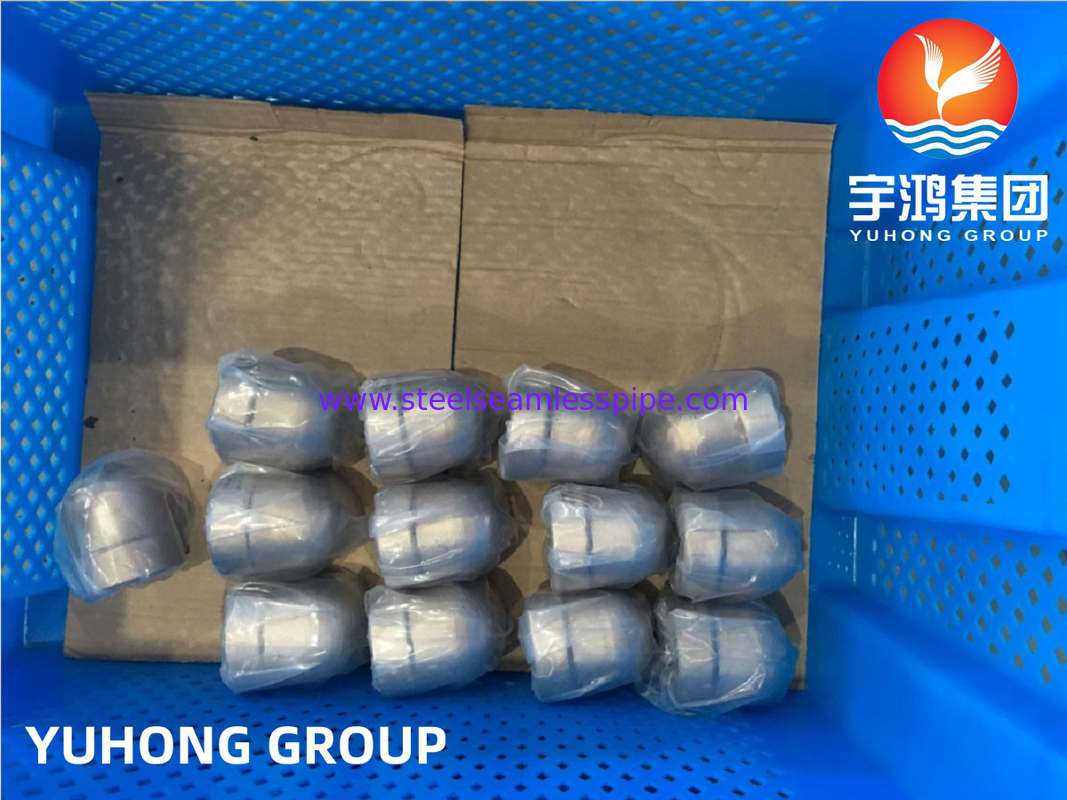

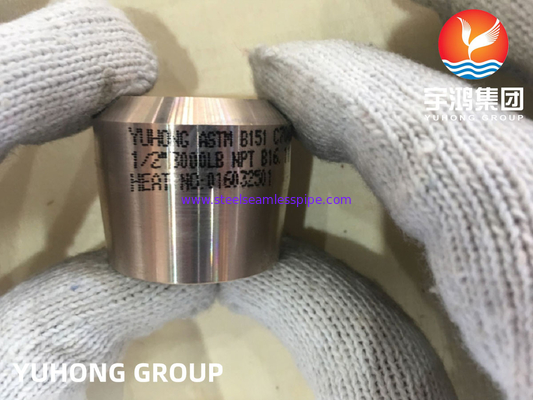

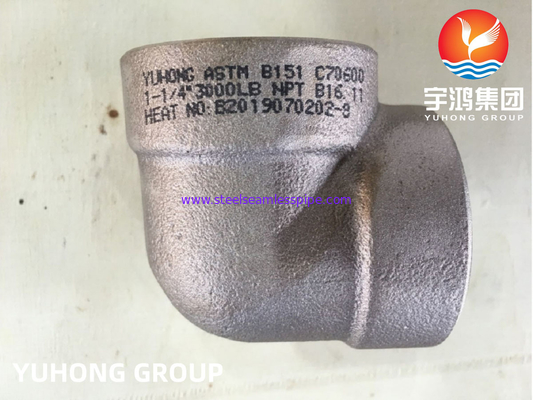

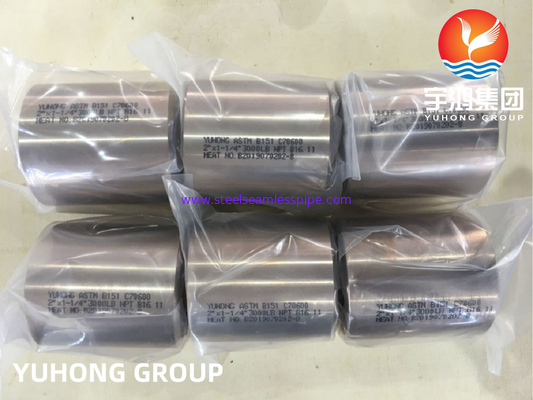

ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11

ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11

  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
  • ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
ASTM B151 C70600 Copper Nickel Forged Fittings 3000LB B16.11
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B151 C70600
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Contact Now
Detailed Product Description
Minimum Order Quantity: 1 PC Price: Negotiable
Packaging Details: PLY-WOODEN CASE OR PALLET Delivery Time: 15DAYS
Payment Terms: T/T, L/C NDT: Eddy Current Test , Hydrostatic Test , Ultrasonic Test
High Light:

Copper Nickel Forged Fittings

,

ASTM B151 Forged Fittings

,

3000LB Copper Nickel Pipe Fittings

ASTM B151 C70600 Copper Nickel Forged Fitting 3000LB B16.11





YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) , Copper Nickel alloy products (pipe, fitting, flange) already more than 25 years, every year sell more than 50000 tons of steel pipe and tube, and also supply millions fittings and flange. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia,  Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2015, ISO 14001, ISO 18001,...



Copper Nickel Pipe Flanges are used a lot in seawater piping systems, crankshafts, tubes for light-duty condensers, sea water pipe-work desalination units and in offshore platforms.
Cupro Nickel Flanges has an Elastic Modulus (C71500 annealed) of 22000 ksi (152 GPa). The Yield Strength (annealed) of Cu-Ni WNRF Flanges is 15000 psi (103 MPa). ASME SA151 Copper Nickel Threaded Flange has a Density of 0.323 lb/in³ (8.94 g/cm3). Poisson’s Ratio of Copper Nickel Screwed Flanges (C71500 annealed) is 0.325. These Copper Nickel Blind Flange pressure rating is very important as it determines what kind of Cu-Ni Industrial Flanges can be used, for which purpose, in which industry. Copper Nickel Grade Forged Flanges is solderable, it shows scaling resistance and very good corrosion. ANSI B16.5 Cuni Ring Type Joint Flanges exhibits superb resistance to corrosion (seawater especially), cavitation and erosion. Good weldability is displayed by Cu-Ni RTJ Flange. ASTM A151 Cu-Ni Threaded Flanges are durable and best of all, they are inexpensive. They are used in process equipment, hydraulic lines, automobile parts, underwater fencing, marine hardware components, feed water heaters, pump components, heating cables and in air conditioning plants.



Copper Nickel Flanges specifications
Specifications ASTM / ASME SB 61 / 62 / 151 / 152
Material NAVINIC 10® CuNi10Fe1Mn
NAVINIC 30® CuNi30Fe1Mn
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc
US STANDARDS ANSI
NAVSEA 810 - 4715319
Slip On Flange 1A
Socket Weld Flange 2A
Socket Weld Flange 2C (Butterfly)
Slip On Flange 5A
Socket Weld Flange 5B
Socket Weld Flange 5C
Socket Weld Flange 9C
Cupro Nickel Composite Flanges INNER FLANGES

Material :
NAVINIC 10® CuNi10Fe1Mn Copper Nickel
NAVINIC 30® CuNi30Fe1Mn Copper Nickel

Dimension :
DIN 86037 or similar

OUTER FLANGES

Material :
Carbon steel A37 or A105
(Galvanised or epoxy coated on request)

Dimension :
ISO NP10 - DIN 86037
Copper Nickel Flanges Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size 1/2" 36"
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
  Copper Nickel Composite Weld Neck - Inner Flange - DIN 86037 / EEMUA 145 In Copper Nickel
Copper Nickel Composite Weld Neck Flange - Outer Flange - DIN 86037 / EEMUA 145 / ANSI B16.5 In Carbon Steel A37 Or A105
Copper Nickel Composite Slip On Flange - DIN 86036 / EEMUA 145 / ISO In Copper Nickel And Carbon Steel
Copper Nickel Composite Blind Flange - ISO NP10 / ANSI B16.5 In Carbon Steel With Copper Nickel Disc Galvanized Or Epoxy Coated
Copper Nickel Solid Welding Neck Flange - DIN 2632 / EEMUA 145 / ANSI B16.5 In Copper Nickel
Copper Nickel Solid Slip On Flange - DIN 86033 / EEMUA 145 / ANSI B16.5 In Copper Nickel
Copper Nickel Solid Socket Welding Flange - ANSI B16.5 In Copper Nickel
Copper Nickel Solid Blind Flange - ISO NP10 / ANSI B16.5 In Copper Nickel
Copper Nickel Bulkhead Pieces - DIN 86068 In Copper Nickel And Carbon Steel





Trade Name UNS Copper Nickel Industry Specifications Chemical Composition Min.Tensile Min.Yield Elongation
(KSI) (KSI) %
CuNi 90/10 UNS C70600 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 Cu 88.6 min Pb .05 max 38 15 30
UNS C70620 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 Fe 1.8 max
Zn 1 max
Ni 9-11max
Mn 1.0 max
CuNi 90/10 UNS C7060X EEMUA 144 90/10, 145 90/10, 14 90/1 Cu rem. 40 15 30
Pb .01 max
Fe 1.5-2.0
Zn 0.2 max
P 0.2 max
S 0.2 max
Ni 10-11
Mn 0.5-1.0
CuNi 70/30 UNS C71500 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 Cu rem(65.0min) 52 18 45
UNS C71520 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 Pb .05 max*
DIN 2.0882 Fe 0.4-1.0
MIL C-15726, T-15005, T-16420, T-22214 Zn 1 max*
SAE J461, J463 Ni 29-33
  Mn 1 max
CuNi 70/30 UNS C71640 ASTM B111, B543, B552 Cu rem 63 25 -
Pb .05 max*
Fe 1.7-2.3
Zn 1 max*
Ni 29-32
Mn 1.5-2.5



Application: marine environments, power generation, offshore, oil & gas and defence sectors

Drawn copper nickel tube

combines cold and hot working properties,highest degree of seawater corrosion and erosion

resistance and great strength.Typical users are distillation and desalination plants and marine, coolers and heat exchangers.
