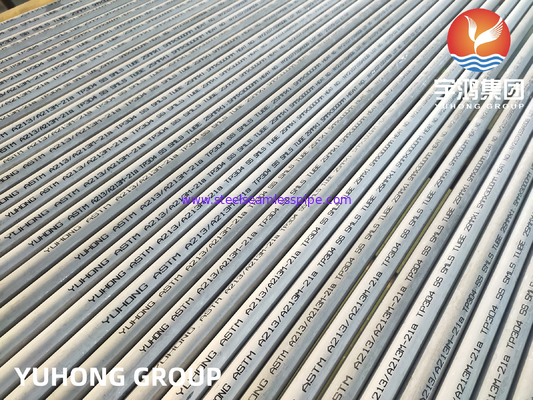

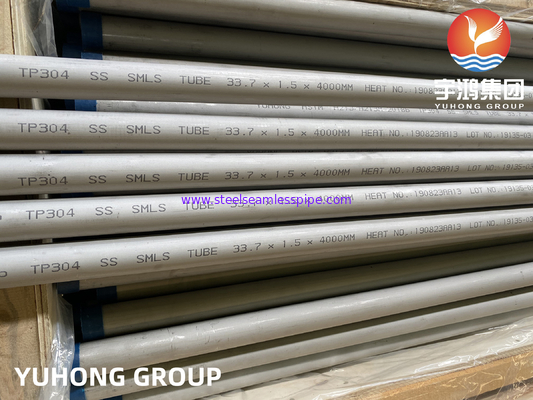

High Strength A213 TP304 Stainless Steel Seamless Heat Exchanger Tubes

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS,GL,DNV,NK,PED,AD2000,GOST
Model Number:	TP304

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	requirements/wooden case packing
Delivery Time:	7days
Payment Terms:	T/T,L/C

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Product Name:	Stainless Steel Seamless Tube	Material Grade:	TP304
Standard:	ASTM A213-2018	Certificate:	ABS,GL,DNV,NK,PED,AD2000,GOST
DNT:	ET,UT,PT,HT	Third Party Inspection:	BV,SGS,ASP
Highlight:	TP304 SS Seamless Heat Exchanger Tubes , A213 Seamless Heat Exchanger Tubes , High Strength TP304 SS Seamless Tube

Industrial Stainless Steel Seamless Tube A213 TP304 High Strength For Heat Exchanger

In the damp industrial or coastal atmospheres of Europe, they perform better than TP 304/304L and ferritic grades. In low temperature seawater they offer limited resistance to pitting but are susceptible to crevice attack. Their short- and long-time properties at elevated temperatures are also superior to those of comparable TP304/304L grades.

Specification
ASTM A213 / SA213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M: Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.

Other Standard: DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463...

Material Grade

American Standard	Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard	1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
GOST Standard	08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Size Range

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Final Finishing: Solution Annealed & Pickled/Bright Annealed.

Type of Tubes: U-bend & Straight.

Some of the quality tests carried out by us includes

Corrosion Test	Conducted only when specially requested by the client

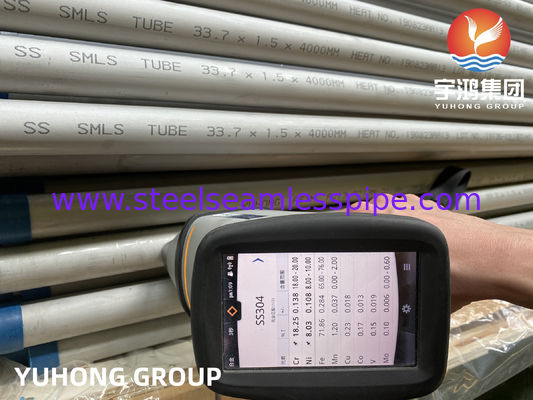

Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
