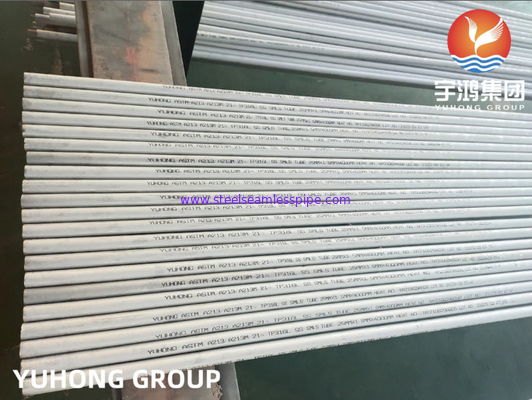

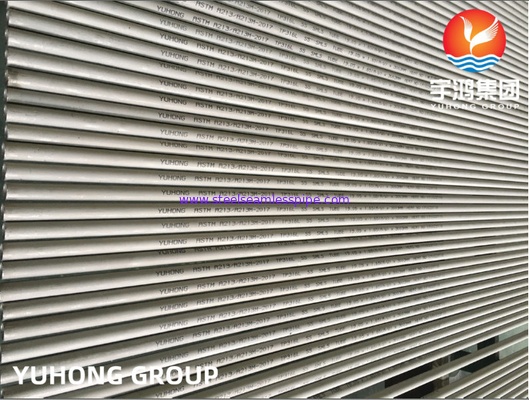

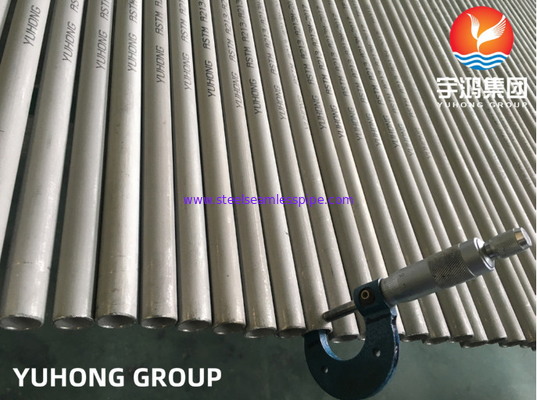

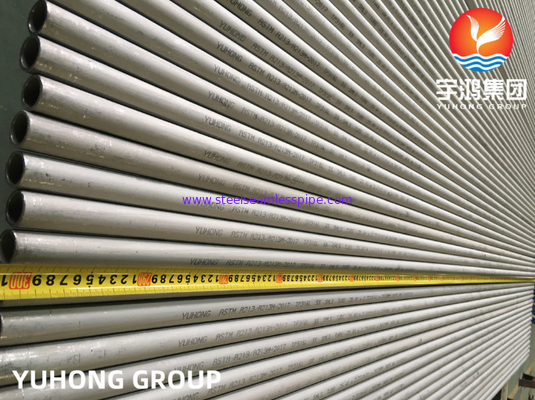

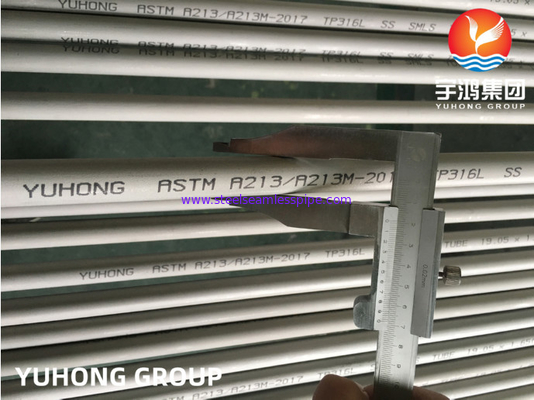

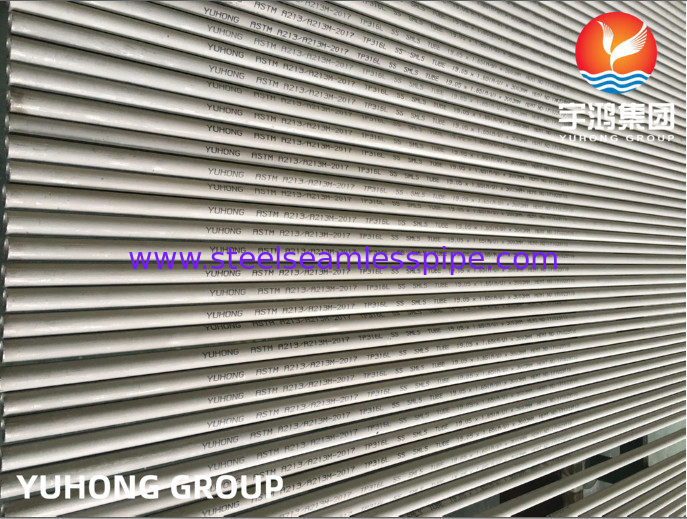

ASTM A213 TP316L Stainless Steel Seamless Heat Exchanger Tubes

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 TP316L

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	15-30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 TONS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Material Grade::	TP316L	Standard::	ASTM A213
NDT::	ET, UT, HT , PT	Type::	Seamless
Application::	Heat Exchanger,Boiler, Superheater, Condenser Tubes	Outside Diameter:	6.00mm To 101.6mm
Wall Thickness:	0.5mm To 8mm
Highlight:	ASTM A789 Stainless Steel Seamless Pipe , CCS Stainless Steel Seamless Pipe , ASTM A213 Stainless Seamless Tube

HEAT EXCHANGER TUBE ASTM A213 TP316L STAINLESS STEEL SEAMLESS TUBE

Overview

Grade 316 Stainless Steel Tubes or UNS S31600 Tubes are one of the most common grades of stainless steel offers good strength and heat resistant and oxidation resistance properties in continuous temperature service. The key properties of this material are its high chromium and medium nickel content making its resistance to oxidation, sulfidation and other forms of hot corrosion its main characteristics.

Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields.

Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm).

Specification

ASTM A213/A213M-21a Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

ASTM A249 / A249M : Standard Specification for Welded Austenitic Steel Boiler, Superheater Heat-Exchanger, and Condenser Tubes.

Other Standard : DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463...

Specifications	ASTM A213 / ASME SA213
Dimensions	ASTM, ASME and API
Range	1/2"OD - 12"OD
Outside Diameter	3.00 mm - 219.10 mm, 6.35 mm O.D to 114.3 mm O.D
Length	Single Random, Double Random & Required Length
Thickness	0.40 mm - 12.70 mm, 0.8 mm to12.7 mm
Schedule	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160, XXS
Type	Seamless
Form	Round Tube, Square Tube, Rectangular Tube
End	Plain End, Beveled End, Treaded

SS 316L Pipes & Tubes Equivalent Grades:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition:

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	16.00 - 18.00	2.00 - 3.00	10.00 - 14.00	68.89 min

Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Applications

1. Food preparation equipment particularly in chloride environments.
2. Laboratory benches & equipment.
3. Coastal architectural panelling, railings & trim.
4. Boat fittings.
5. Chemical containers, including for transport.
6. Heat Exchangers.
7. Woven or welded screens for mining, quarrying & water filtration.
8. Threaded fasteners.
9. Springs.

Material Grade

American Standard	Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard	1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Gost Standard	08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Some of the quality tests carried out by us includes

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections
