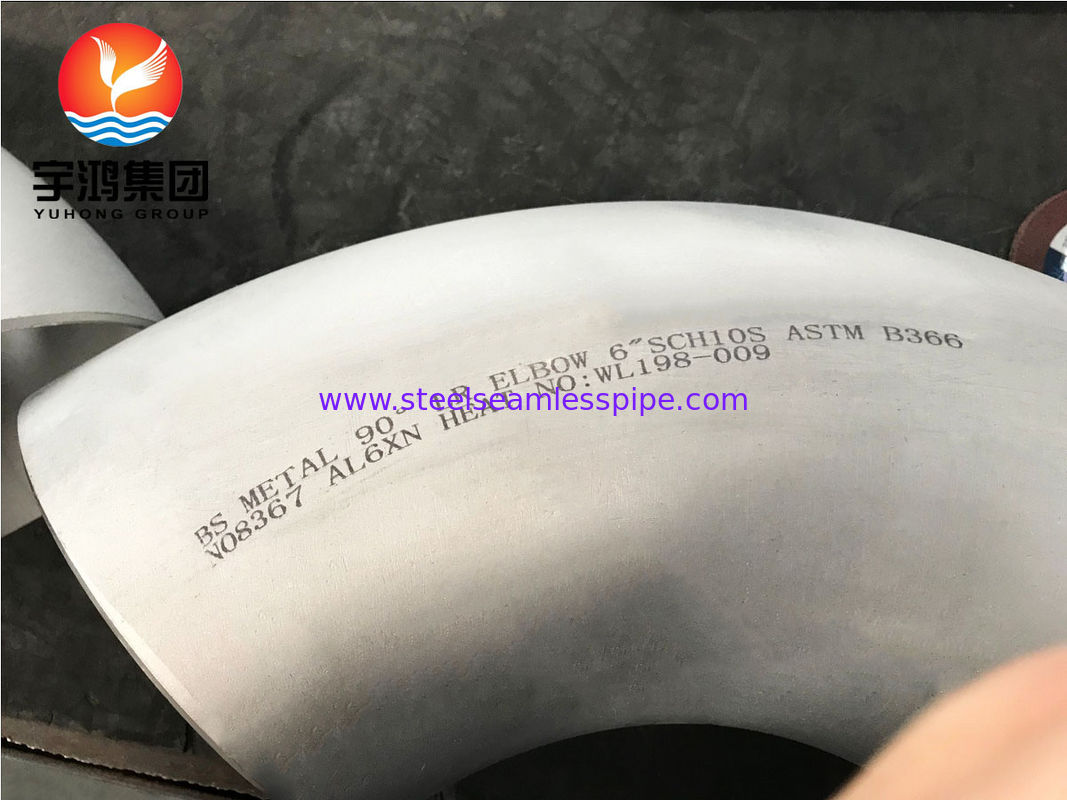

ASTM B366 AL6XN UNS N08367 Super Austenitic Stainless Steel Elbow
Product Overview
ASTM B366 AL6XN (UNS N08367) Elbows are premium-grade super austenitic stainless steel pipe fittings designed for highly corrosive environments. With a high content of nickel, chromium, molybdenum, and nitrogen, AL6XN offers exceptional resistance to pitting corrosion, crevice corrosion, chloride stress corrosion cracking, and seawater corrosion.
These elbows are manufactured according to ASTM B366 standards and are widely used in offshore platforms, seawater desalination plants, chemical processing facilities, power generation systems, pharmaceutical plants, and oil & gas projects where conventional stainless steels such as 316L cannot provide sufficient corrosion resistance.
Product Specifications
|
Parameter
|
Details
|
|
Product Name
|
AL6XN Super Austenitic Stainless Steel Elbow
|
|
Material Grade
|
AL6XN / UNS N08367
|
|
Standard
|
ASTM B366
|
|
Product Type
|
Butt Weld Elbow
|
|
Elbow Angle
|
45°, 90°, 180°
|
|
Radius
|
LR / SR
|
|
Size Range
|
1/2" – 48"
|
|
Wall Thickness
|
SCH 5S – SCH XXS
|
|
Manufacturing Process
|
Seamless / Welded
|
|
Surface Finish
|
Pickled, Passivated
|
|
Connection
|
Butt Weld
|
|
Certification
|
EN10204 3.1
|
|
Origin
|
China
|
Alloy AL6XN (N08367) Chemical Composition
| Ni |
Cr |
Mo |
C |
N |
Mn |
Si |
P |
S |
Cu |
Fe |
| 23.5-25.5 |
20.00-22.00 |
6.00-7.00 |
0.03 Max |
0.18-0.25 |
2.0 Max |
1.00 Max |
.040 Max |
0.03 Max |
0.75 Max |
Remainder |
Mechanical Properties
|
Property
|
Value
|
|
Tensile Strength
|
≥ 770 MPa
|
|
Yield Strength
|
≥ 365 MPa
|
|
Elongation
|
≥ 35%
|
|
Hardness
|
≤ 95 HRB
|
Available Types
- 45 Degree Elbow
- 90 Degree Elbow
- 180 Degree Return Elbow
- Long Radius Elbow (LR)
- Short Radius Elbow (SR)
- Seamless Elbow
- Welded Elbow
Alloy AL6XN(N08367) Fittings Applications
- Seawater Heat Exchangers
- Offshore Oil & Gas Rigs
- FGD Scrubbers
- Reverse Osmosis Equipment
- Distillation Columns
Manufacturing Process

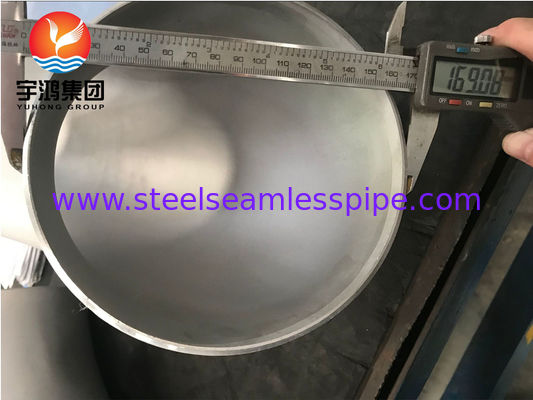

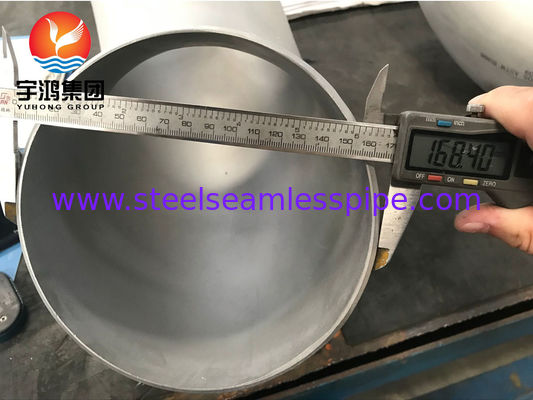

Raw Material Inspection → Cutting → Forming → Heat Treatment → Pickling → Passivation → Dimension Inspection → PMI Testing → Packaging
Quality Control
Every AL6XN elbow can be supplied with:
-

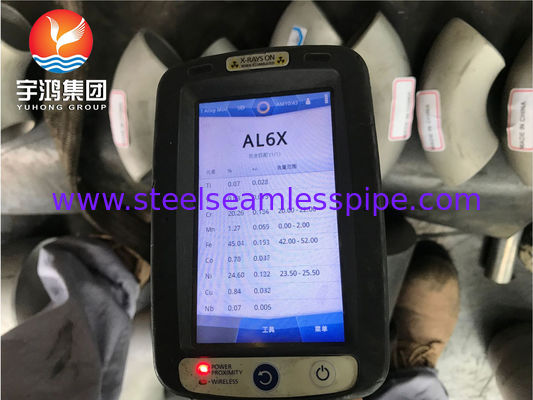

PMI Testing
-
Ultrasonic Testing (UT)
-
Dye Penetrant Testing (PT)
-
Hydrostatic Testing
-
Positive Material Identification
-
EN10204 3.1 MTC
-
Third-Party Inspection (SGS, BV, TUV)
Packaging & Delivery
-
Seaworthy Export Plywood Cases
-
Fumigation-Free Wooden Pallets
-
Waterproof Packaging
-
Plastic End Caps Protection
-
Customized Packing Available
AL6XN vs 316L Stainless Steel
|
Property
|
AL6XN
|
316L
|
|
Chloride Resistance
|
Excellent
|
Moderate
|
|
Pitting Resistance
|
Excellent
|
Good
|
|
Seawater Service
|
Excellent
|
Limited
|
|
Strength
|
Higher
|
Standard
|
|
Service Life
|
Longer
|
Shorter
|
Frequently Asked Questions (FAQ)
AL6XN is a super austenitic stainless steel alloy designated as UNS N08367, developed for superior resistance to chloride-induced corrosion and seawater environments.
- Is AL6XN better than 316L?
Yes. AL6XN offers significantly better resistance to pitting, crevice corrosion, and chloride stress corrosion cracking than 316L stainless steel.
- What industries commonly use AL6XN elbows?
Oil & gas, offshore engineering, desalination, chemical processing, power generation, marine, and pharmaceutical industries.
- Can AL6XN fittings be supplied with EN10204 3.1 certificates?
Yes. Material Test Certificates (MTC 3.1) are available for all supplied products.
- What inspection services are available?
PMI, UT, PT, dimensional inspection, hydrostatic testing, and third-party inspection services can be provided.
