Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YuHong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP316L TP304L TP304 TP316 |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ACCORDING TO CUSTOMER'S REQUEST |
| Surface: | Pickled , Bright Annealed, Polished | Application: | Boiler, Heat Exchanger |
|---|---|---|---|
| Standard: | ASTM A213, ASME SA213 , EN 10216-5 , GOST 9941-81 , JIS G 3459 | Material Grade: | TP316 , TP316L , TP316H, TP316Ti , TP316LN , SUS316, SUS316L , 1.4404 |
| TYPE: | SEAMLESS | NDT: | Eddy Current Test ( ASTM E426), Ultrasonic Test (ASTM E213 ), Hydrostatic Test ( ASTM A1016) , Penetration Test（ASTM E165） |
| High Light: | ASME TP316L Stainless Steel Seamless Pipe,ASME SA 213 SS Seamless Pipe,ASTM A213 SS Seamless Pipe |
||

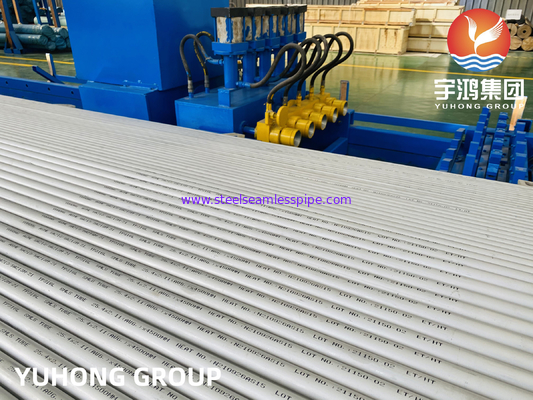

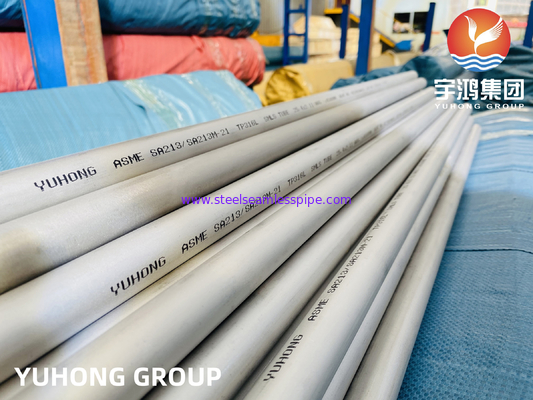

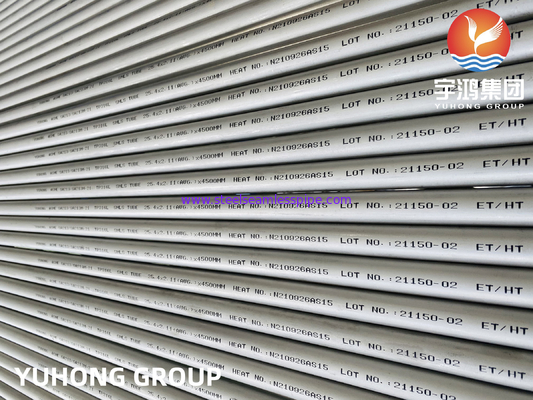

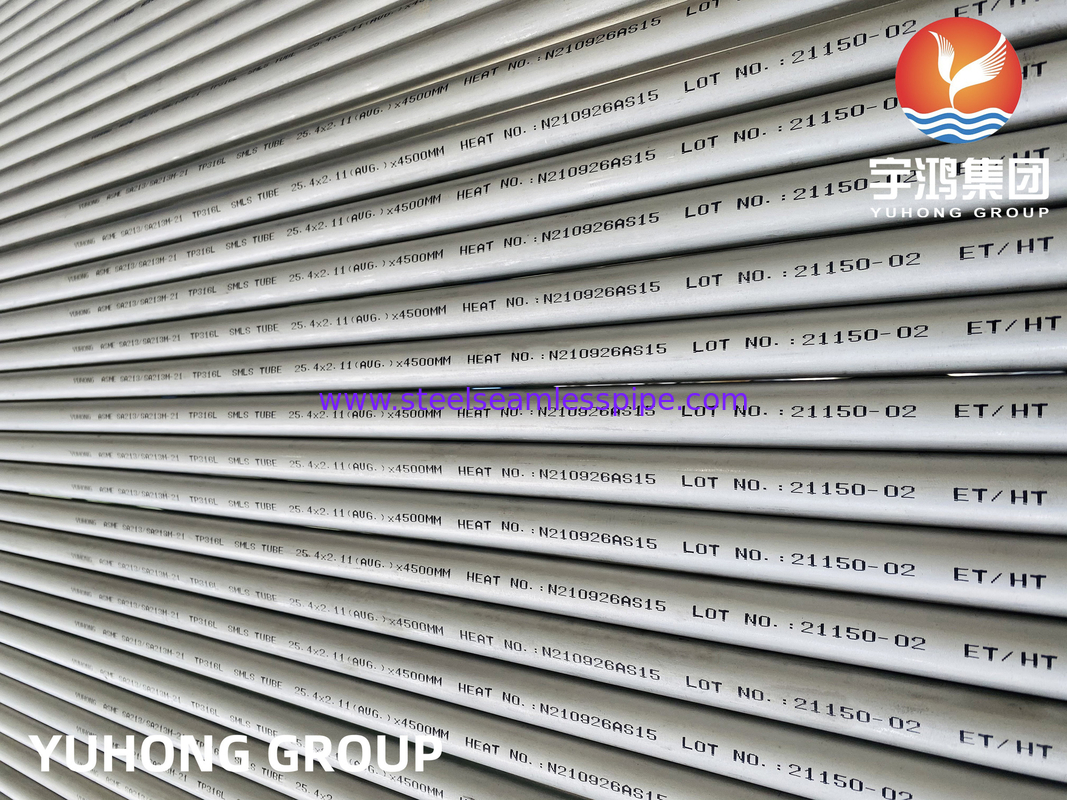

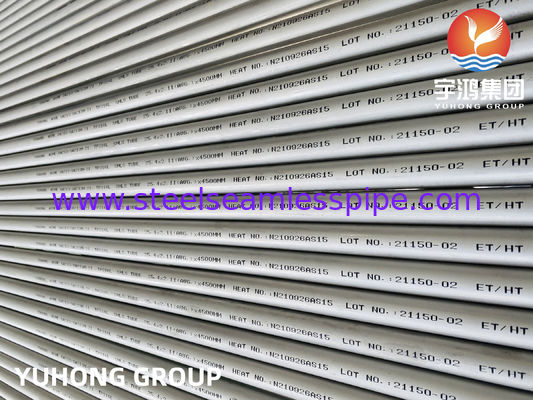

ASME SA213 TP316L Stainless Steel Seamless Tube For Boiler and Heat Exchange Application
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 32 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , .... The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Stainless Steel Seamless Tube Chemical Composition:
|
MATERIAL
|
C | MN | SI | P | S | CR | MO | NI | N | |
| SA213 TP 316L Tube | Min | - | - | - | - | - | 16 | 2 | 10 | - |
| Max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | 0.1 | |
| SA213 TP 316H Tube | Min | 0.04 | 0.04 | 0 | - | - | 16 | 2 | 10 | - |
| max | 0.1 | 0.1 | 0.75 | 0.045 | 0.03 | 18 | 3 | 14 | - |
Stainless Steel Seamless Tube Mechanical Properties:
|
GRADE
|
TENSILE STRESS | YIELD STR | ELONG | HARDNESS | |
| (MPA) MIN | 0.2% PROOF | (% IN 50MM) MIN | |||
| (MPA) MIN | ROCKWELL B (HR B) MAX | BRINELL (HB) MAX | |||
| SS 316L Tube | 485 | 170 | 40 | 95 | 217 |
| SS 316H Tube | 515 | 205 | 40 | 95 | |
Stainless Steel Seamless Tube Pressure Rating:
|
OD inches
|
Ave. Wall inches | Min Yield Strength (PSI) | Min Tensile Strength (PSI) | Theoretical Burst Pressure * (PSI) | Working Pressure (PSI) 25% of Burst | Theoretical Yield Point ** (PSI) | Collapse Pressure *** (PSI) |
| 0.25 | 0.02 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
| 0.25 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
| 0.25 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
| 0.25 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
| 0.25 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
| 0.375 | 0.02 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
| 0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
| 0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
| 0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
| 0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
| 0.5 | 0.02 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
| 0.5 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.5 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
| 0.5 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,316L |
| 0.5 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
| 0.5 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
| 0.625 | 0.02 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
| 0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
| 0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
| 0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
| 0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
| 0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
| 0.75 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
| 0.75 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
| 0.75 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
| 0.75 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
| 0.75 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
| 0.75 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
| 0.75 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
| 0.75 | 0.12 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
| 0.875 | 0.02 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
| 0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,316L |
| 0.875 | 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
| 0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
| 0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
| 0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
| 0.875 | 0.12 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
| 1 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
| 1 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
| 1 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
| 1 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
| 1 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
| 1 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
| 1 | 0.12 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
| 1 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
| 1.25 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.25 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
| 1.25 | 0.065 | 30,000 | 75,000 | 8,705 | 2,176 | 3,482 | 2,958 |
| 1.25 | 0.083 | 30,000 | 75,000 | 11,485 | 2,871 | 4,594 | 3,719 |
| 1.25 | 0.095 | 30,000 | 75,000 | 13,443 | 3,361 | 5,377 | 4,213 |
| 1.25 | 0.109 | 30,000 | 75,000 | 15,843 | 3,961 | 6,337 | 4,776 |
| 1.25 | 0.12 | 30,000 | 75,000 | 17,822 | 4,455 | 7,129 | 5,207 |
| 1.25 | 0.134 | 30,000 | 75,000 | 20,468 | 5,117 | 8,187 | 5,742 |
| 1.5 | 0.035 | 30,000 | 75,000 | 3,671 | 918 | 1,469 | 1,367 |
| 1.5 | 0.049 | 30,000 | 75,000 | 5,243 | 1,311 | 2,097 | 1,896 |
| 1.5 | 0.065 | 30,000 | 75,000 | 7,117 | 1,779 | 2,847 | 2,487 |
| 1.5 | 0.083 | 30,000 | 75,000 | 9,333 | 2,333 | 3,733 | 3,136 |
| 1.5 | 0.095 | 30,000 | 75,000 | 10,878 | 2,719 | 4,351 | 3,559 |
| 1.5 | 0.109 | 30,000 | 75,000 | 12,754 | 3,188 | 5,101 | 4,043 |
| 1.5 | 0.12 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
| 1.5 | 0.134 | 30,000 | 75,000 | 16,315 | 4,079 | 6,526 | 4,881 |
| 1.5 | 0.148 | 30,000 | 75,000 | 18,439 | 4,610 | 7,375 | 5,336 |
| 1.75 | 0.035 | 30,000 | 75,000 | 3,125 | 781 | 1,250 | 1,176 |
| 1.75 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
| 1.75 | 0.065 | 30,000 | 75,000 | 6,019 | 1,505 | 2,407 | 2,146 |
| 1.75 | 0.083 | 30,000 | 75,000 | 7,860 | 1,965 | 3,144 | 2,711 |
| 1.75 | 0.095 | 30,000 | 75,000 | 9,135 | 2,284 | 3,654 | 3,080 |
| 1.75 | 0.109 | 30,000 | 75,000 | 10,672 | 2,668 | 4,213 | 3,504 |
| 1.75 | 0.12 | 30,000 | 75,000 | 11,921 | 2,980 | 4,768 | 3,832 |
| 1.75 | 0.134 | 30,000 | 75,000 | 13,563 | 3,391 | 5,425 | 4,242 |
| 1.75 | 0.148 | 30,000 | 75,000 | 15,268 | 3,817 | 6,107 | 4,645 |
| 1.75 | 0.165 | 30,000 | 75,000 | 17,430 | 4,357 | 6,972 | 5,124 |
| 2 | 0.035 | 30,000 | 75,000 | 2,720 | 680 | 1,088 | 1,032 |
| 2 | 0.049 | 30,000 | 75,000 | 3,864 | 966 | 1,546 | 1,434 |
| 2 | 0.065 | 30,000 | 75,000 | 5,214 | 1,303 | 2,086 | 1,887 |
| 2 | 0.083 | 30,000 | 75,000 | 6,788 | 1,697 | 2,715 | 2,387 |
| 2 | 0.095 | 30,000 | 75,000 | 7,873 | 1,968 | 3,149 | 2,715 |
| 2 | 0.109 | 30,000 | 75,000 | 9,175 | 2,294 | 3,670 | 3,092 |
| 2 | 0.12 | 30,000 | 75,000 | 10,227 | 2,557 | 4,091 | 3,384 |
| 2 | 0.134 | 30,000 | 75,000 | 11,605 | 2,901 | 4,642 | 3,751 |
| 2 | 0.148 | 30,000 | 75,000 | 13,028 | 3,257 | 5,211 | 4,111 |
| 2 | 0.165 | 30,000 | 75,000 | 14,820 | 3,705 | 5,928 | 4,542 |
