Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001 |
| Model Number: | ASTM A790, ASTM A928 S32750 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Standard: | ASTM A790, ASTM A928 | Material Grade: | UNS S32750 |
|---|---|---|---|
| O.D.: | 1/8'',1/4'',3/8'',1/2'',3/4'',1'',1 1/4'',1 1/2'', 2'', 2 1/2'' 3'', 3 1/2'', 4'', 5'', 6'', 8'', 10'', 12'', 14'', 16'', 18'', 20'', 22''. 24'' | W.T.: | SCH 5S, SCH 10, SCH 10S,SCH 20, SCH 30, STD, SCH 40, SCH 40S, SCH 60, XS,SCH 80, SCH 80S, SCH100,SCH 120, SCH 160 , XXS |
| Type: | Seamless, Welded | NDT: | ET, HT, RT, PT |
| Application: | Chemical Processing, Transport And Storage. Oil And Gas Exploration And Offshore Rigs. Oil And Gas Refining. Marine Environments. Pollution Control Equipment. Pulp And Paper Manufacturing Chemical Process Plant | ||
| High Light: | astm a790 super duplex pipe,a928 super duplex stainless steel pipe,uns s32750 super duplex stainless steel pipe |
||

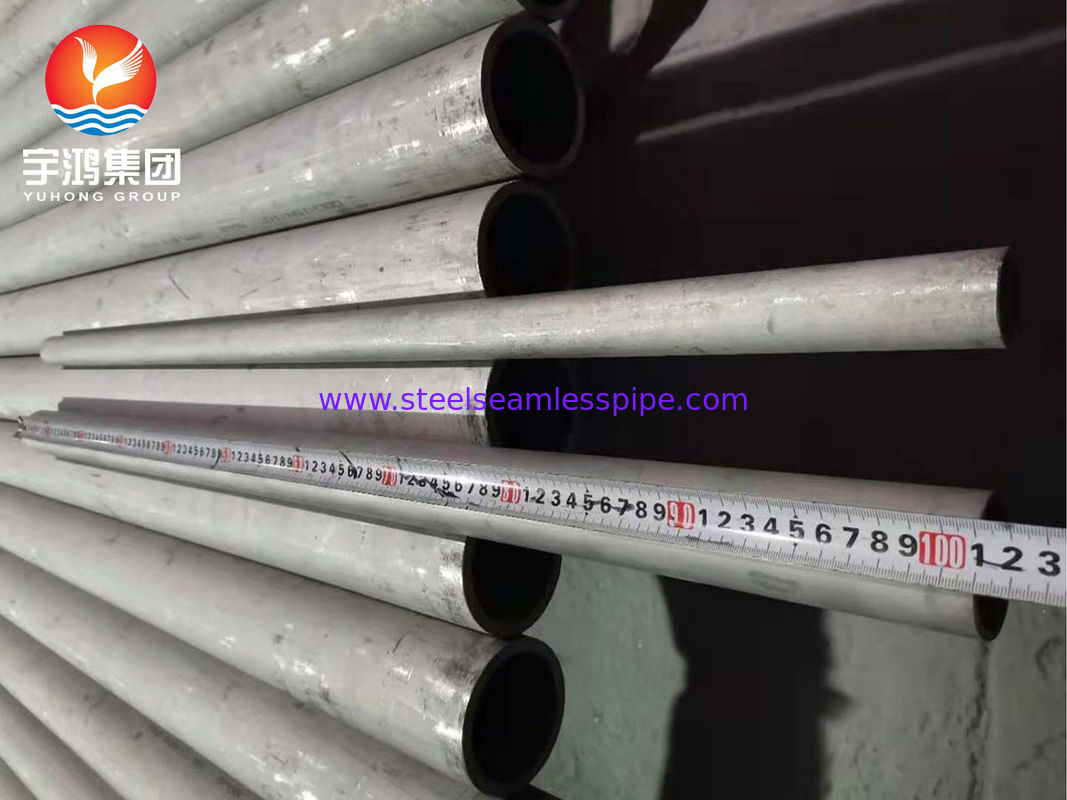

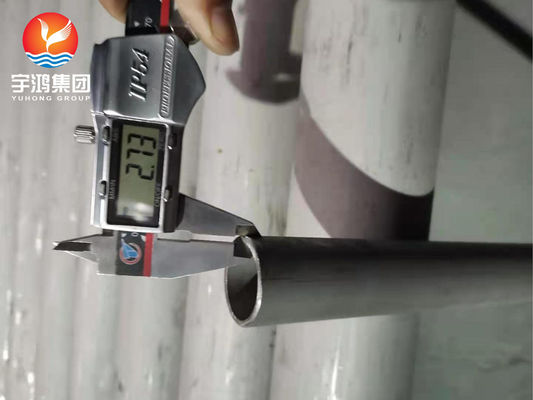

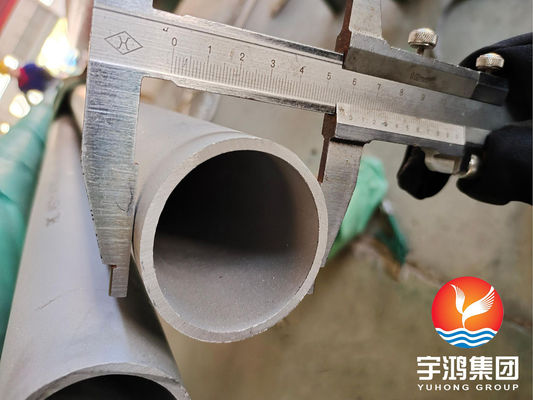

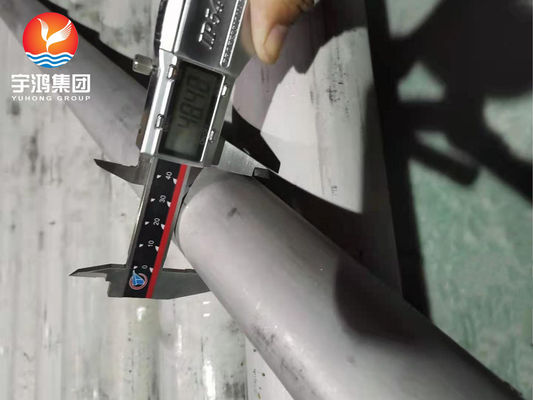

Super Duplex Stainless Steel ASTM A790 & ASTM A928 UNS S32750 WELDED AND SEAMLESS PIPE
S32750 Super Duplex Pipe have enhanced pitting and crevice corrosion resistance when compared with 300-series austenitic stainless steel or conventional duplex alloys. This can be attributed to the enhanced levels of chromium, molybdenum and nitrogen found in these materials. Alloy 2507 is the most common “super” duplex grade.
UNS 31803 (F51), UNS 32205 (F60) Alloy 2205, UNS S32550 (F61), UNS S 32750 (F53), Alloy 2507 and UNS 32760 (F55)
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410),UNS S31500(Cr18NiMo3Si2),
UNS32760(1.4501)
Usage of Duplex 2507 Pipe S32750 Stainless Steel:
It should be limited to applications below 6000 F (3160 C). Extended elevated temperature exposure can reduce both the toughness and corrosion resistance of alloy 2507.The high chromium, molybdenum, and nitrogen levels provide excellent resistance to pitting, crevice, and general corrosion. The duplex structure provides 2507 with exceptional resistance to chloride stress corrosion cracking.
S32750 Super Duplex Pipe possesses excellent mechanical properties. Often a light gauge of S32750 Stainless Steel can be used to achieve the same design strength of a thicker nickel alloy. The resulting saving in weight can reduce the overall cost of fabrication.
Chemical Composition:
| Grade |
C max |
Si max |
Mn max |
P max |
S max |
Cr | Ni | Mo | N |
| UNS S32750 | 0.030 | 0.8 | 1.2 | 0.030 | 0.015 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 |
| UNS S31803 | 0.030 | 1.0 | 2.0 | 0.020 | 0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
| UNS S31500 | 0.030 | 1.0 | 1.2-2.0 | 0.030 | 0.030 | 18.0-19.0 | 4.5-5.5 | 2.5-3.5 | 0.05-0.10 |
Physical Properties:
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC |
| UNS S32750 | 550 | 800 | 15 | 20 |
| UNS S31803 | 450 | 620 | 25 | 20 |
| UNS S31500 | 440 | 630 | 30 | 20 |
Duplex Stainless Steel Pipe Application:
Chemical processing, Transport and Storage.
Oil and gas exploration and offshore rigs.
Oil and gas refining.
Marine environments.
Pollution control equipment.
Pulp and paper manufacturing
Chemical process Plant
