ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting

ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting

  • ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting
  • ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting
  • ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting
  • ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting
ASTM A815 S32750 Super Duplex Stainless Steel Equal Tee with Chloride Service Capability Butt Weld Fitting
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ISO, PED, Third-party inspection
Model Number: S32750 Super Duplex Steel Equal Tee
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: Depends on quantity
Payment Terms: L/C at sight,T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Product Name: S32750 Super Duplex Equal Tee Material Grade: UNS S32750 / 2507
Material Type: Super Duplex Stainless Steel Fitting Type: Equal Tee
Connection Method: Butt Weld Metallurgical Structure: Ferritic-Austenitic Duplex
Corrosion Design Consideration: Pitting, Crevice & Chloride SCC Dimensional Standard: ASME B16.9 / Project Specification
Highlight:

smls steel pipe fittings

,

astm a815 butt weld tee

,

s32750 butt weld tee

ASTM A815 S32750 2507 Super Duplex Stainless Steel Equal Tee
Product Introduction

2507 Super Duplex Equal Tees for High-Corrosion Piping Systems

ASTM A815 UNS S32750 Equal Tee is a 2507 super duplex stainless steel butt-welding fitting designed to create a 90-degree branch connection in process piping systems.

UNS S32750 combines a ferritic-austenitic duplex microstructure with relatively high chromium, molybdenum and nitrogen contents. The grade is commonly selected for piping exposed to chloride-containing fluids, seawater, brine and demanding chemical environments.

The equal tee maintains the same nominal branch size as the run, allowing a straight pipeline to be divided into two branches of identical nominal diameter. Butt-weld ends provide a direct welded connection with the adjoining pipe.

ASTM A815 covers wrought ferritic/austenitic stainless steel fittings, while dimensional requirements for butt-welding fittings are normally specified together with applicable dimensional standards and project requirements.

Technical Specifications
Item Specification
Product Name S32750 Super Duplex Equal Tee
Material Grade UNS S32750 / 2507
Material Type Super Duplex Stainless Steel
Material Standard ASTM A815
ASME Equivalent SA815
Fitting Type Equal Tee
Connection Butt Weld
Dimensional Standard ASME B16.9 / MSS SP-43
Manufacturing Hot Formed / Cold Formed
Heat Treatment Solution Annealed
Size Range According to Standard / Drawing
Wall Thickness Sch 5S-XXS / Custom
Inspection PMI, UT, PT, Dimensional Inspection
Certification EN 10204 3.1 / 3.2
Product Features
  • Super Duplex 2507 Metallurgy: UNS S32750 belongs to the super duplex stainless steel family, combining ferritic and austenitic phases to provide a balance of strength and corrosion resistance.
  • Chloride Service Capability: The high-alloy chemistry makes 2507 suitable for environments where pitting corrosion, crevice corrosion and chloride-induced stress corrosion cracking are design considerations.
  • Equal Branch Geometry: The run and branch have the same nominal diameter, making the fitting suitable for equal-size branch connections.
  • Butt-Weld Configuration: The butt-weld ends allow the tee to be directly welded to the piping system and provide a continuous flow path after fabrication.
  • Solution-Annealed Condition: Proper solution annealing is important for maintaining the intended duplex microstructure and corrosion performance.
Typical Applications
  • Seawater Piping Systems
  • Desalination Plants
  • Offshore Process Piping
  • Chemical Process Piping
  • Produced Water Systems
  • Brine Handling Systems
  • Flue Gas Desulfurization (FGD) Systems
  • Marine Piping
  • Oil & Gas Process Facilities
  • High-Chloride Process Lines
Equivalent Grade Comparison
Standard Grade / Designation
ASTM A815 S32750
ASME SA815 S32750
UNS S32750
Commercial Grade 2507
EN 1.4410
EN Designation X2CrNiMoN25-7-4
S32750 2507 vs S31803 2205 Equal Tee
Feature 2205 Duplex 2507 Super Duplex
UNS S31803 / S32205 S32750
Material Family Duplex Super Duplex
Cr Level Lower Higher
Mo Level Lower Higher
Nitrogen Lower Higher
Chloride Resistance High Higher
Typical Service General Duplex Applications More Severe Chloride Service

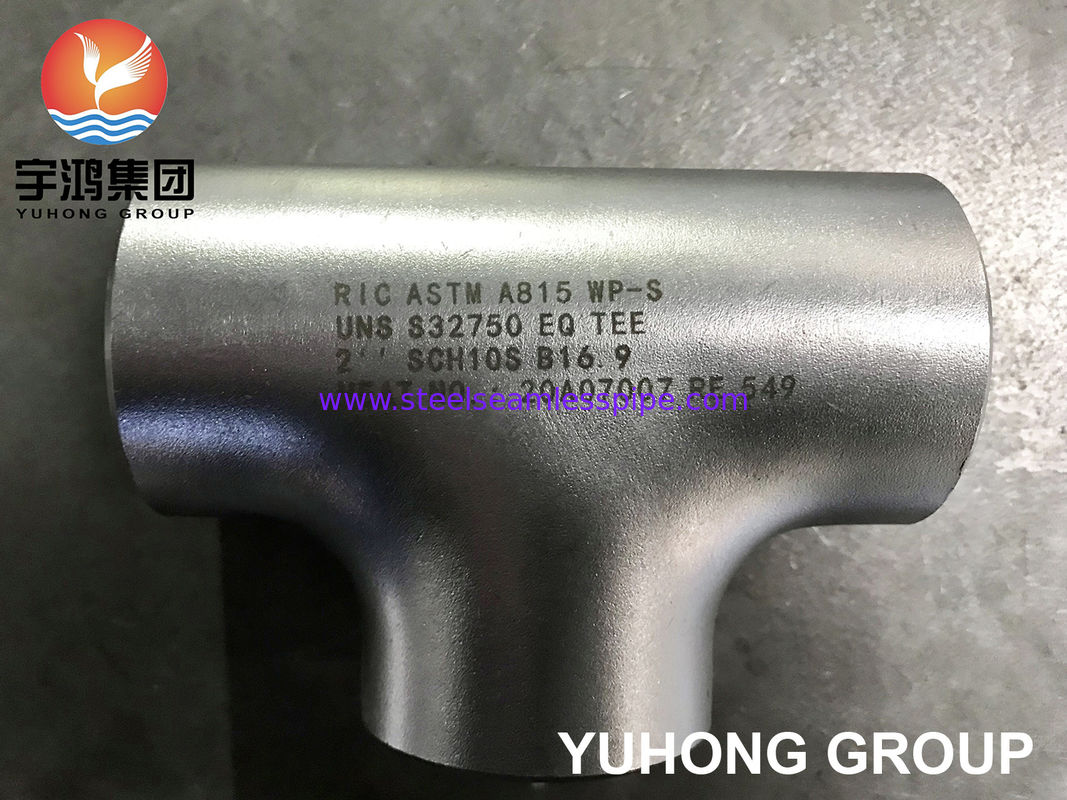

ASTM A815 S32750 2507 Super Duplex Stainless Steel Equal Tee product image
