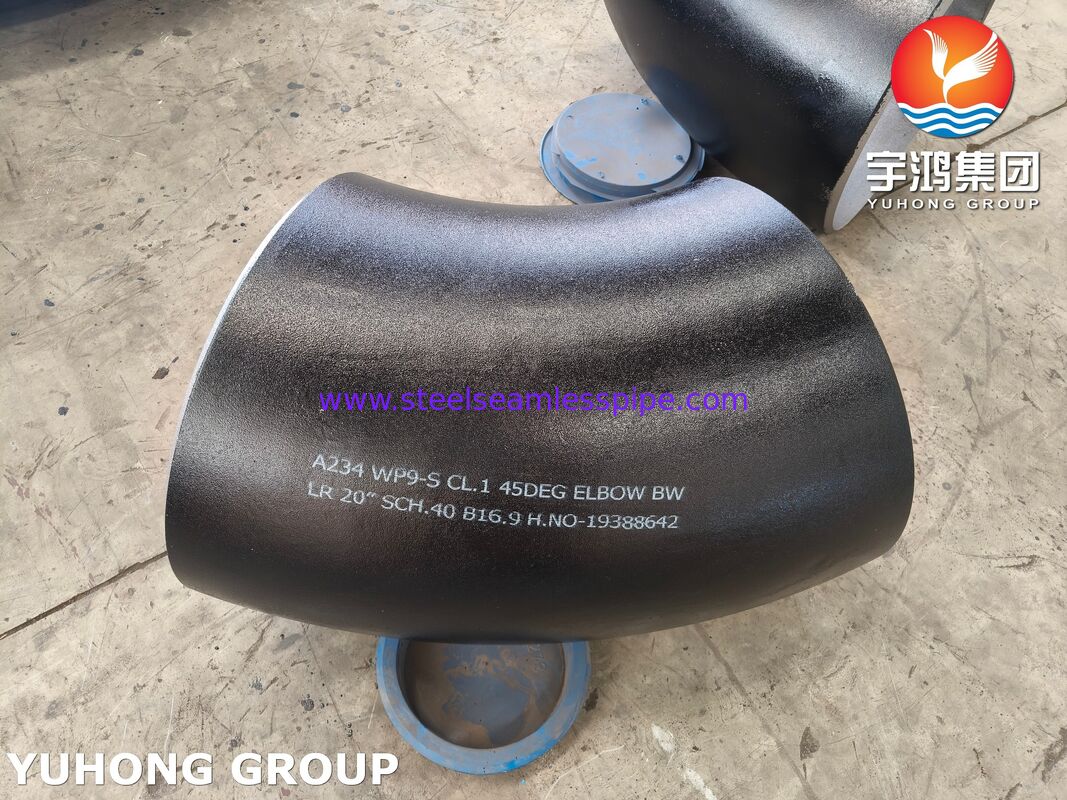

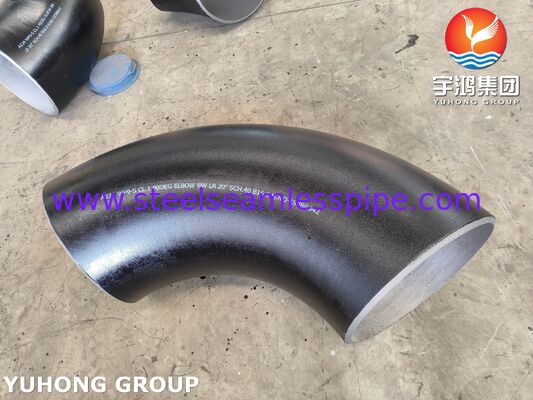

ASTM A234 WP9 CL.1 Alloy Steel Elbow for High Temperature Piping

Product Overview

ASTM A234 WP9 CL.1 elbow is manufactured from chromium-molybdenum alloy steel and is designed for high-temperature pressure piping systems, including boiler pipelines, power plant equipment, heat exchangers, and petrochemical process systems.

As a butt weld pipe fitting, the elbow provides a directional change in piping systems while maintaining a continuous welded connection. WP9 Class 1 material is commonly used in elevated temperature applications where alloy steel fittings are required according to engineering design specifications.

Manufactured according to ASTM A234 / ASME SA234 requirements, WP9 CL.1 elbows are produced through forming, heat treatment, machining, and inspection processes.

Material and Standard

WP9 Class 1 Chrome Moly Alloy Steel Elbow

Standard: ASTM A234 / ASME SA234
Material Grade: WP9 Class 1
Material Type: Chromium Molybdenum Alloy Steel
Product Type: Butt Weld Elbow

ASTM A234 covers wrought carbon steel and alloy steel pipe fittings for moderate and elevated temperature service.

Material Characteristics

ASTM A234 WP9 Alloy Steel

WP9 is a chromium-molybdenum alloy steel grade mainly used for high-temperature pressure piping components.

Typical alloy elements include:

Chemical composition and mechanical properties shall comply with ASTM A234 WP9 CL.1 requirements.

Product Design

Butt Weld Elbow

ASTM A234 WP9 CL.1 elbows are used to change pipeline direction, commonly available in:

• 45 Degree Elbow
• 90 Degree Elbow
• 180 Degree Return Bend

Common radius options:

• Long Radius (LR)
• Short Radius (SR)

Manufacturing Process

Forming Process

WP9 alloy steel pipes are processed into elbow shapes through controlled forming methods.

Manufacturing methods may include:

• Hot forming
• Heat treatment after forming

Heat Treatment

Heat treatment is performed according to ASTM A234 requirements.

Typical processes include:

• Normalizing
• Tempering

End Preparation

Machining processes include:

• Beveling
• Surface finishing
• Dimensional adjustment

Inspection

Final inspection includes:

• Dimensional inspection
• Material verification
• Non-destructive testing when required

Product Specifications

Available Specifications

Applications

Power Plant Piping

ASTM A234 WP9 CL.1 elbows are commonly used in:

• Steam piping systems
• Boiler pipelines
• Thermal power equipment

Boiler and Heat Exchanger Systems

Applications include:

• Superheater piping
• Reheater piping
• High-temperature heat exchanger systems

Petrochemical Industry

Used in:

• Refinery piping
• Process pipelines
• High-temperature fluid systems

Industrial Pressure Piping

Suitable for:

• Alloy steel piping systems
• Pressure equipment connections

Quality Control and Inspection

Material Inspection

Testing may include:

• Chemical composition analysis
• Mechanical property testing
• PMI verification

Dimensional Inspection

Including:

• Outside diameter
• Wall thickness
• Elbow angle
• Center-to-end dimension

Non-Destructive Testing

Available inspection:

• Ultrasonic Testing (UT)
• Magnetic Particle Testing (MT)
• Liquid Penetrant Testing (PT)

Inspection requirements can be adjusted according to customer specifications.

Packaging

ASTM A234 WP9 CL.1 elbows are packaged according to export transportation requirements.

Packaging methods:

• Wooden cases
• Steel pallets
• Protective wrapping

Product marking includes:

• Standard designation
• Material grade
• Size
• Schedule
• Heat number
