Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300

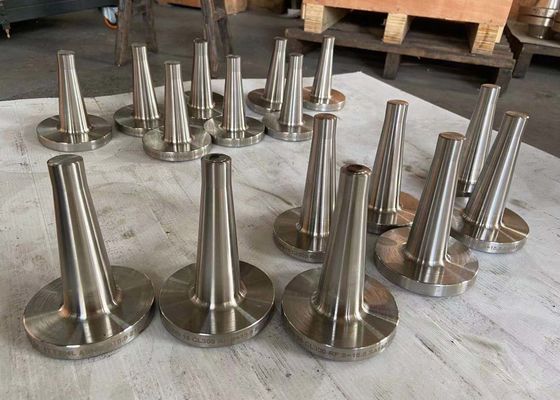

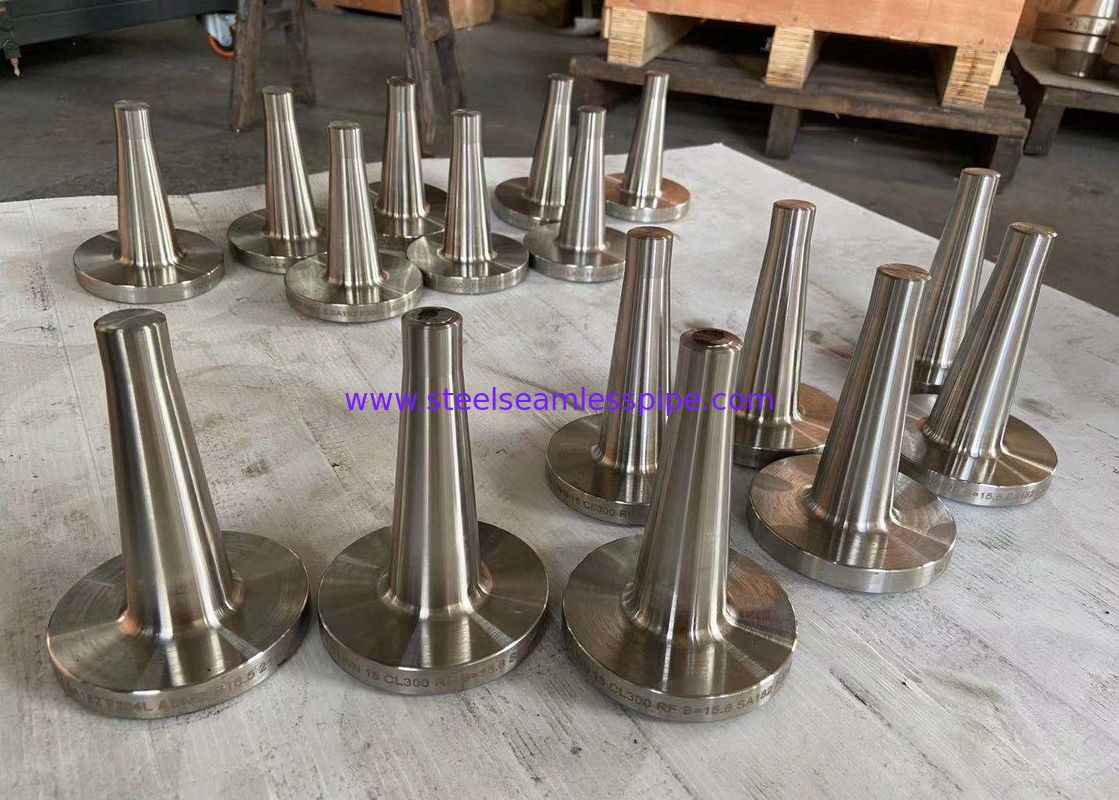

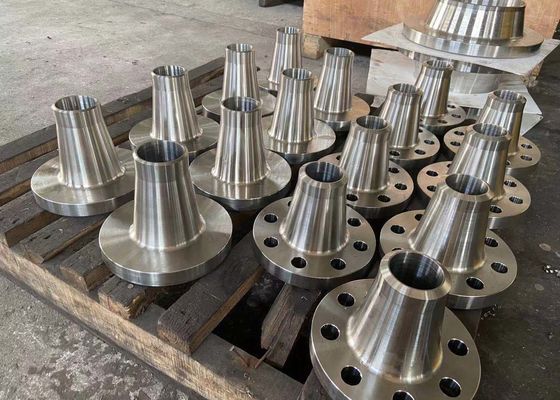

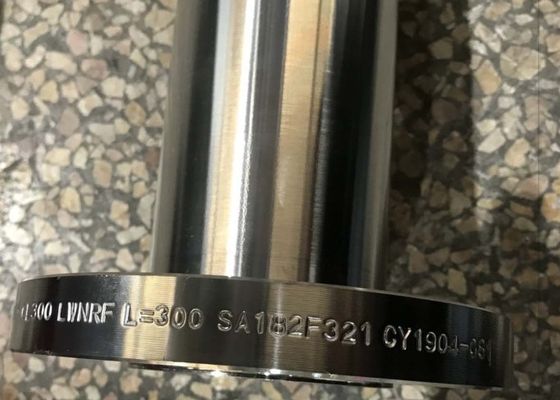

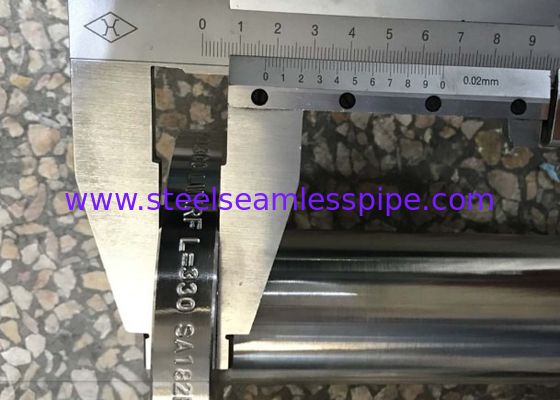

Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300

  • Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300
  • Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300
  • Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300
  • Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300
Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM, JIS, DIN, EN
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 15days->
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
Name: FLANGE (WN RTJ) Specification: A182
OD: ≤24'' Pressure: Class150/300/600/9001500/2500
High Light:

asme a182 wn rtj flange

,

aisi b16.5 wn rtj flange

,

class 300 wn rtj flange

ASME A182 Weld Neck Ring Type Joint FLANGE (WN RTJ) AISI B16.5 Class 300



Flange Faces

Different types of flange faces are used as the contact surfaces to seat the sealing gasket material. ASME B16.5 and B16.47 define various types of flange facings, including the raised face, the large male and female facings which have identical dimensions to provide a relatively large contact area.

Other flange facings covered by these standards include the large and small tongue-and-groove facings, and the ring joint facing specifically for ring joint type metal gaskets.

Raised Face (RF)

The Raised Face flange is the most common type used in process plant applications, and is easily to identify. It is referred to as a raised face because the gasket surfaces are raised above the bolting circle face. This face type allows the use of a wide combination of gasket designs, including flat ring sheet types and metallic composites such as spiral wound and double jacketed types.

The purpose of a RF flange is to concentrate more pressure on a smaller gasket area and thereby increase the pressure containment capability of the joint. Diameter and height are in ASME B16.5 defined, by pressure class and diameter. Pressure rating of the flange determines the height of the raised face.

The typical flange face finish for ASME B16.5 RF flanges is 125 to 250 µin Ra (3 to 6 µm Ra).

Raised Face height

For the height measures H and B of all described dimensions of flanges on this website, with exception of the Lap Joint flange, it is important to understand and remember the following:

In pressure classes 150 and 300, the height of raised face is approximately 1.6 mm (1/16 inch). In these two pressure classes, almost all suppliers of flanges, show in their catalog or brochure, the H and B dimensions including the raised face height. ((Fig. 1))

Raised face height

In pressure classes 400, 600, 900, 1500 and 2500, the height of raised face is approximately 6.4 mm (1/4 inch). In these pressure classes, most suppliers show the H and B dimensions excluding the raised face height. (Fig. 2)

Flat Face (FF)

The Flat Face flange has a gasket surface in the same plane as the bolting circle face. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting.

Flat face flanges are never to be bolted to a raised face flange. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required. This is to keep the thin, bittle cast iron flange from being sprung into the gap caused by the raised face of the carbon steel flange.



Ring-Type Joint (RTJ)

The Ring Type Joint flanges are typically used in high pressure (Class 600 and higher rating) and/or high temperature services above 800°F (427°C). They have grooves cut into their faces which steel ring gaskets. The flanges seal when tightened bolts compress the gasket between the flanges into the grooves, deforming (or Coining) the gasket to make intimate contact inside the grooves, creating a metal to metal seal.

An RTJ flange may have a raised face with a ring groove machined into it. This raised face does not serve as any part of the sealing means. For RTJ flanges that seal with ring gaskets, the raised faces of the connected and tightened flanges may contact each other. In this case the compressed gasket will not bear additional load beyond the bolt tension, vibration and movement cannot further crush the gasket and lessen the connecting tension.



ANSI/ASME B16.5 RTJ FLANGE DIMENSIONS

Ring Type joint Flange Dimensions

Class 300 / 400 / 600 Ring Type Joint Flange Dimensions

Ring Type joint Flange Dimensions

Asme A182 Weld Neck Ring Type Joint Wn Rtj Flange Aisi B16.5 Class 300 3
