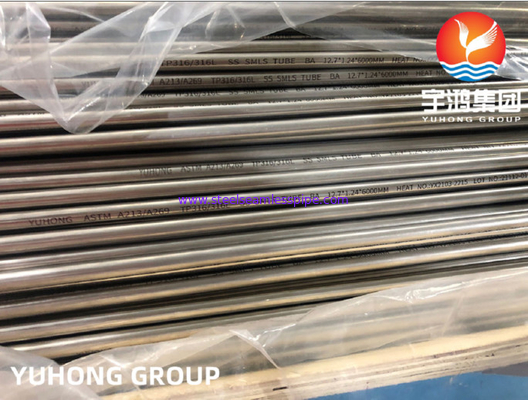

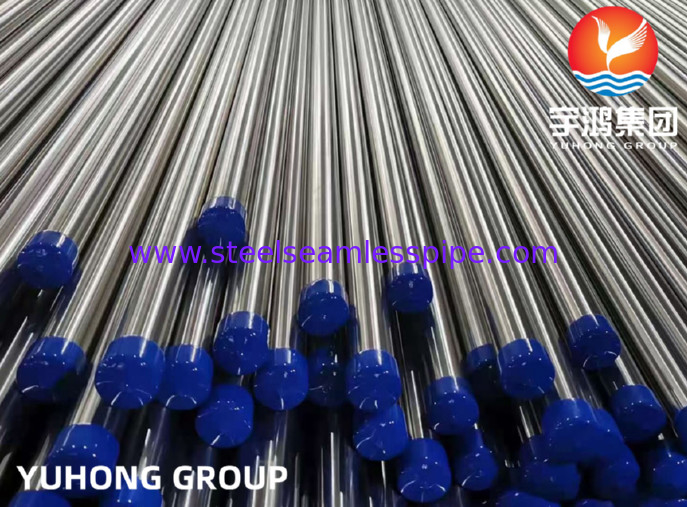

Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled

Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled

  • Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled
  • Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled
  • Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled
  • Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled
Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASTM A269 TP316L
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: PLY-WOODEN CASE PACKING/IRON CASE PACKING
Delivery Time: 25DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
GRADE: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
High Light:

astm a269 bright annealed tube

,

tp316l bright annealed tube

,

asme sa269 cold rolled tube

Cold Rolld Instrument Bright Annealed Tube ASTM A269 / ASME SA269 TP316L


Stainless Steel Tubes, Bright Annealed ,ASTM A213 / ASTM A269 TP304/304L TP316/316L 19.05 X 1.65 X 6096MM



YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS



Characteristic: With cold press (mainly cold rolling), the gas protects heat treatment, with high precision:

ID:Ra≤0.4μm,OD:Ra≤0.8μm;Mainly for precision instrument, Hydraulic pressure system, exhaust gas

system etc.


Standard: ASTM/ASME A/SA213, A/SA269, DIN17458/17457, EN10216-5/10217-7. After negotiation, we can supply pipe with customers’ requirement.



TP317L ASTM A269 / ASME SA269 Stainless Steel Seamless Instrument Tube



Grade



TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard



ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:3.18-101.6mm
WT:0.5-20mm
Length:Max.12M
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package Plastic in both ends, then packed in iron case



Specification :











Size
OD : 3.18 - 101.6mm
WT : 0.5 - 20mm
Length : >1000Meters
4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm
6 * 1mm / 6 * 1.5mm
6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm
7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm
9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm
10 * 1mm / 10 * 1.5mm
12 * 1mm / 12 * 1.5mm / 12 * 2mm
12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm
14 * 1mm / 14 * 1.5mm / 14 * 2mm
15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm
16 * 1mm / 16 * 1.5mm / 16 * 2mm
19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm



Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75



Application:
Bright annealed stainless steel welded pipe is widely used in making military products, semiconductor, biological medicine, precision instruments and meters, hydraulic parts and many other industrial products.



Astm A269 Asme Sa269 Tp316l Bright Annealed Tube Cold Rolled 0
