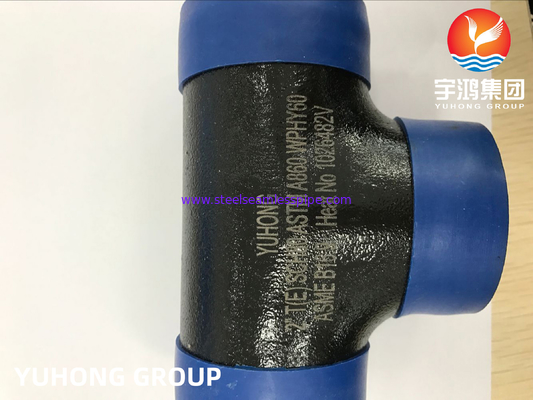

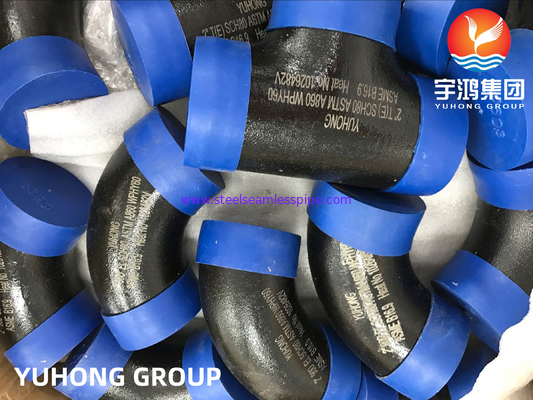

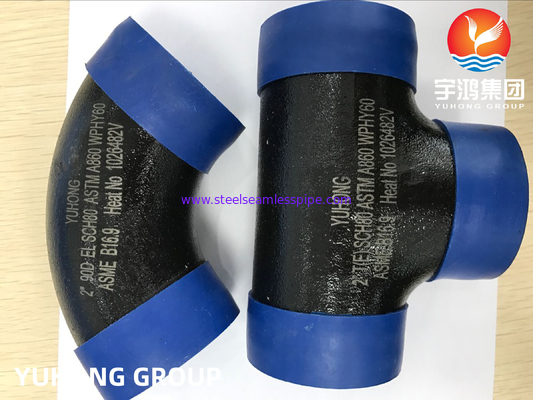

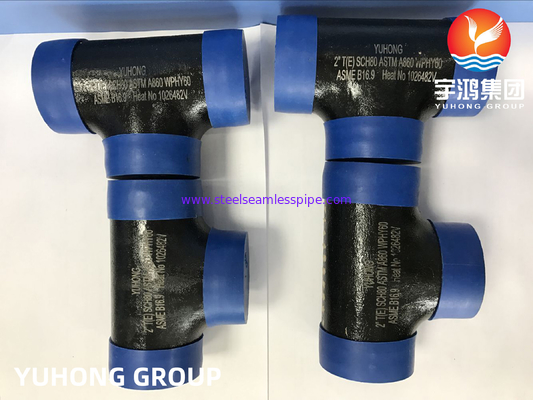

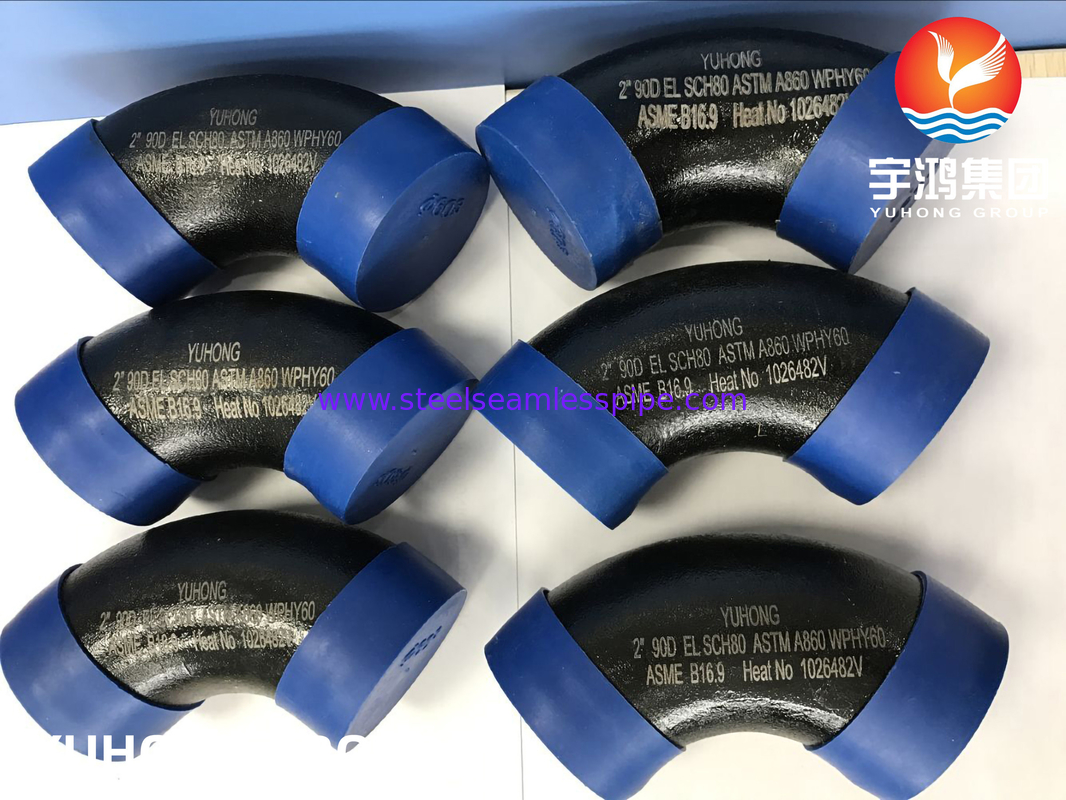

ASTM A860 WPHY60 WPHY42 WPHY52 WPHY65 WPHY70 WPHY80 CARBON STEEL ELBOW BLACK PAINTING

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	A860 WPHY60 WPHY42 WPHY52 WPHY65 WPHY70 WPHY80

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE,BUNDLE,PALLET
Delivery Time:	7DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

MATERIAL:	A860 WPHY60 WPHY42 WPHY52 WPHY65 WPHY70 WPHY80	OD:	1/4" To 100"
SURFACE:	Black Painting Or Other Color Coating	WT:	Sch10s To XXS
STANDARD:	ANSI B16.9, MSS SP 43
Highlight:	carbon steel pipe elbow astm a860 , astm a860 carbon steel elbow , wphy60 carbon steel elbow

ASTM A860 WPHY60 Carbon Steel Elbow

Property		GRADE
Property		WPHY 42	WPHY 46	WPHY 52	WPHY 60	WPHY 65	WPHY 70
Yield Minᴬ 0.2 Ksi[MPa]	Strength , % offset,	42[290]	46[315]	52[360]	60[415]	65[450]	70[485]
Elongation		60[415]	63[435]	66[455]	75[515]	77[530]	80[550]
Standard Specimen, Size Specimen ,	Round Or small Proportional Min,% in 4D	-85[585]	-88 [605]	-91[625]	-100 [690]	-102 [705]	-105 [725]
Rectangular For section 5/16 in. And over, Sizes tested Section;min,	specimen, thickness [7.94 mm] And for all In full % in 2 in . [50 mm]	25	25	25	20	20	20
Rectangular For Less than [7.94 mm]; [50 mm]. Specimen	Specimen Thickness 5/16 in. Min % 2 in. Width of 1.50 in . [40 mm]	32	23	23	28	28	28
Rectangular For Less than [7.94 mm]; [50 mm]. Specimen	Specimen, Thickness 5/16 in . Min, % 2 in . Width of 1.50 in . [40 mm]	B	B	B	B	B	B

ASTM A860 WPHY GR 60 PIPE FITTINGS CHEMICAL COMPOSITION

Grade	C	Mn	S	P	Si	Ni	Cr	Mo	Cu	Ti	V	Cb	Al
WPHY 60	0.20	1.00-1.45	0.03	0.01	0.15-0.40	0.50	0.30	0.25	0.35	0.05	0.10	0.06

ASTM A860 WPHY GR 60 PIPE FITTINGS MECHANICAL PROPERTIES

Element	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
WPHY 60	515-690	415	28 %

Carbon Steel A860 WPHY 60 Elbow Specification

Standard Specification :	ASTM A860 WPHY 60 Fittings
Check Sizes:	(SMLS UPTO 24”) 1/2” TO 36” (Buttweld 8” TO 36” )
Standard:	MSS-SP-43 Type A Fittings, JIS B2312 Fittings, ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type B Fittings
Application:	Chemical Industry Natural Gas Industry Oil And Gas Industry Fabrication Industry Nuclear Power Plant Water Pipeline Industry
Fitting Machining Equipment:	Press machine, Bending machine, Electric bevelling machine, Sand-blasting machine, Pushing Machine etc
Dimensions Class:	2000#, 3000#, 6000#, 9000#
Thickness:	View Our Thickness: Sch5S, Sch10, Sch20, Sch10, Sch20, Sch30, SchTD, Sch40, Sch60, XS, Sch80, Sch100, Sch120, Sch140, Sch160.
Coating Fitting Faces :	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Rating Pressure:	Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
