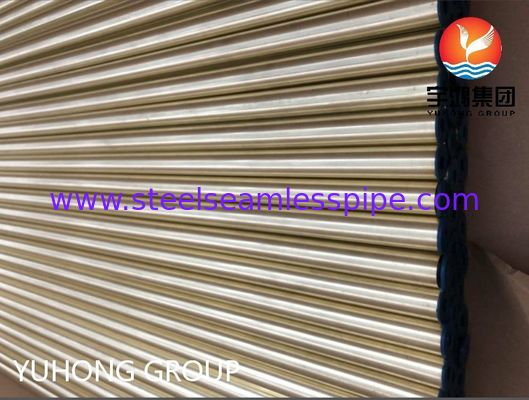

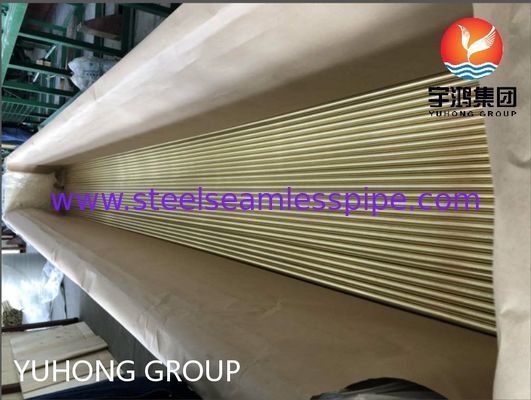

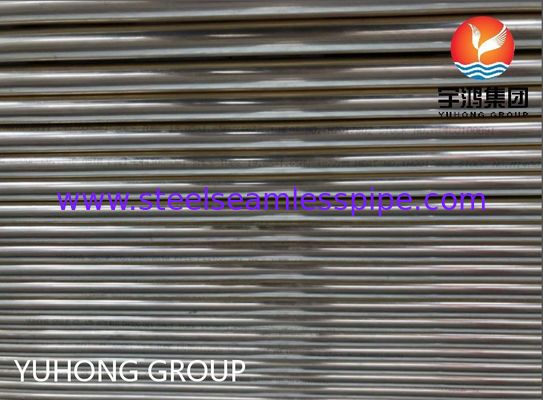

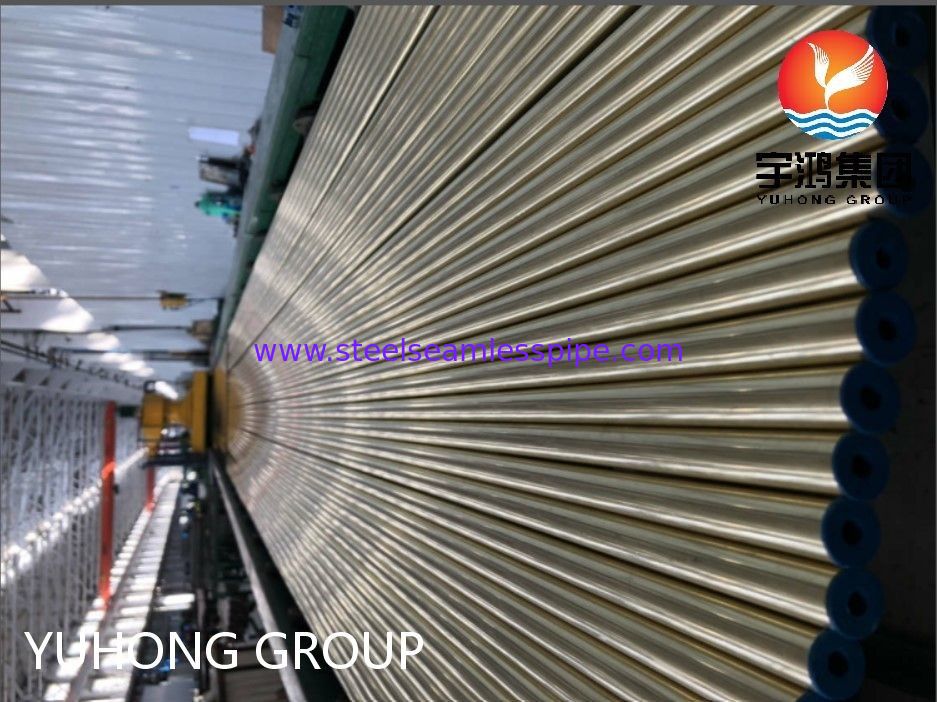

ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications

ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications

  • ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications
  • ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications
  • ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications
  • ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications
ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B111 C44300
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T,L/C
Supply Ability: 1500 Tons Per Month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM, AISI, GB, DIN, JIS Length: Customized
Thickness: Customized Product Name: Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube
Material: Copper Alloy Outer Diameter: 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm
Surface: Annealing, 8K, Polishing Or Unpolishing, Morror/Satin Finish: Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright
Application: Industrial, Automotive, Etc. Color: Customized
Corrosion Resistance: Customized Elongation: Customized
Pressure Resistance: Customized Shape: Tube
Size: Customized Surface Treatment: Polishing, Anodizing, Plating, Etc.
Temperature Resistance: Customized Tensile Strength: Customized
Weldability: Customized
Highlight:

astm b111 seamless copper tube

,

c44300 seamless copper tube

,

admiralty brass copper round tube

ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube
We are a leading manufacturer of stainless steel, duplex steel, and alloy steel pipes with over 20 years of industry experience. Our Yuhong products have earned consistent praise from customers worldwide.
C44300 copper alloy is the ideal choice for heat exchanger tubes, particularly in oil and gas applications where non-corrosive properties are essential. Both C44300 and C68700 alloys offer excellent corrosion resistance. C44300 Brass Seamless Tubes feature a minimum tensile strength of 310 MPa and minimum yield strength of 105 MPa.
Product Specifications
Pipe Specifications: ASTM/ASME SB111 CuZn28Sn1As
Pipe Size: 1/2″ TO 20′ IN, DN15 TO DN500
Outer Diameter: 15mm to 508mm
Wall Thickness: 1mm to 11mm
Length: Standard 6 meters or custom lengths
Schedule: Sch10, Sch40, Sch80, STD
Types: Seamless (≤419mm) / Seam Welded (>419mm)
End Types: Plain End, Beveled End, Threaded
International Standards
Country Standard Name
ASTM ASTM B111 Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
GB/T GB/T8890 Seamless Copper Alloy Heat Exchanger Tubes
BS BS2871 Copper and Copper Alloys Tubes
JIS JIS H3300 Copper and Copper Alloy-Seamless Pipes and Tubes
DIN DIN1785 Wrought Copper and Copper Alloy Tubes for Condensers and Heat Exchangers
Chemical Composition
Grade As Fe Tin Cu Pb Zn
C44300 0.02-0.06 0.06 0.9-1.2 70.0-73.0 0.07 remainder
Mechanical Properties
Properties Metric Imperial
Tensile Strength 331-379 MPa 48000-55000 PSI
Yield Strength 124-152 MPa 18000-22000 PSI
Elongation at Break 65% 65%
Creep Strength 0.370 MPa 53.7 PSI
Charpy Impact 82.4J 60.8 FB-LB
Fatigue Strength 115-125 MPa 16700-18100 PSI
Elastic Modulus 117 GPa 17000 KSI
Poisson's Ratio 0.34 0.34
Machinability 30 30
Shear Modulus 40 GPa 5800 KSI
Applications
Copper pipes are utilized across multiple industries including marine environments, power generation, offshore operations, oil and gas, and defense applications. Drawn copper pipes offer both cold and hot working capabilities, featuring superior seawater corrosion and scouring resistance along with high strength. Typical applications include distillation and desalination plants, marine coolers, and heat exchangers.
Manufactured using vacuum melting technology, our pipes ensure exceptional quality with stable chemical composition, precise dimensions, and clean, smooth, bright inner and outer surfaces. Excellent mechanical properties are guaranteed with no pores, cracks, pinhole leakage, or other defects.
Mechanical Testing
  • Hardness Test
  • Chemical Analysis - Spectro Analysis
  • Positive Material Identification - PMI Testing
  • Flattening Test
  • Micro and Macro Test
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
  • Tensile Test
ASTM B111 C44300 O61 Seamless Copper Tube Brass Copper Round Tube for Heat Exchanger Applications 0
