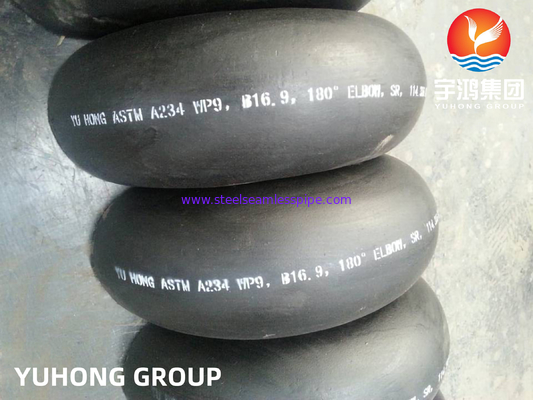

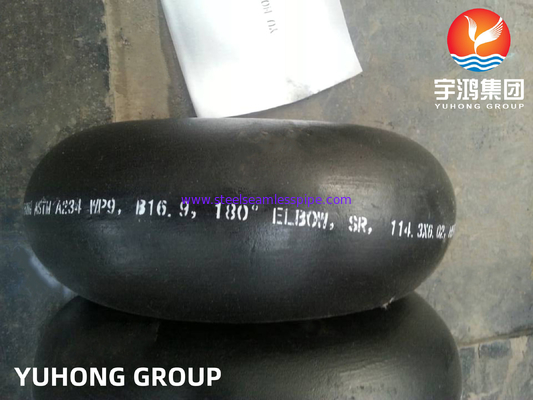

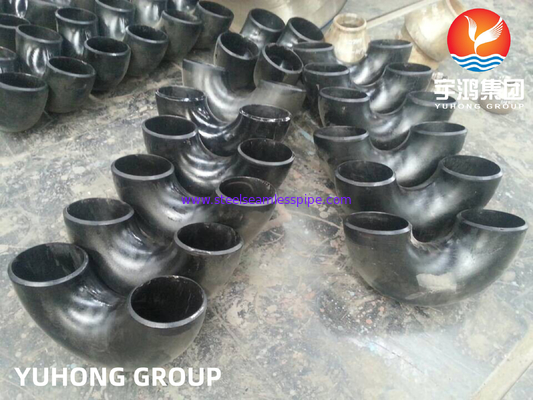

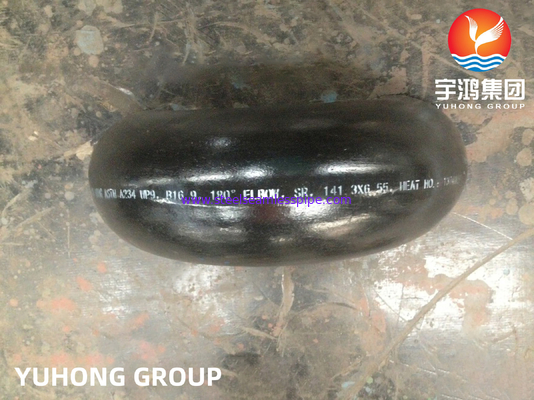

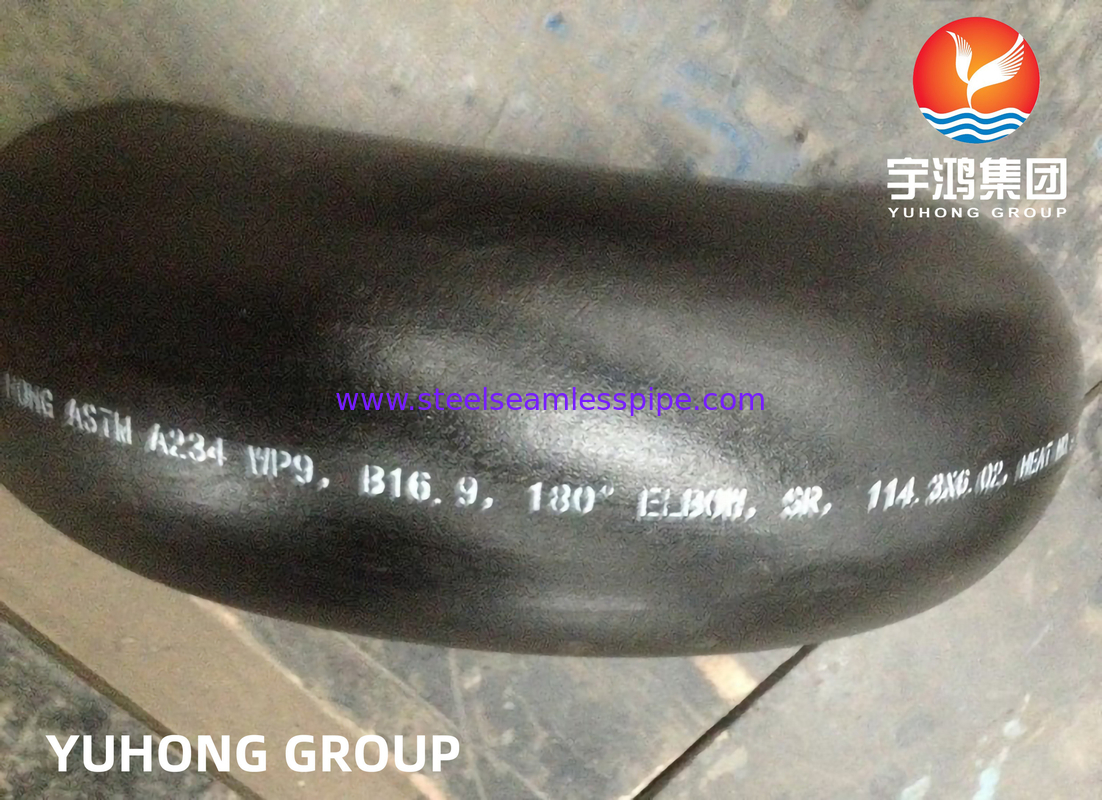

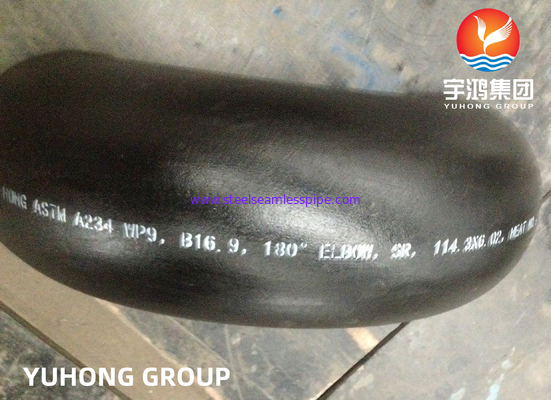

ASTM A234 WP9 180 Degree Return Elbow Alloy Steel Buttweld Fitting

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A234 WP9 180 Degree Return

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	negotiation
Packaging Details:	Plywood case/Pallet
Delivery Time:	according to quantity
Payment Terms:	T/T, L/C
Supply Ability:	500 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Standard:	ASTM A234/ASME SA234	Material:	WP9
Type:	Alloy Steel Buttweld Return	Connection:	Welding
Sizes:	1/2''-48''(DN15-DN1200) Or Custom Size	Thickness:	SCH10S-XXS
Surface:	Black Painting	Packing:	Plywood Case/Pallet
Highlight:	astm a234 wp11 butt weld fitting , astm a234 wp22 butt weld fitting , astm butt weld pipe fittings

ASTM A234 WP9 180 Degree Return Elbow Alloy Steel Buttweld Fitting

Name: ASTM A234 WP9 180 Degree Return Elbow Alloy Steel Buttweld Fitting
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A234 WP9 180 Degree Return
Price: 100000.00 USD
Availability: InStock

Overview:

ASTM A234 WP9 is a standard specification for the wrought carbon steel and alloy steel fittings that are made for the medium and high-temperature service. The WP9 return fitting is a part of this specification and is designed to be used in piping systems where the flow direction needs to be reversed.

The WP9 return is commonly used in applications where process piping systems require flow reversal for operational or ety reasons. This fitting can be installed in any position within the piping system, and it is designed to provide a cost-effective solution for piping systems that require frequent or occasional flow reversal.

The WP9 return fitting is made from high-quality materials to ensure its durability and long-lasting performance. It is available in various sizes and shapes, and it can be customized to meet specific application requirements. Overall, the ASTM A234 WP9 return fitting is an essential part of many industries and is known for its reliability, functionality, and ease of installation.

Specification:

Standard	ASTM A234 & Its equivalent ASME, DIN & EN Standard.
Grades	WP9
Size	1/2''-48'' or custom size
Wall Thickness	SCH10S to SCH.XXS
Radius	SR LR
End	Beveled End
Surface	Black Painting
Packing	Plywood case/Pallet

Chemical Composition:

Grade	C	Mn	P	S	Si	Cr	Mo
WP9	0.15 max	0.30-0.60	0.03 max	0.03 max	1.00 max	8.0-10.0	0.90-1.10

Mechanical Properties:

Grade	Tensile Strength min, ksi (MPa)	Yield Strength min, ksi (MPa)	Elongation in 2 in. or 50mm, min (%)

WP9 CL1	60(415)	30(205)	22
WP9 CL3	75(520)	45(310)	22

Dimension:


Nominal Size		Outside Diameter at Bevel (mm)	Center to Center		Back to Face
Nominal Size		Outside Diameter at Bevel (mm)	180° Returns
DN	NPS	O.D.	O		K
DN	NPS	O.D.	LR	SR	LR	SR
15	1/2	21.3	76	-	48	-
20	3/4	26.7	76	-	51	-
25	1	33.4	76	51	56	41
32	1 1/4	42.2	95	64	70	52
40	1 1/2	48.3	114	76	83	62
50	2	60.3	152	102	106	81
65	2 1/2	73.0	190	127	132	100
80	3	88.9	229	152	159	121
90	3 1/2	101.6	267	178	184	140
100	4	114.3	305	203	210	159
125	5	141.3	381	254	262	197
150	6	168.3	457	305	313	237
200	8	219.1	610	406	414	313
250	10	273.0	762	508	518	391
300	12	323.8	914	609	619	467
350	14	355.6	1067	711	711	533
400	16	406.4	1219	813	813	610
450	18	457.0	1372	914	914	686
500	20	508.0	1524	1016	1016	762
550	22	559.0	1676	1118	1118	838
600	24	610.0	1829	1219	1219	914
650	26	660.0	-	-	-	-
700	28	711.0	-	-	-	-
750	30	762.0	-	-	-	-
800	32	813.0	-	-	-	-
850	34	864.0	-	-	-	-
900	36	914.0	-	-	-	-
950	38	965.0	-	-	-	-
1000	40	1016.0	-	-	-	-
1050	42	1067.0	-	-	-	-
1100	44	1118.0	-	-	-	-
1150	46	1168.0	-	-	-	-
1200	48	1219.0	-	-	-	-
