ASTM A213 / ASME SA213 T9 U Bend Tube Alloy Steel Seamless Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 T9 Alloy Steel U Bend Tube

Payment & Shipping Terms:

Minimum Order Quantity:	500kgs
Packaging Details:	Ply-wooden Case /Iron Case
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (278)

Stainless Steel Seamless Tube (267)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (91)

Fin Tube (605)

Heat Exchanger (10)

Heat Exchanger Tube (421)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (211)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (787)

Steel Flange (576)

Others (384)

Detailed Product Description

Product Name:	Alloy Steel U Bend Tube	Standard:	ASTM A213/ASME SA213
Material Grade:	Alloy Steel T5/T9/T11/T22, Stainless Steel 304/304L/316L	O.D.:	1/4" 3/8" 1/2" 5/8" 3/4" 1", ECT.
W.T.:	BWG 25, 22, 20 18, 16, 14, 12	Length:	Single, Random
Technique:	Cold Rolled And Cold Drawn	NDT:	HT, ET, UT , PT
Application:	Boiler Tube Oil / Gas Drilling, Chemical Industry, Etc.
Highlight:	asme sa213 t9 u bend tube , heat exchanger t9 u bend tube , astm a213 steel seamless tubing

ASTM A213 / ASME SA213 T9 Alloy Steel Seamless Tube U Bend Tube for Heat Exchanger

Grade T9 and P9 alloy steel tube and pipe are included in ASTM or ASME suited for boiler superheater, reheater pipe, header and steam pipe under 600℃ in high pressure, ultra-high pressure and subcritical power station, nuclear power heat exchanger and oil cracking unit furnace pipe.

Both of them contain 9-Chromium-1 Molybdenum alloy, which offers very good corrosion resistance and oxidation resistance with good high-temperature strength. Grade T9 specified in ASTM A213 which does Ferrite and Austenitic boiler superheater and heat exchanger seamless steel tube.

Equivalent Material of ASTM A213 T9 Alloy Steel Seamless Tube Heat Exchanger Tube

UNS	ASTM	EN	DIN	JIS	GB
K50400	P9	12Cr9Mo	X12CrMo91	STBA26	/

Mechanical Property of ASTM A213 T9 Alloy Steel Seamless Tube Heat Exchanger Tube

Steel Grade	Tensile Strength, Mpa	Yield Strength, Mpa	Elongation, %
ASTM A213 T5	Min: 415	Min: 205	Min: 30
ASTM A213 T9	Min: 415	Min: 205	Min: 30
ASTM A213 T11	Min: 415	Min: 205	Min: 30
ASTM A213 T12	Min: 415	Min: 205	Min: 30
ASTM A213 T22	Min: 415	Min: 205	Min: 30
ASTM A213 T91	Min: 415	Min: 415	Min: 20

Chemical Composition of ASTM A213 T9 Alloy Steel Seamless Tube Heat Exchanger Tube

Steel Grade
Steel Grade	C	Mn	P	S	Si	Cr	Mo	V
ASTM A213 T5	Max: 0.15	0.30 - 0.60	Max: 0.025	Max: 0.025	Max: 0.50	4.00 - 6.00	0.45 - 0.65	--
ASTM A213 T9	Max: 0.15	0.30 - 0.60	Max: 0.025	Max: 0.025	0.25 - 1.00	8.00 - 10.00	0.90 - 1.10	--
ASTM A213 T11	0.05 - 0.15	0.30 - 0.60	Max: 0.025	Max: 0.025	0.50 - 1.00	1.00 - 1.50	0.44 -0.65	--
ASTM A213 T12	0.05 - 0.15	0.30 - 0.61	Max: 0.025	Max: 0.025	Max: 0.50	0.80 - 1.25	0.44 - 0.65	--
ASTM A213 T22	0.05 - 0.15	0.30 - 0.60	Max: 0.025	Max: 0.025	Max: 0.50	1.90 - 2.60	0.87 - 1.13	--
ASTM A213 T91	0.08 - 0.12	0.30 - 0.60	Max: 0.020	Max: 0.010	0.20 - 0.50	8.00 - 9.50	0.85 - 1.05	0.18 - 0.25
ASTM A213 T91	Cb: 0.06 - 0.1	N: 0.030 - 0.070	Ni: Max: 0.40	Al: Max0.04	Ti: Max: 0.01	Zr: Max 0.01

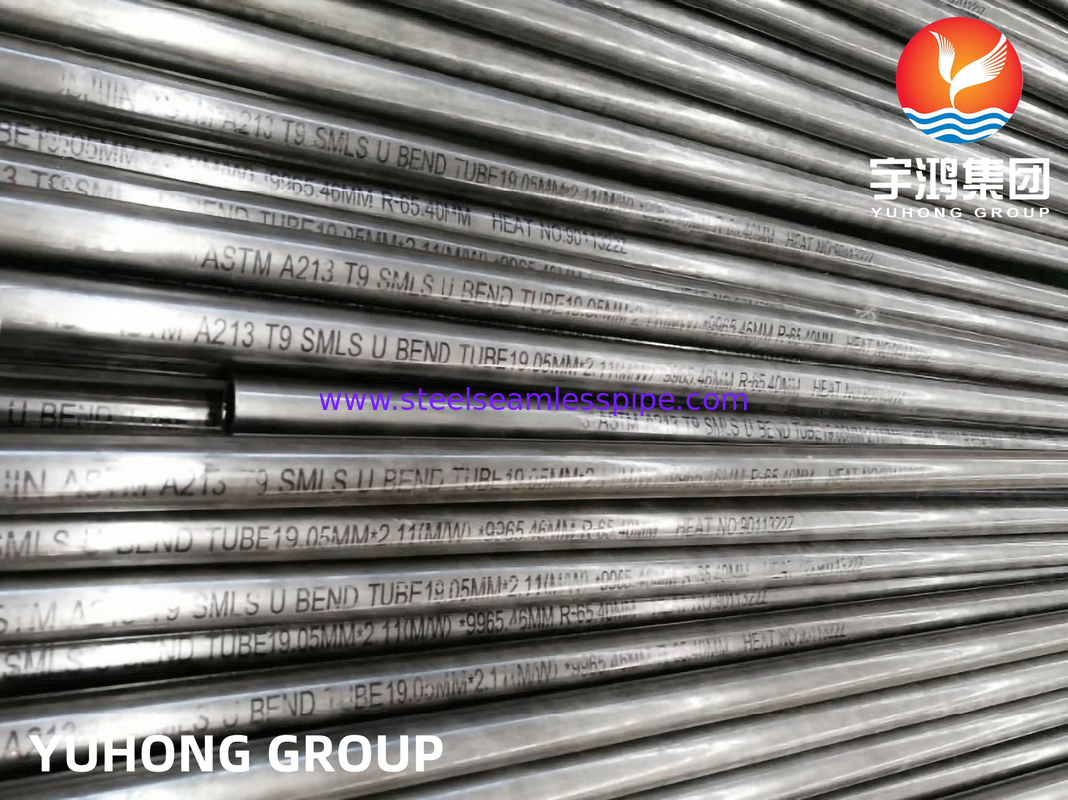

Alloy Steel U Bend Tubes

Purpose: Accommodate thermal expansion in shell-and-tube heat exchangers, reducing stress on tubesheet connections.

Bending Process:
- Methods: Cold bending or induction bending.
- Challenges: Minimize wall thinning, ovality, and residual stresses.
- Post-Bending Heat Treatment: Stress relieving (e.g., 650–700°C) to restore properties.
