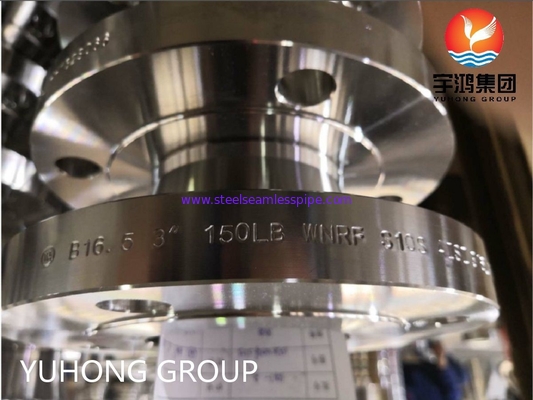

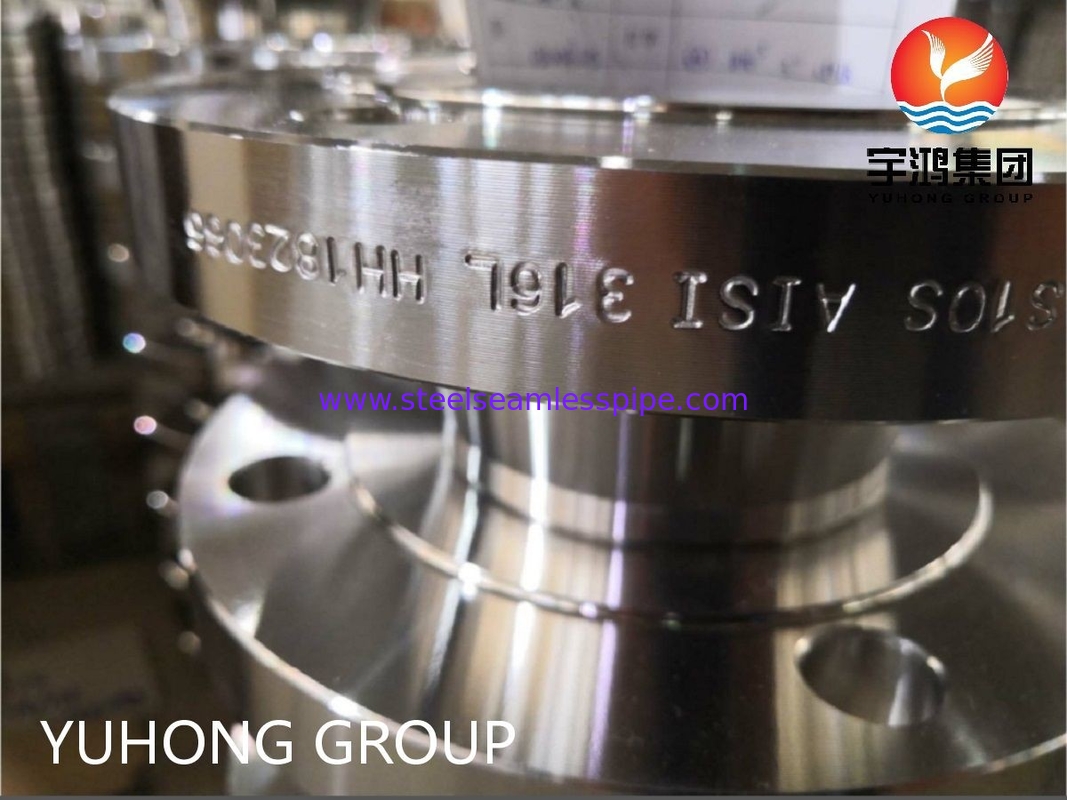

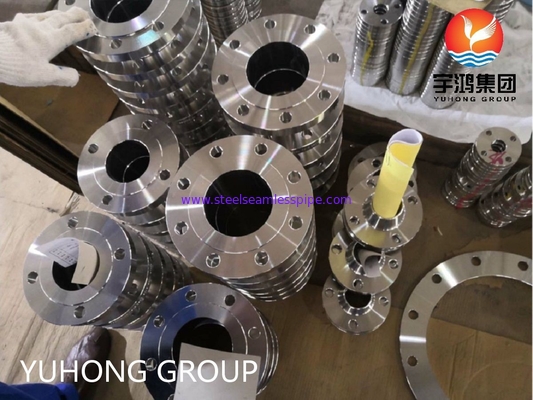

ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face

ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face

  • ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face
  • ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face
  • ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face
  • ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face
ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A182 F316L
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons Per Month
Contact Now
Detailed Product Description
Standard: DIN, ANSI, ISO, ASME, JIS Size: 15mm-6000mm, STD, 1/2"-120", DN 10-DN3000
Material: Stainless Steel, Alloy Steel, Carbon Steel, Duplex Product Name: Long Welding Neck Flange, Pipe Flange, Hydraulic Flange, Stainless Steel Flange
Application: Petroleum, Chemical, Fittings And Connection, Beer, Etc. Pressure: Class 150/300/600/900/1500/2500, PN 2.5/6/10/16/25/40, 0-63MPa, 150LB-2500LB
Type: Treaded Flange, Slip On Flange, Socket Weld Flange, Weld Neck Flange, Lap Joint Flange Name: DIN 2573 2543 GOST Stainless Steel Pipe Slip On Flange PN16, ANSI B16.5 150LB Weld Neck Carbon Steel Pipe Flanges, ANSI B16.5 2 Inch Pipe Carbon Steel Flange Class125, Stainless Steel Pipe Fittings
Process: Forged, Drilling/Bending/Stamping, Casting, Heating Treament Surface Treatment: Heat Treament, Pickeling, Galvanized, Customize
Inspection: Mechinical Property Inspection, Factory Or Third Party Assigned, 100% Inspection Connection: Welding, Pipe And Pipe, Flange
High Light:

b16.5 forged stainless steel flange

,

150lb forged stainless steel flange

,

astm a182 f316l forged stainless flanges

ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face



We are one of the largest engineering piping product suppliers in China, our products include steel pipes/pipes, pipe fittings, flanges. After more than 20 years of development, we have accumulated many customers all over the world, and Yuhong products have also won unanimous praise from customers.



Specifications Stainless Steel 316L Flanges
ASME B16.5 Stainless Steel 316L Flanges size range 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Stainless Steel 316L Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges.
Stainless Steel 316L Flanges Standard DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
Stainless Steel 316L Flanges Standard ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Stainless Steel 316L Flanges Standard UNI 6Bar 10Bar 16Bar 25Bar 40Bar
Stainless Steel 316L Flanges Standard JIS 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
Stainless Steel 316L Flanges Standard EN 6Bar 10Bar 16Bar 25Bar 40Bar
Main Types Forged / Threaded / Screwed / Plate
Flange supporting material Gasket, Ring Joint, Flange Bolts
Stainless Steel 316L Pipe Flanges Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique Forged, Heat treated and machined
Connect Type/ Flange Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove
Most common types of Stainless Steel 316L Flanges Lap Joint Ring Flange (LJRF), Stainless Steel 316L Flanges
Socket Weld Ring Flange (SWRF), Stainless Steel 316L Flanges
Slip-On Ring Flange (SORF), Stainless Steel 316L Flanges
Blind Ring Flange (BLRF), Stainless Steel 316L Flanges
Threaded Ring Flange, Stainless Steel 316L Flanges
Ring Type Joint Flange (RTJF), Stainless Steel 316L Flanges
Weld Neck Ring Flange (WNRF), Stainless Steel 316L Flanges
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Origin Indian / West Europe / Japan / USA / Korean
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Stainless Steel 316L Flanges Standard ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange, ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE,
BS Flange, EN Flange, API 6A Flange etc
B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British standard (BS)
Any other specilised flanges
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276
Key markets and industries for Stainless Steel 316L Flanges Nuclear power (mostly seamless).
Petrochemicals and acids.
Bitumen upgraders.
Heavy oil refineries.
Stainless Steel 316L Flanges Application To Connect Pipe & Tubes in Petroleum, Power, Gas, Metallurgy, Shipbuilding Construction, Chemical etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

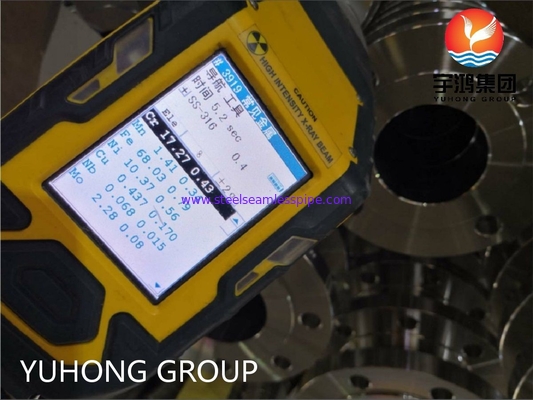

A182 F316L Flanfes Chemical Composition:

C Mn Si P S Cr Mo Ni Ti Fe
0.0-0.07 0.0-2.0 0.0-1.0 0.0-0.05 0.0-0.02 16.5-18.5 2.00-2.5 10..-13.00 - balance



A182 F316L Flanfes Mechanical Properties:

Grade Tensile Str(Mpa) min Yield Str 0.2% Proof(Mpa) min Elong(% in 50mm) min Hardness
Rockwell B max Brinell max
316L 485 170 40 95 217



Grade 316L, a low carbon version of the F316L pipe flange, is resistant to sensitization, also known as grain boundary carbide precipitation. As a result, Gr F316L is widely used for heavy-duty welded components with wall thicknesses over 6 mm. The austenitic structure in astm a182 f316l also gives this grade excellent toughness properties, which can be observed at low temperatures.



Compared to other chromium-nickel austenitic stainless steels, A182 F316L stainless steel has higher creep strength, stress rupture strength and tensile strength even at elevated temperatures. ss 316L flanges provide excellent performance in a wide range of atmospheric environments and in many corrosive media.



In general, werkstoff A182 F316L tends to be more resistant to corrosive media than grade 304 stainless steel. Although these stainless steel 316L flanges are subject to pitting and crevice corrosion in warm chloride environments and stress-related corrosion cracking at temperatures above 60 °C, the sa 182 F316L flanges are considered potable water resistant of. astm A182 Gr F316L has shown corrosion resistance in drinking water, holding up to about 1000 mg/L of chloride at ambient temperature and further reducing to about 500 mg/L at 60 °C.



Flange ASTM A182 F316L is generally considered to be the standard "Marine Grade Stainless Steel". But astm A182 grade F316L is not resistant to warm sea water. 316l stainless steel flange material does tend to exhibit surface corrosion in many marine environments. This surface corrosion usually manifests as brown staining, especially in relation to cracks and rough surface finish.



316L stainless steel flanges exhibit good oxidation resistance in intermittent applications up to 870 °C and continuous duty up to 925 °C. Continuous use of flange astm A182 f316l in the temperature range 425 °C - 860 °C is not recommended if subsequent water corrosion resistance is important in any application. Many 316L stainless steel flange manufacturers state that this alloy is more resistant to carbide precipitation and can be used in the above temperature range.



ASTM A182 F316L Stainless Steel Forged Flange B16.5 150LB SCH10S Welding Neck Raised Face 0
