Yuhong Holding Group Co.,LTD
|Place of Origin:||China , USA, UK|
|Model Number:||DIN 2502, 2503, 2527, 2565,2573,2627,2629,2631,2632,2633,2634, 2635, 2637, 2641, 2642, 2655,|
|Minimum Order Quantity:||1PC|
|Packaging Details:||PLY-WOODEN CASE|
|Payment Terms:||T/T , LC|
|Supply Ability:||100 TONS PER MONTH|
|Standard:||DIN 2502, 2503, 2527, 2565,2573,2627,2629,2631,2632,2633,2634, 2635, 2637, 2641, 2642, 2655, 86030||Designs:||Butt Weld,Socket Weld,Captive,Split,Square,Round,Rectangle Etc.|
|Applications:||UHV Applications,Hydraulic Control Systems For Turbine Generators,High Pressure Ground Support Missi|
forged steel flanges,
carbon steel flanges

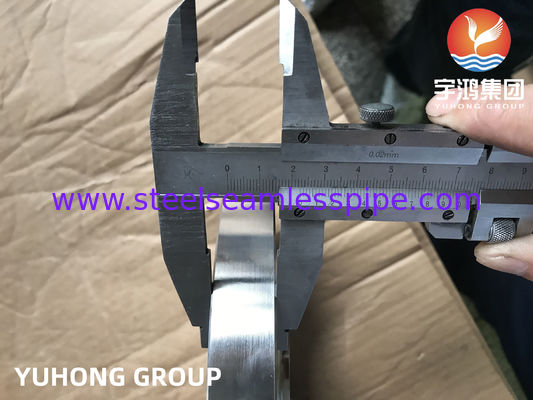

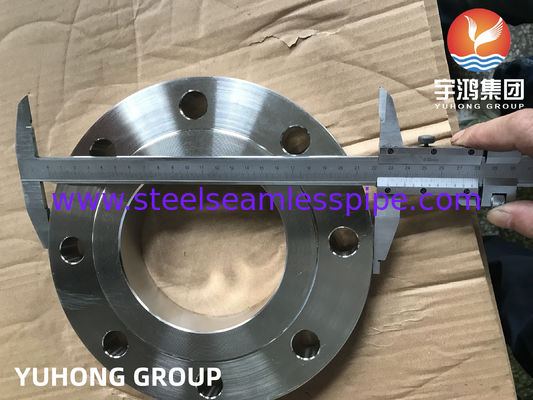

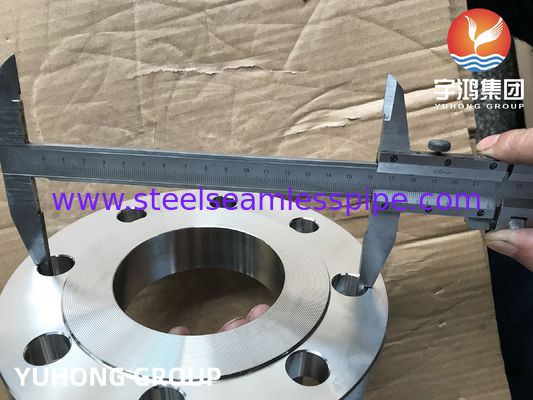

F316L Standard Steel Slip On RF Flanges ASTM A182/ASME SA182
What is F316L SO RF Flange
F316L refers to the grade of stainless steel used in the manufacturing of the flange. It is a low carbon version of F316 stainless steel, which contains a higher amount of chromium and nickel, making it more resistant to corrosion and suitable for use in corrosive environments.
SO RF (Socket Weld Raised Face) is a type of flange connection. The socket weld refers to the welding method used to connect the flange to the pipe. It involves inserting the pipe into the socket of the flange and applying fillet weld around the socket. The raised face refers to the raised surface on the flange face that provides a sealing surface when compressed against a gasket.
Overall, F316L SO RF flange is a stainless steel flange made from grade F316L steel, featuring a socket weld connection and a raised face for sealing purposes.
The Advantage of F316L SO RF Flange
Designs of flanges:
A wide variety of flange designs are available. They are available in various shapes and sizes. Some of the popular designs are as follows:
Custom shapes and sizes are also manufactured by numerous manufacturers. Various pipe flanges include machining details such as gasket surfaces, facing details, non-standard drilling, bevel and radius edges, o-ring grooves and raised or recessed faces. Some typical designs on flanges faces are shown below.
|Counter Bore||O-Ring Groove|
Applications of pipe flanges
F316L SO RF flanges are commonly used in applications that require a secure and leak-free connection between piping systems. Some of the typical applications of F316L SO RF flanges include:
|DIN 2502||DIN 2503||DIN 2527|
|DIN 2565 / 2566||DIN 2573 / 2576||DIN 2627 / 2628|
|DIN 2629 / 2630||DIN 2631||DIN 2632|
|DIN 2633||DIN 2634||DIN 2635 / 2636|
|DIN 2637 / 2638||DIN 2641||DIN 2642|
|DIN 2655 / 2656||DIN 86029 / 86030|
